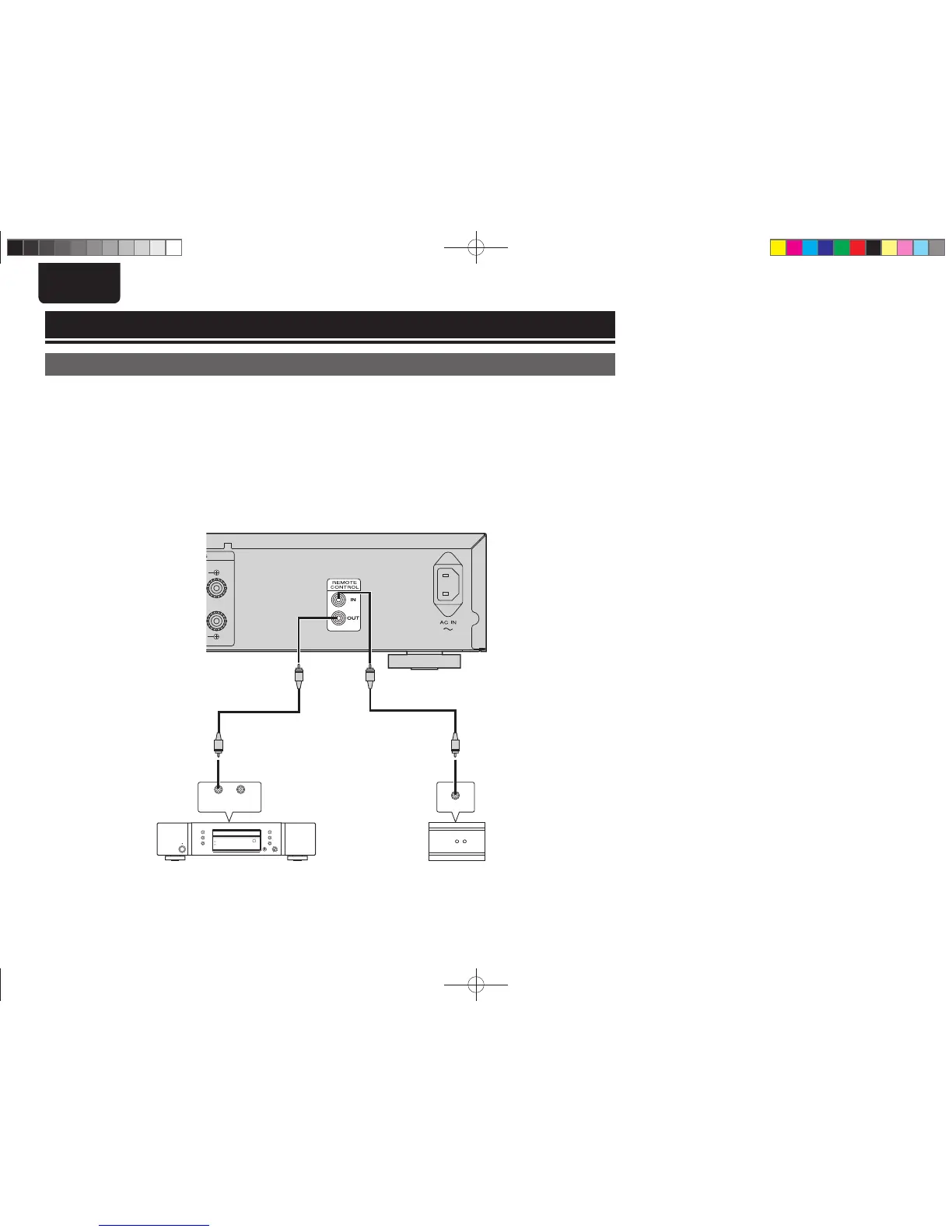

Connecting the remote control jacks
When you use this unit connected to Marantz audio components, it sends control signals to operate each component.
n Connection
Use the remote connection cable (supplied with a Marantz audio component you want to connect) to connect the REMOTE CONTROL OUT
terminal of this unit to the REMOTE CONTROL IN terminal of the component to be connected.
n Setting
Set the remote control switch located on the rear panel of the connected audio component to “EXTERNAL” or “EXT.” to use this feature.
• This setting will disable remote sensor reception of the connected audio component.
• To operate the connected audio component, point the remote control at the remote sensor of this unit.
Advanced connections
3&.05&$0/530-
*/
065
3$065
CD player Option unit
(such as remote control receiver unit)
OUTPUT
INPUT
