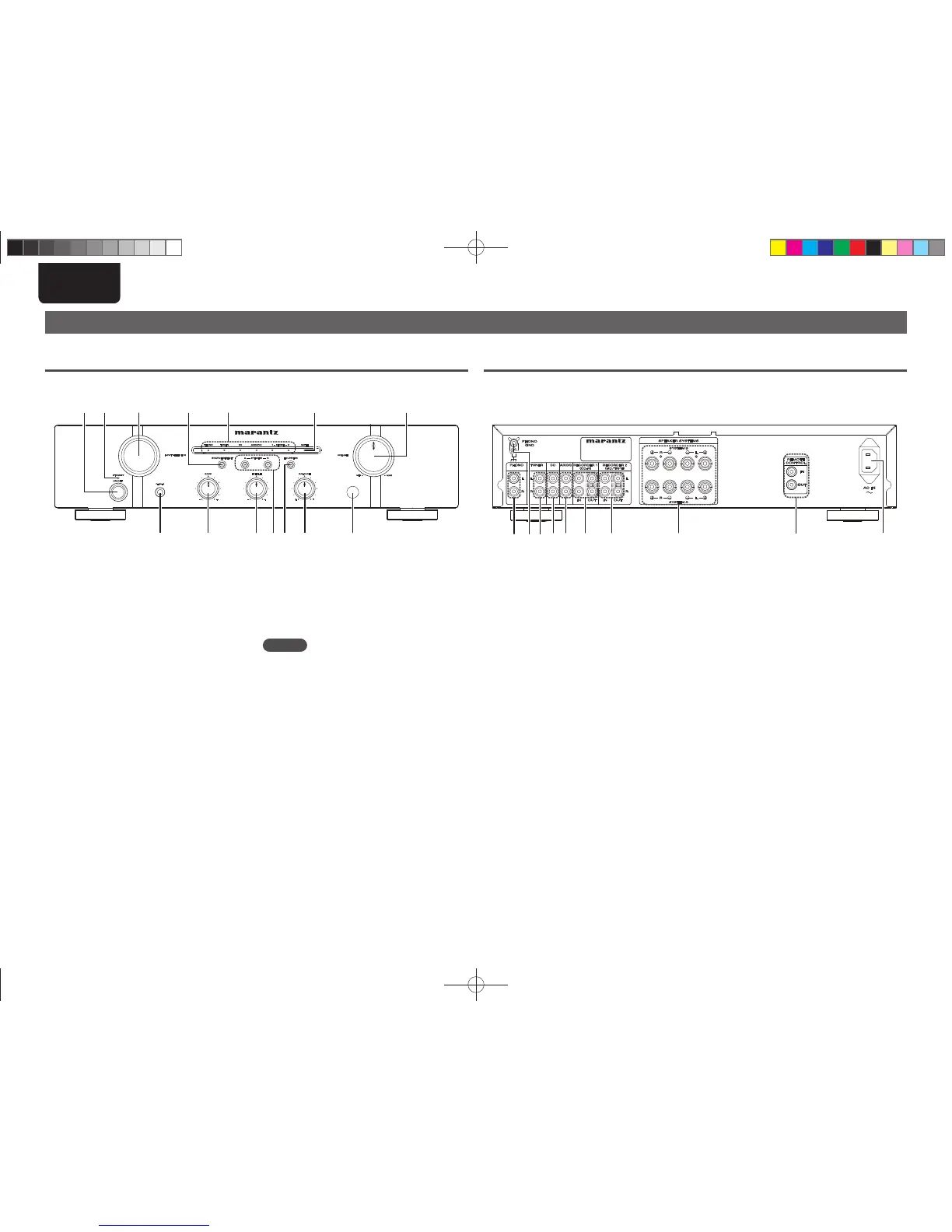

4
ENGLISH
qw e r t y
oQ0Q1Q2Q3Q4
u
i
q Power switch (ON/OFF) ······························· (8)
w Power indicator (STANDBY) ······················· (8)
Indicates the status of the unit’s as follows:
Power “ON” : Off
When the protection circuit is activated :
Red (blinking) .............................................. (6)
Standby : Red
Power “OFF” : Off
e INPUT SELECTOR knob ······························· (9)
r SOURCE DIRECT switch/indicator ············· (9)
t Input indicators ············································ (8)
y MUTE indicator (MUTE) ······························· (9)
u VOLUME control knob ····························· (8, 9)
i Remote control sensor ························ (10, 11)
o BALANCE control knob ···························· (8, 9)
Q0 LOUDNESS switch/indicator ······················ (9)
Q1 SPEAKERS A/B switch/indicators ·············· (9)
Q2 TREBLE control knob ······························· (8, 9)
Q3 BASS control knob ··································· (8, 9)
Q4 Headphone jack (PHONES) ·························· (9)
NOTE
You can adjust the o BALANCE, Q2 TREBLE, and
Q3 BASS control knobs only when r SOURCE
DIRECT switch is turned off.
Part names and functions
For buttons not explained here, see the page indicated in parentheses ( ).
Front panel
q PHONO input connectors ···························· (7)
w PHONO GND terminal ·································· (7)
e TUNER input connectors ····························· (7)
r CD input connectors ···································· (7)
t AUX/DVD input connectors ························ (7)
y RECORDER 1 (CD-R)
input/output connectors ····························· (7)
Rear panel
qw
ert y u i
oQ0
u RECORDER 2 (MD/TAPE)
input/output connectors ····························· (7)
i Speaker system terminals
(SPEAKER SYSTEMS) ······························ (6, 7)
o REMOTE CONTROL
input/output jacks ······································ (10)
Q0 AC inlet (AC IN) ············································· (8)
1.PM5004NENG校了.inddSec1:41.PM5004NENG校了.inddSec1:4 2010/05/2020:24:452010/05/2020:24:45
