Getting started
Basic operation Troubleshooting Specifi cations IndexAdvanced connections Advanced operation Explanation terms
ENGLISH

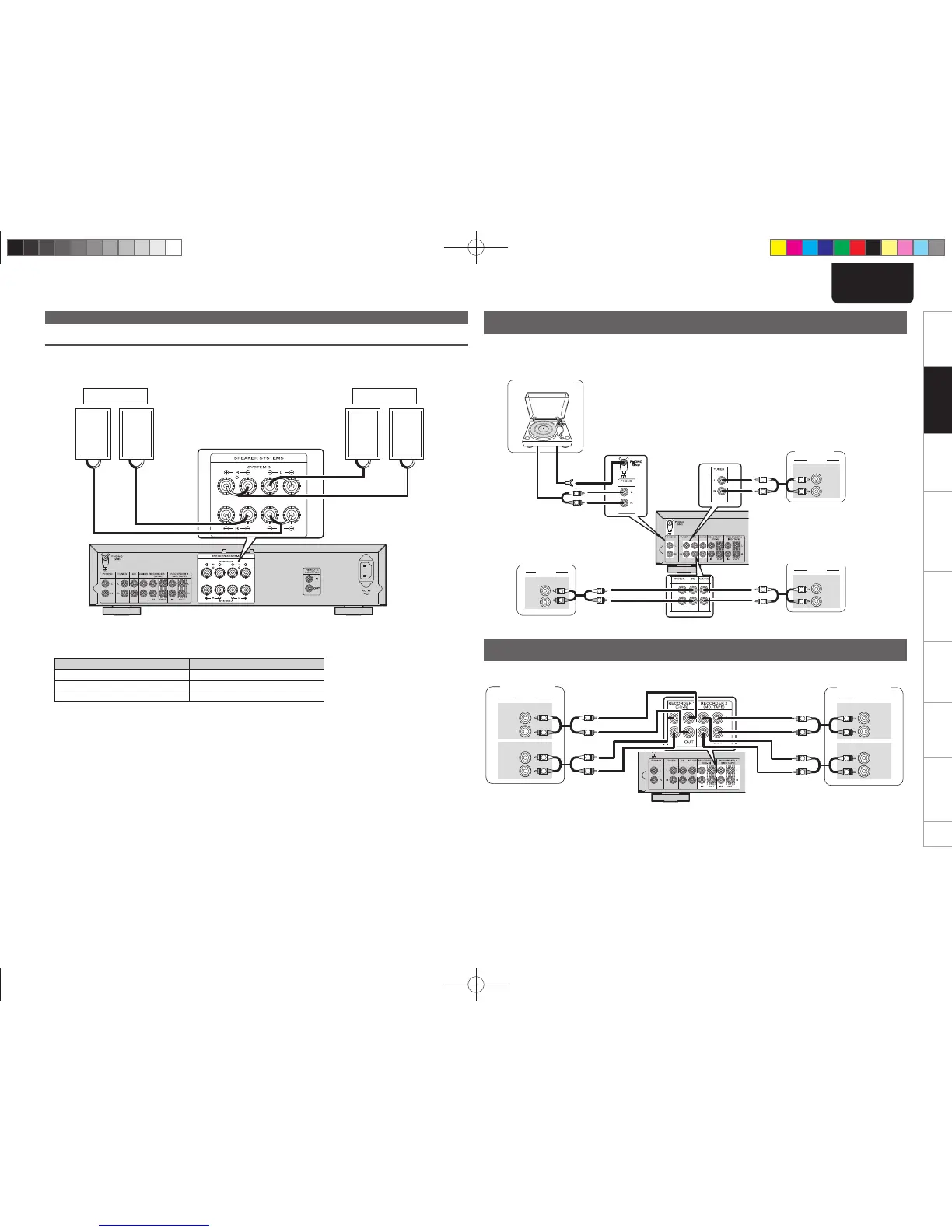

Basic connections
Connecting the speakers
Speaker connections
• The same signal is output from the SPEAKERS A and B terminals.
• When only one set of speakers is to be connected, use either the SYSTEM A or B terminals.
wqwq
(R) (L)
wqwq
(R) (L)
Speakers A Speakers B
n Speaker impedance
Use speakers with impedances within the ranges shown below to suit how they are used.
Speakers used Impedance
A 4 - 16 Ω
B 4 - 16 Ω
A and B 8 - 16 Ω
Connecting recorders
3
-
"6%*0065
3
-
"6%*0
3
-
"6%*0065
3
-
"6%*0
"6%*0*/
"6%*0*/
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
Recorder-1
Recorder-2
Connecting players
A turntable with an MM type cartridge can be connected to this unit. To use an MC cartridge, please
install a step-up transformer.
• If humming or other noise is generated when the ground wire is connected, disconnect it.
AUDIO OUT
R
L
AUDIO
AUDIO OUT
R
L
AUDIO
AUDIO OUT
R
L
AUDIO
GND
AUDIO
OUT
R
L
R
L
R
L
R
L
R
L
R
L
R
L
CD player
Tuner
Turntable
BD player
Connect the ground wire from your turntable here.
