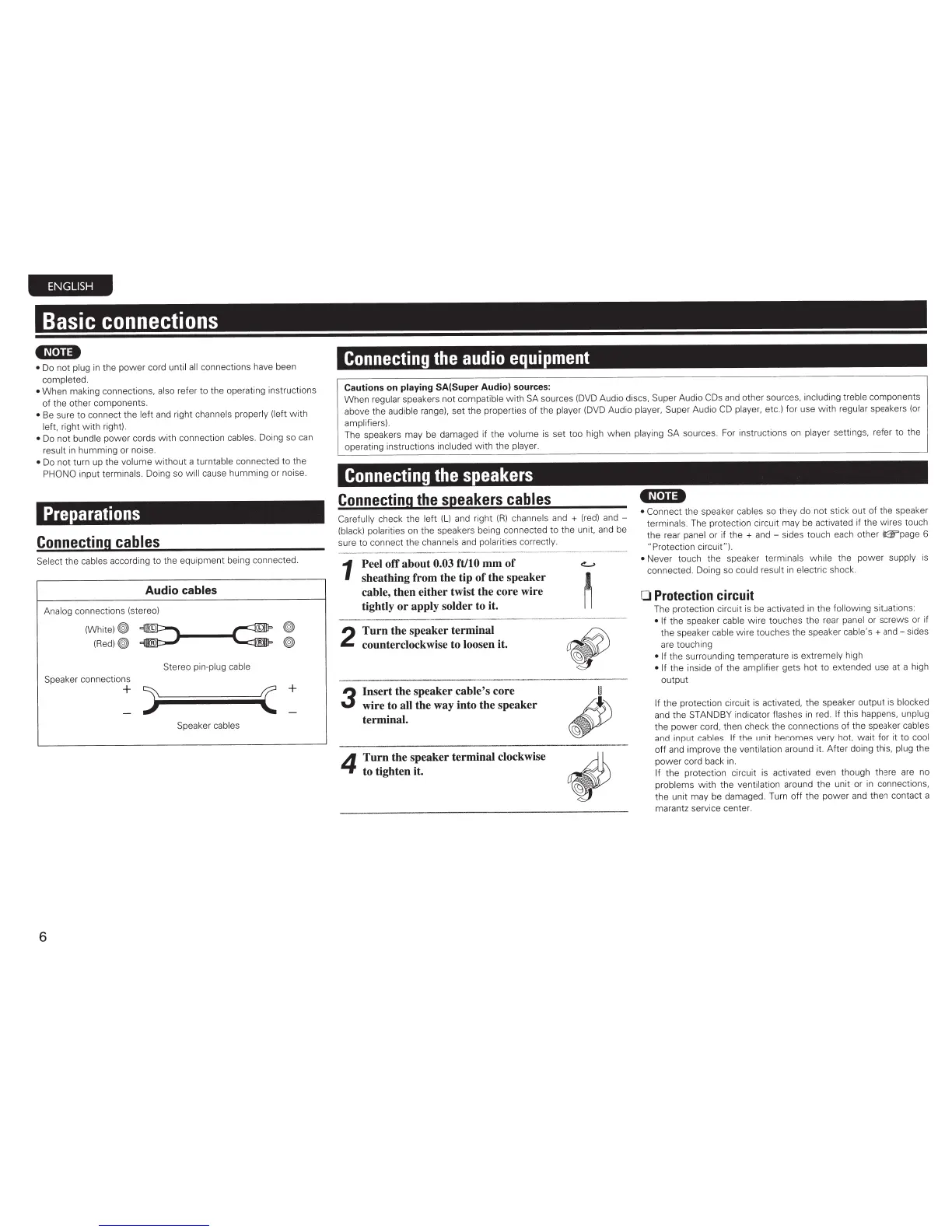

ENGLISH
Basic
connections
•~!·u•
• Do
not
plug
in
the
power
cord
until all
connections have been
completed.
•
When
making connections,
also
refer
to
the operating instructions
of the
other
components.
•
Be sure
to
connect the
left
and right channels properly (left
with
left,
right w ith right).
•
Do
not
bundle
power
cords
with
connection
cables.
Doing so can
result
in
humming
or noise.
• Do
not
turn up the
volume
without
a
turntable
connected to
the
PHONO
input
terminals.
Doing so
wil
l
cause
humming
or noise.
Preparations
Connecting
cables
Select
the cables according
to
the
equipment
being connected.
Audio
cables
Analog
connections (stereo)
(
White)
~
(Red)~
Speaker connections
+
6
Stereo
pin-plug cable
Speaker
cables
+
Connecting
the
audio
equipment
Cautions on
playing
SA(Super Audio) sources:
When
regular speakers
not
compatible
with
SA sources (DVD Audio
discs, Super Audio
COs and
other
sources, including treble
components
above the
audible
range).
set
the
properties
of
the
player
(DVD Audio player,
Super Audio
CD
player,
etc.) for use
with
regular
speakers
(o
r
amplifiers).
The speakers may be damaged if
the
volume
is set
too
high
when
playing
SA sources. For instructions on
player settings, refer to the
operating instructions
included
with
the
player.
Connecting
the
speakers
Connecting
the
speakers
cables
Carefully
check the left
(L)
and right
(R)
channels
and + (red) and -
(black) polarities
on the speakers being connected
to
the
unit
and be
sure to connect the
channels
and polarities correctl
y.
1
Peel
off
about 0.03
ft/1
0
mm
of
sheathing from the tip
of
the speaker
cable, then either twist the core wire
2
3
4
tightly or apply solder to it.
Turn the speaker terminal
counterclockwise to loosen it.
Insert the speaker cable's core
wire to all the way into the speaker
terminal.
Turn the speaker terminal clockwise
to tighten it.
•n·n•
• Connect
the speaker cables
so
they
do
not
stick out
of
the speaker
terminals. The protection circuit may
be activated if
the
wi
res touch
the rear
panel
or
if the + and - sides touch each
other
(&page
6
"Protection
circuit").
• Never touch
the
speaker
terminals wh1le
the
powe
r
supply
is
connected. Doing so
could result
in
electric
shock.
0
Protection
circuit
The protection circuit
is
be activated
in
the
following
situations:
• If
the speaker
cable
wire
touches
the rear
panel
or
screws
or if
the
speaker cable
wire
touches the speaker
cable's
+and-
sides
are touching
• If
the surrounding temperature
1s
extremely
high
• If
the inside
of
the
amplifier
gets hot
to
extended use at a high
output
If
the
protection circUit
is
activated,
the
speaker
output
is
blocked
and
the
STANDBY indicator
flashes
in
red.
If
this
happens, unplug
the
power
cord,
then check
the
connections
of
the speaker
cables
and input
cables. If
the unit
becomes
very
hot,
wait
for it
to
cool
off
and
imp
rove
the
ventilation
around it.
After
doing
this, plug
the
power
cord back in.
If
the
protection circuit is activated even though there are no
problems
with
the
ventilation
around
the
unit or
in
connections,
the
unit may be damaged. Turn
off
the
power
and then contact a
marantz service center.
