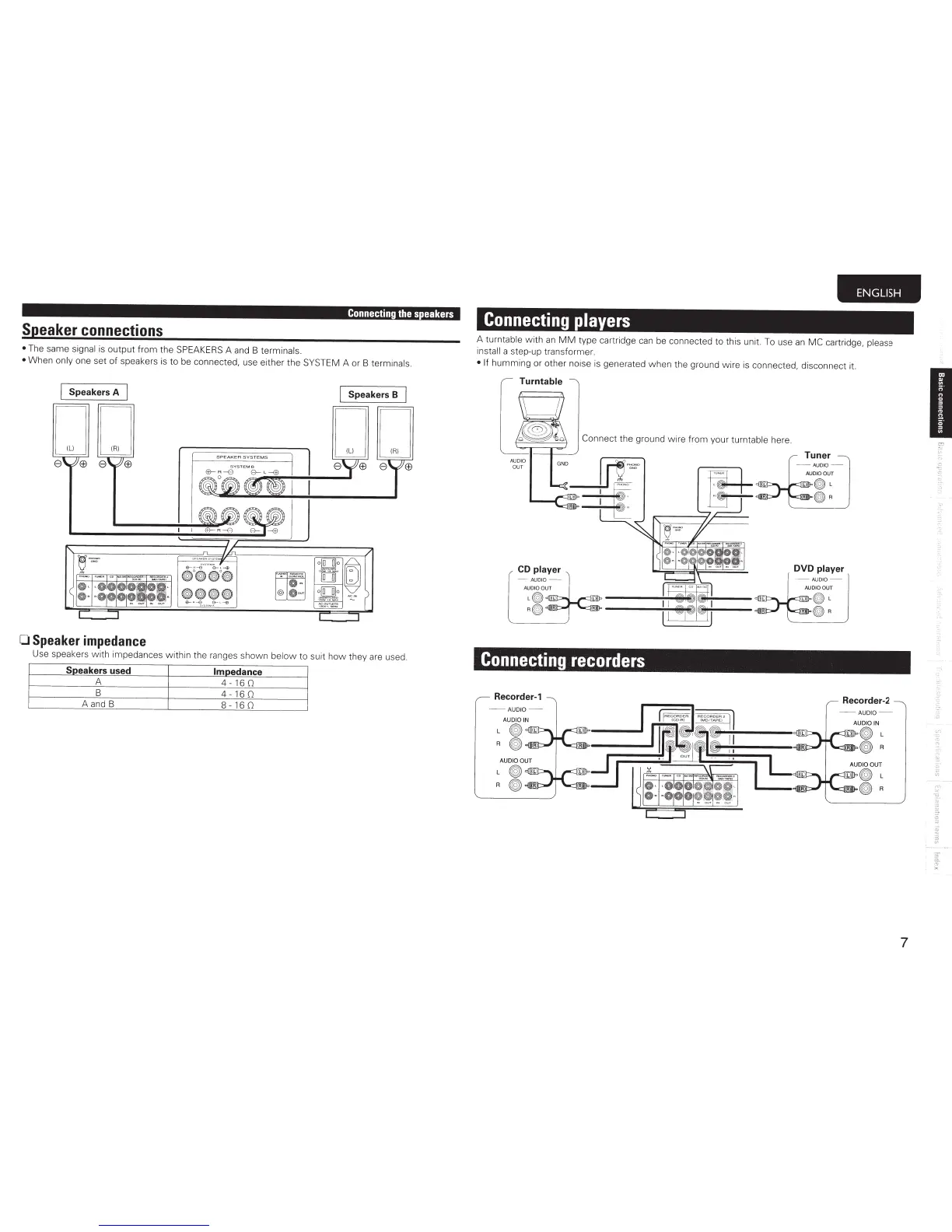

Marantz PM6004 User Manual

Connecting
the
speakers
Speaker
connections
•
The same
si
g
na
l
is
o
ut
put
from the
SPE
AK
ER
S
A
and B terminals.
•
When only one set
of
speakers is to be connected, use either the
S
YS
TE
M A or B terminals.
0
Speaker
impedance
<il@
'@'i
@i.l@i.l@i.l@i.l
e-
~~.
~,
...
?-L-$
Use speakers w ith impedances within the
ra
nges
show
n below to suit
how
they are used.
Speakers used
Impedance
A
4 - 16
0
B
4 - 16
0
A and B
8 - 16 0
ENGLISH
Connecting
players
A turntable w ith an
MM
type
ca
r
tr
idge can be connected
to
this unit. To use an
MC
cartridge,
please
insta
ll
a step-up t
ra
nsformer.
•
If
hu
mm
ing or other noise is generated w hen the ground wire is connected, disconnect it.
Turntable
CD player
- · AUDIQ - -
AUO
I
OO
UT
Le
"e
'
Connecting
recorders
Recorder
-1
-
AUDIO-
-
AUDIO IN
L
~
R
~
AUD
IO
OUT
L
~
R
~
DVD
player
- A
UO
IQ -
AUO
IO
OUT
e l
' G R
Recorder-2
-A
UDIO -
AUD
IO IN
~
L
~
R
A
UD
IO OUT
0
R
0
R
I
..
~
;
""
~
,,
"
"'
"
~
~
¥
~
7

Marantz PM6004 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	87 dB
Total Harmonic Distortion (THD)	0.0008 %
RMS power output per channel (4 Ohm)	60 W
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Gold, Silver
Connectivity technology	Wired
Power consumption (standby)	0.2 W
Power consumption (typical)	150 W

Weight and Dimensions

Depth	366 mm
Width	440 mm
Height	105 mm
Weight	7500 g
