Marantz SR5008 - 7. PCB MAIN ASSY

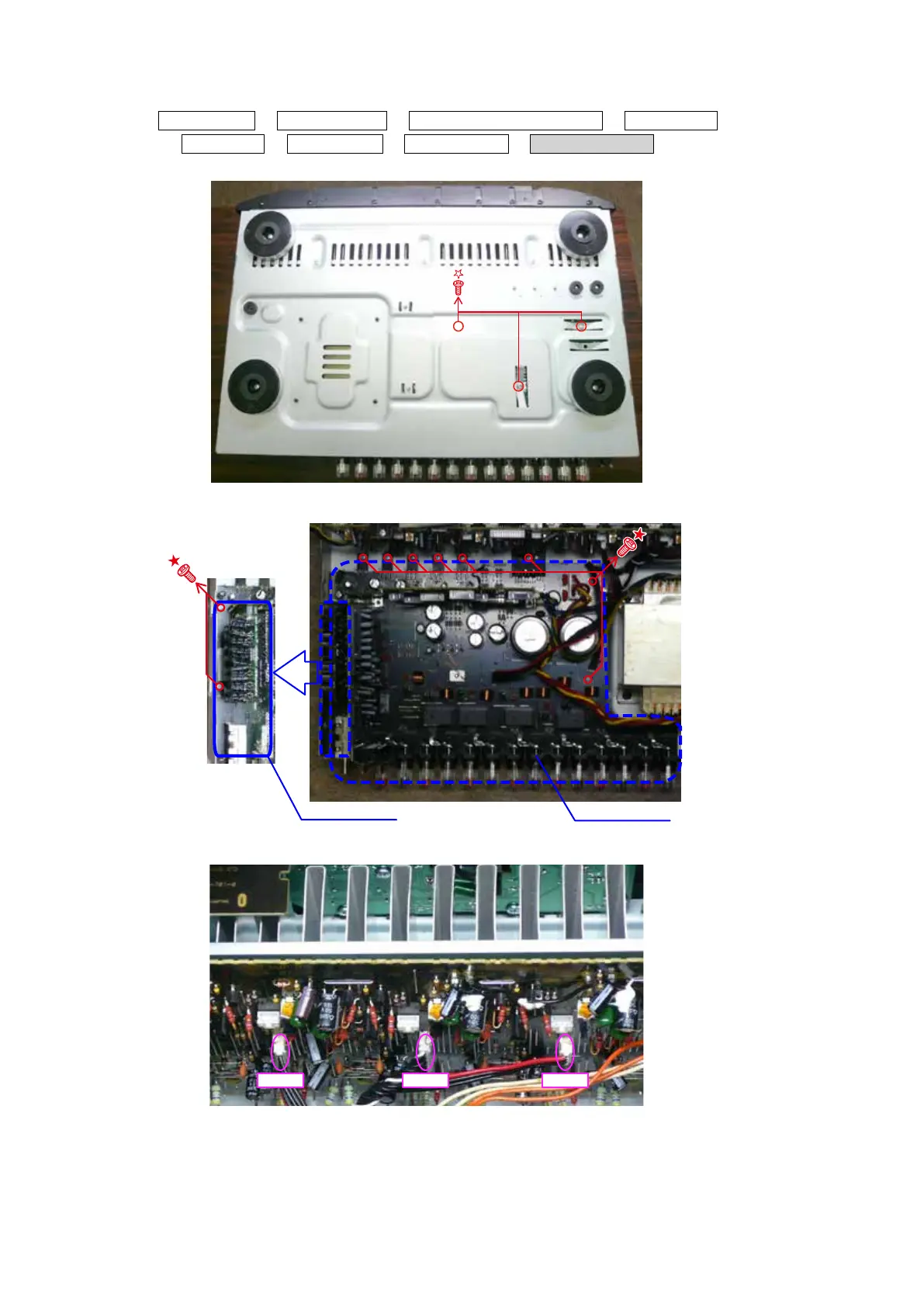

7. PCB MAIN ASSY
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
PCB VIDEO
→
PCB PREOUT
→
PCB SMPS
→
PCB MAIN ASSY
(1) Remove the screws.
(2) Remove the screws.
(3) Disconnect the connector wire.
View from the bottom
PCB MAIN
PCB INPUT
CP402 CP403 CP405
18
