Marantz SR5008 Service Manual

n
Audio section
• Power amplifier
Rated output:
Front:
100W+100W(8Ω/ohms,20Hz–20kHzwith0.08%T.H.D.)
140W+140W(6Ω/ohms,1kHzwith0.7%T.H.D.)
Center:
100W(8Ω/ohms,20Hz–20kHzwith0.08%T.H.D.)
140W(6Ω/ohms,1kHzwith0.7%T.H.D.)
Surround:
100W+100W(8Ω/ohms,20Hz–20kHzwith0.08%T.H.D.)
140W+140W(6Ω/ohms,1kHzwith0.7%T.H.D.)
Surround back:
100W+100W(8Ω/ohms,20Hz–20kHzwith0.08%T.H.D.)
140W+140W(6Ω/ohms,1kHzwith0.7%T.H.D.)
Output connectors:
6–16Ω/ohms
• Analog
Input sensitivity/Input impedance:
200mV/47kΩ/kohms
Frequency response:
10Hz–100kHz—+1,–3dB(DIRECTmode)
S/N :
100dB(IHF–Aweighted,DIRECTmode)
n
Vodeo section
• Standard video connectors
Input/output level and impedance:
1Vp-p,75Ω/ohms
Frequency response:
5Hz–10MHz—0,–3dB
• Color component video connector
Input/output level and impedance:
Ysignal—1Vp-p,75Ω/ohms
P
B
/ C
B
signal—0.7Vp-p,75Ω/ohms
P
R
/ C
R
signal—0.7Vp-p,75Ω/ohms
Frequency response:
5Hz–60MHz—0,–3dB
n
Tuner section
(Note:μVat75Ω/ohms,0dBf=1x10–15W)
Receiving Range:
FM87.5MHz–107.9MHz
AM520kHz–1710kHz
Usable Sensitivity:
FM1.2μV(12.8dBf)
AM18μV
50 dB Quieting
Sensitivity:
MONO 2.8μV(20.2dBf)
S/N :
MONO 70dB(IHF–Aweighted,DIRECTmode)
STEREO 67dB(IHF–Aweighted,DIRECTmode)
Total harmonic
Distortion:
MONO 0.7%(1kHz)
STEREO 1.0%(1kHz)
n
General
Power supply:
AC 120 V, 60 Hz
Power consumption:
650 W
Power consumption in standby mode:
0.2 W
Power consumption in CEC standby mode:
0.5 W
Power consumption in network standby mode:
2.7 W(Default)
For
purposesofimprovement,specicationsanddesignaresubjectto
change without notice.

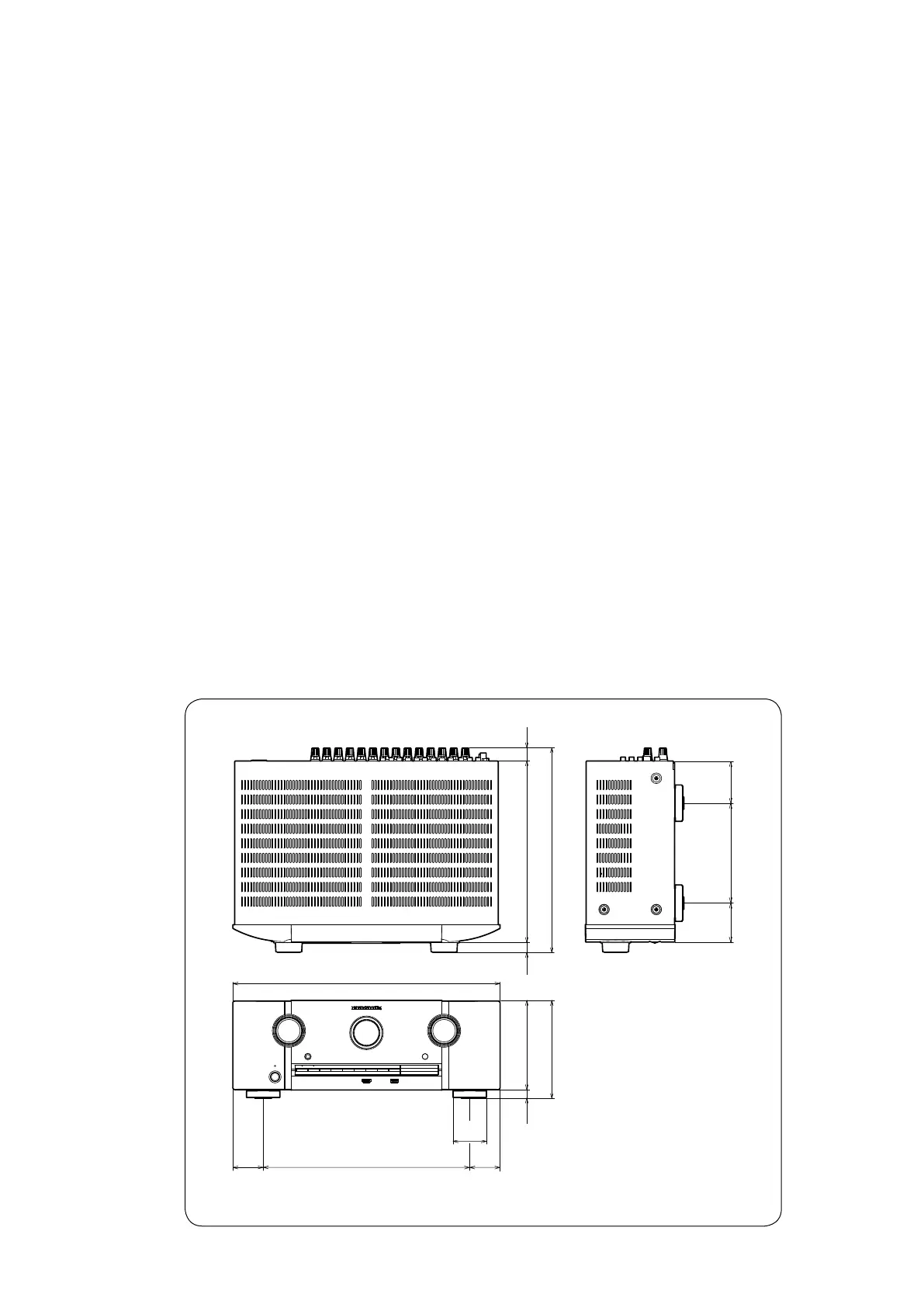

Unit : in. (mm)
Weight : 22 lbs 4 oz (10.1 kg)
11 47/64 (298.0)
13 3/16 (335.0)
6 15/32 (164.5)
2 33/64
(64.0)
2 47/64
(69.5)
33/64
(13.0)
5 53/64 (148.0)
6 11/32 (161.0)
17 21/64 (440.0)
13 25/64 (340.0)
2 11/64
(55.0)
1 31/32
(50.0)
5/8
(15.7)
27/32
(21.5)
1 31/32
(50.0)
TECHNICAL SPECIFICATIONS
DIMENSION
9
www.audiodna.sk

Marantz SR5008 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	20 - 20000 Hz
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	7
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	Not supported
Power consumption (standby)	0.2 W
Power consumption (typical)	650 W

Weight and Dimensions

Depth	335 mm
Width	440 mm
Height	161 mm
Weight	10100 g
