Indicators and Controls

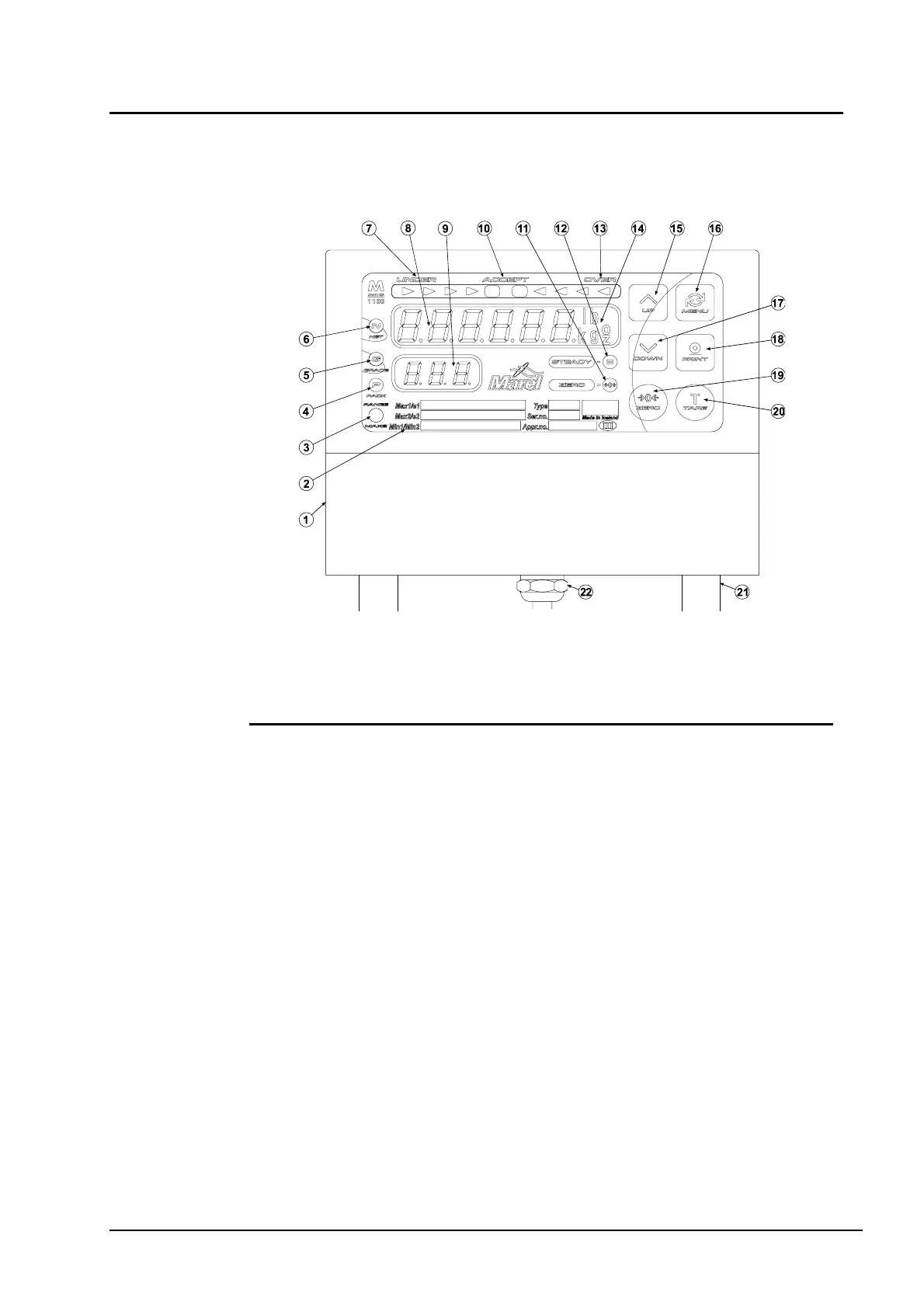

Figure 1 M1100 Indicator, front view.
1. Top cover 13. Over indicator
2. Rating plate 14. Unit of weight indicator
3. Max2/Power down indicator 15. Keyboard,
UP arrow
4. Packing indicator 16. Keyboard,
MENU key
5. Grading indicator 17. Keyboard,
DOWN arrow
6. Net indicator 18. Keyboard,
PRINT key
7. Under indicator 19. Keyboard,
ZERO key
8. Weight Display 20. Keyboard,
TARE key
9. Config Display 21. Mounting pillar / cable conduit
10. Accept indicator 22. Cable entry (serial RS-232) or
11. Zero indicator battery plug, optional
12. Steady indicator
