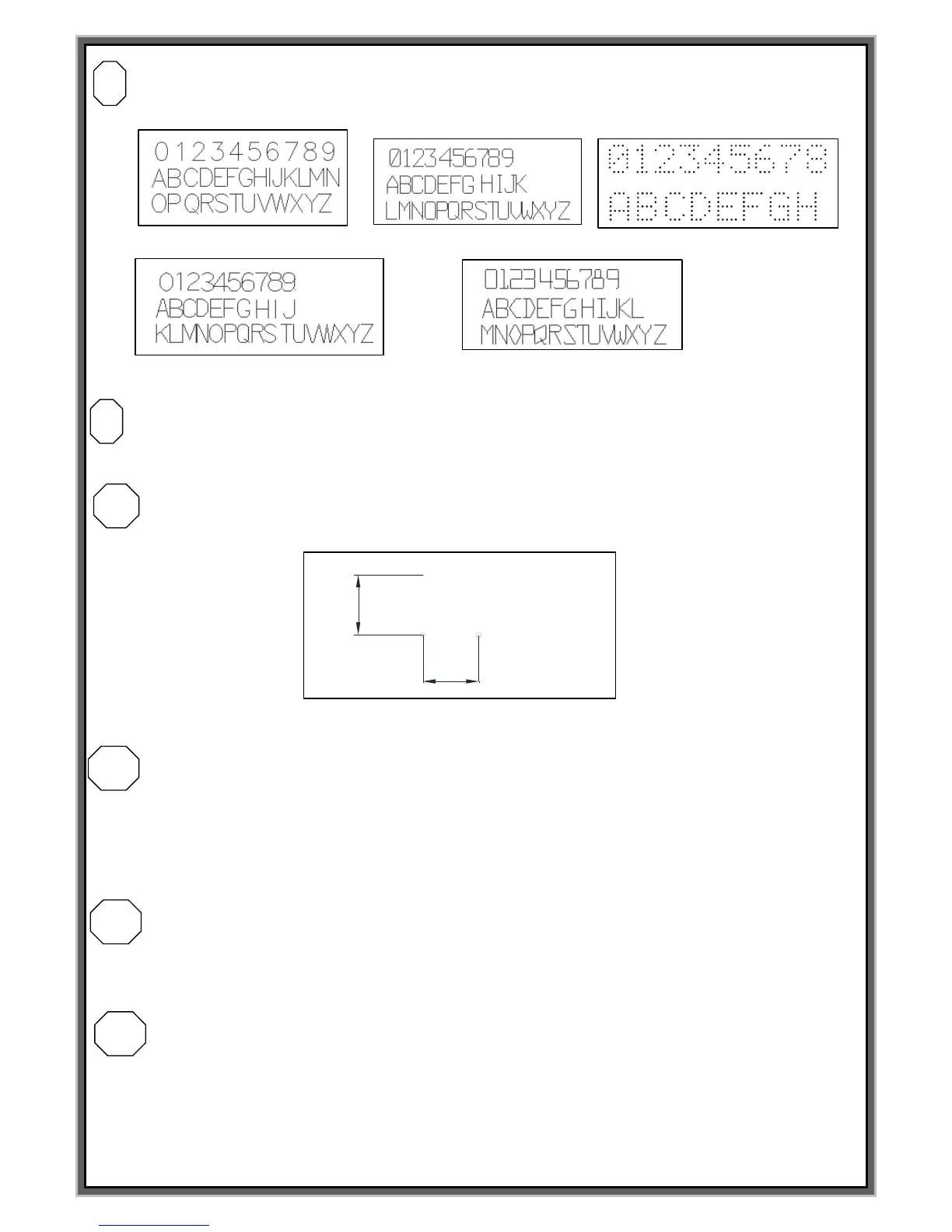

FONT : Select PLT file on the F7 PLOT LOAD. (Press SPACE BAR to change the menu)
Loading 4 PLT file to PLT1 ~ 4 and then load the PLT file on the F7 PLOT LOAD. (Refer to Pg 51)
< STD1 > < STD2 > < DOT >
< STD3 > < USER 1 ~ 4 >
CH : Character size 1.0~according to the marking area.
PX : Distance between each center of character.
Marked character can be overlapped if the value at PX is too small. Set as PX = CH.
L : Creation increase and decrease of serial number.
EX)(00000010) = First serial marking number is 10
In case you want to use automatic serial number, please key in @L@ according to no. of serial figures.
@LLLL@ : Lot number 0001.0002.0003……0010
I : Creation increase and decrease of serial number.
EX) I: +1 = As the above instance, second marking serial number is 11.
I: -1 = As the above instance, second marking serial number is 9.
P : P is pause
P: Y = The pin wait for the next signal after last letter is marked.
(To wait for next time start signal) Not output END signal
P: N = The pin returns back to home automatically.
To Next Page
