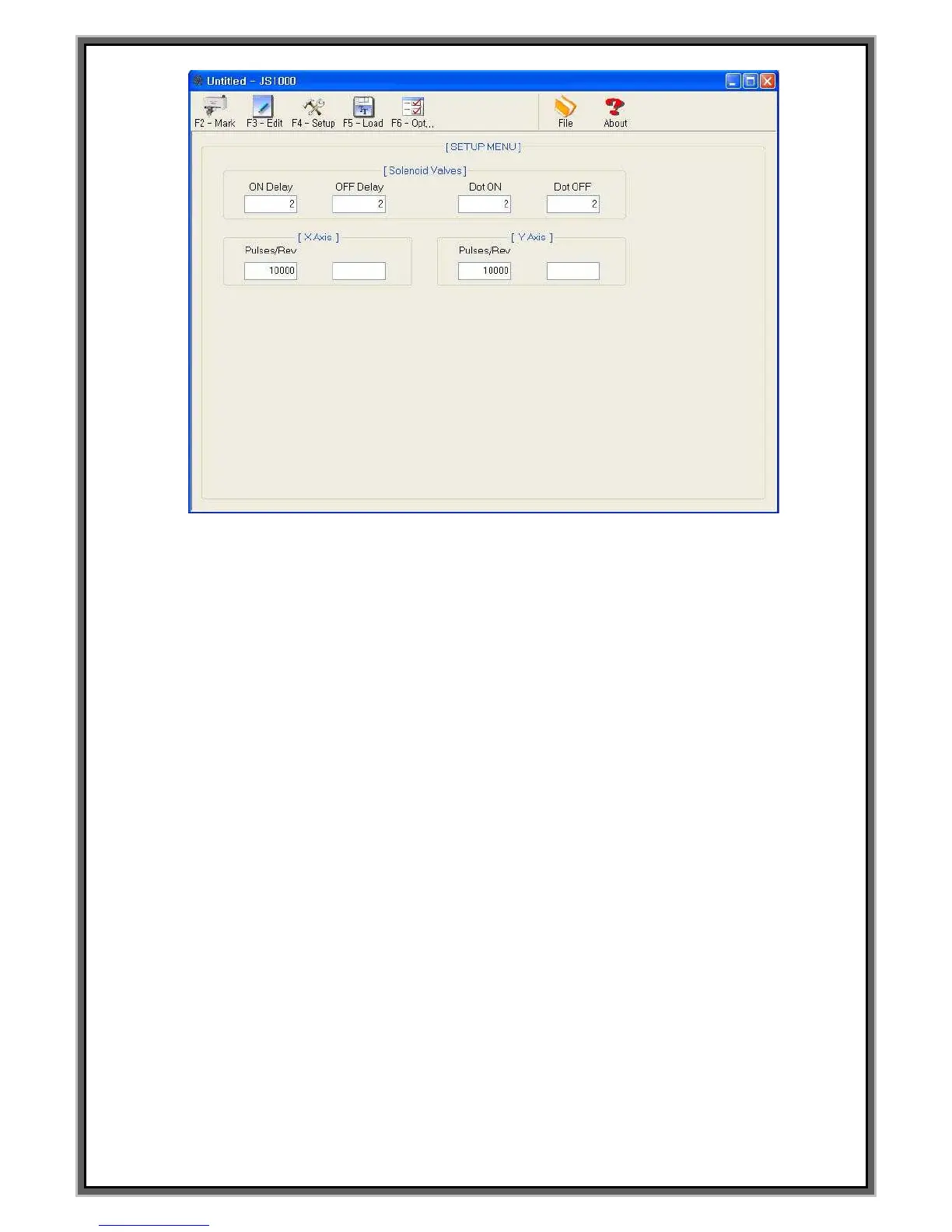

<<F4 SETUP>>
1. Solenoid Valves
- ON Delay : The delay time of sol. Valve when the marking is started.
- OFF Delay : The delay time of sol. Valve when the marking is finished.
- Dot ON : After arrive marking position, activate Sol. Valve work set amount time.
- Dot OFF : The time of moving upto the marking location at DOT font.
2. X Axis
- Pulses/Rev : no. of Purse for stepping motor which rotates 1cycle.
3. Y Axis
– Pulses/Rev : no. of Purse for stepping motor which rotates 1cycle.
