MASTER PROGRAMMING GUIDE

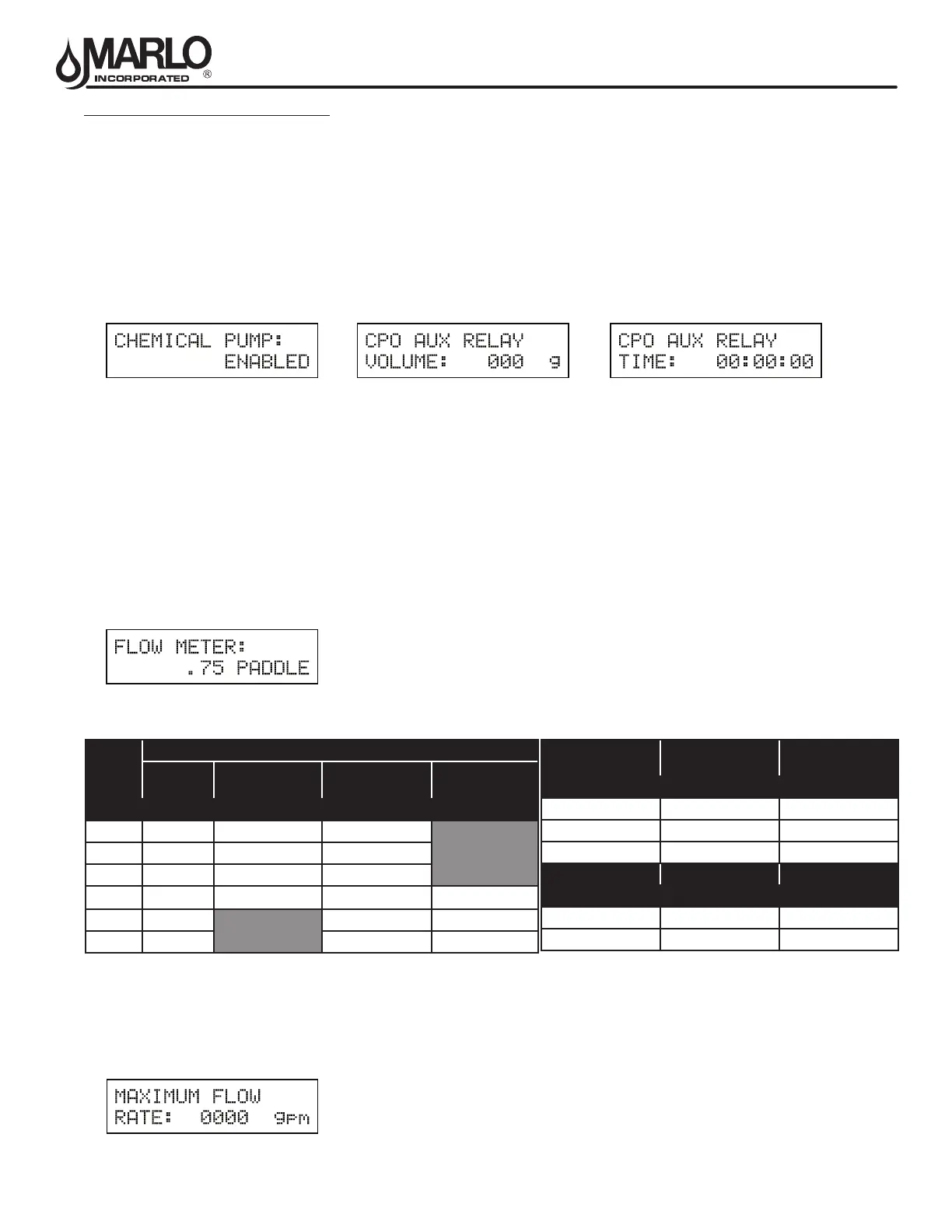

18. Chemical Pump Auxiliary Relay Output Window
This option setting consists of two displays. The rst display sets the volume of water ow at which the output turns
on. The second display sets the time of the output.
U.S. Range: 0 – 999 Gallons (1 – 999 Seconds)
Metric Range: 0.00 – 9.99 m3 (1 – 999 Seconds)
Activate Output After Volume Set is Reached.
Use the Shift button to move one space to the left for each number entered.
Use Up or Down buttons to adjust this value.
Press the Extra Cycle button.
19. Fleck Flow Meter Size (Default to Valve Type)
This program step sets the size of the Fleck ow meter.
• 1.0” Paddle (2750 Default)
• 1.5” Paddle (2850/2900 Default)
• 2.0” Paddle (3150 Default)
• 3.0” Paddle (3900 Default)
• 1.0” Turbine
• 1.5” Turbine
• Generic Flow Meter (Non Fleck Brand)
1. Use Up or Down buttons to adjust this value.
2. Press the Extra Cycle button.
CAUTION: Before entering Master Programming, please contact your local professional water dealer.
20. Maximum Flow Rate
This program step sets maximum ow rate of the generic ow meter.
1. Press the Shift button to select the digit you want to modify.
2. Press the Up or Down buttons to adjust this value.
3. Press the Extra Cycle button.
CLACK METER MAX FLOW RATE K-FACTOR
(in) (gpm) (Pulses per Gallon)
1-1/2 75 37
2 150 20
3 350 8
AUTOTROL METER MAX FLOW RATE K-FACTOR
(in) (gpm) (Pulses per Gallon)
1 25 65
2 255 15
PIPE
SIZE
SIGNET 2536 FLOW SENSOR SETTINGS
MAX FLOW
RATE
GALVANIZED TEE
FITTING
PVC TEE
FITTING
IRON SADDLE
FITTING
(in) (gpm) K-FACTOR (Pulses per Gallon)
1 49 213 352
1-1/4 76 128 177
1-1/2 110 94 118
2 195 59 67 54
2-1/2 306 43 38
3 440 27 23
OPTIONS FOR GENERIC FLOW METER SETTINGS (Non-Fleck Brand)
K-FACTOR TABLE
