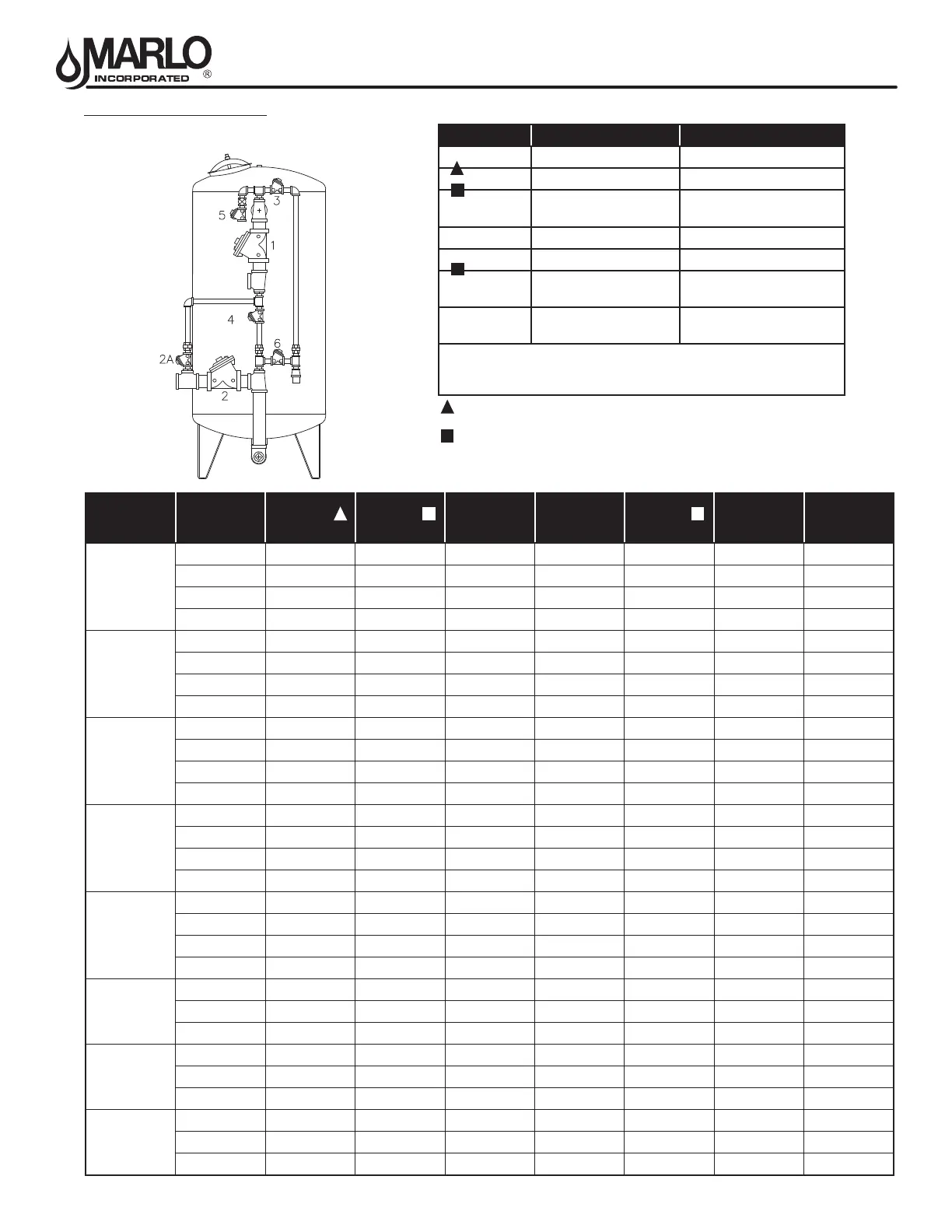

MARLO MR-210-2 - Replacement Valves

MR 150M–1050M SINGLE – MXIII CONTROLLER
MAINTENANCE
38
Valve 2A - Is Used on Single Systems Only
MR Model Pipe Size Valve 1 Valve 2 Valve 2A Valve 3 Valve 4 Valve 5 Valve 6
1 B2010102B B2010202B A2009001B A2010001B B2010201B A2007001B A2007001B
1.25 B2010103B B2010203B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5 B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2 B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
1.25 B2010103B B2010203B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5 B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2 B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5 B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5 B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2 B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5 B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
3 B2010108B B2010208B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5 B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2 B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5 B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
3 B2010108B B2010208B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5 B2010104B B2010204B A2009002B A2010002B B2010202B A2007002B A2007002B
2 B2010105B B2010205B A2009002B A2010002B B2010202B A2007002B A2007002B
2.5 B2010107B B2010207B A2009002B A2010002B B2010202B A2007002B A2007002B
3 B2010108B B2010208B A2009002B A2010002B B2010202B A2007002B A2007002B
2 B2010105B B2010205B A2009002B A2010002B B2010202B A2007002B A2007002B
2.5 B2010107B B2010207B A2009002B A2010002B B2010202B A2007002B A2007002B
3 B2010108B B2010208B A2009002B A20100002B B2010202B A2007002B A2007002B
2 B2010105B B2010205B A2009002B A2010003B B2010203B A2007002B A2007002B
2.5 B2010107B B2010207B A2009002B A2010003B B2010203B A2007002B A2007002B
3 B2010108B B2010208B A2009002B A2010003B B2010203B A2007002B A2007002B
2 B2010105B B2010205B A2009002
B A2010003B B2010203B A2007002B A2007002B
2.5 B2010107B B2010207B A2009002B A2010003B B2010203B A2007002B A2007002B
3 B2010108B B2010208B A2009002B A2010003B B2010203B A2007002B A2007002B
Valve 2 and 4 are Drilled and Tapped with 1/4" Female Thread on Boss #2
210
150
Valve 1 is Drilled and Tapped with 1/4" Female Thread on Boss #1
1050
900
750
600
450
300
Location# Function Position
1 Service Inlet
NORMALLY OPEN
2 Service Outlet
NORMALLY OPEN
2A
Bypass Valve -
Single Systems Only
NORMALLY CLOSED
3 Backwash Outlet
NORMALLY OPEN
4 Backwash Inlet
NORMALLY OPEN
5 Brine Inlet
NORMALLY OPEN
SPRING ASSIST OPEN
6 Brine/Flush Outlet
NORMALLY OPEN
SPRING ASSIST OPEN
MR
Model
Pipe
Size
Valve
1
Valve
2
Valve 2A
(single sys.
only)
Valve
3
Valve
4
Valve
5
Valve
6
150
1” B2010102B B2010202B A2009001B A2010001B B2010201B A2007001B A2007001B
1.25” B2010103B B2010203B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5” B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2” B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
210
1.25” B2010103B B2010203B A2009001B A2010001B B2010201B A2007001B A2007001B
1.5” B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2” B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5” B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
300
1.5” B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2” B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5” B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
3” B2010108B B2010208B A2009001B A2010001B B2010201B A2007001B A2007001B
450
1.5” B2010104B B2010204B A2009001B A2010001B B2010201B A2007001B A2007001B
2” B2010105B B2010205B A2009001B A2010001B B2010201B A2007001B A2007001B
2.5” B2010107B B2010207B A2009001B A2010001B B2010201B A2007001B A2007001B
3” B2010108B B2010208B A2009001B A2010001B B2010201B A2007001B A2007001B
600
1.5” B2010104B B2010204B A2009002B A2010002B B2010202B A2007002B A2007002B
2” B2010105B B2010205B A2009002B A2010002B B2010202B A2007002B A2007002B
2.5” B2010107B B2010207B A2009002B A2010002B B2010202B A2007002B A2007002B
3” B2010108B B2010208B A2009002B A2010002B B2010202B A2007002B A2007002B
750
2” B2010105B B2010205B A2009002B A2010002B B2010202B A2007002B A2007002B
2.5” B2010107B B2010207B A2009002B A2010002B B2010202B A2007002B A2007002B
3” B2010108B B2010208B A2009002B A20100002B B2010202B A2007002B A2007002B
900
2” B2010105B B2010205B A2009002B A2010003B B2010203B A2007002B A2007003B
2.5” B2010107B B2010207B A2009002B A2010003B B2010203B A2007002B A2007003B
3” B2010108B B2010208B A2009002B A2010003B B2010203B A2007002B A2007003B
1050
2” B2010105B B2010205B A2009002B A2010003B B2010203B A2007002B A2007003B
2.5” B2010107B B2010207B A2009002B A2010003B B2010203B A2007002B A2007003B
3” B2010108B B2010208B A2009002B A2010003B B2010203B A2007002B A2007003B
Location # Function Position
1 Service Inlet Normally Open
2 Service Outlet Normally Open
2A
Bypass Valve
Single System Only
Normally Closed
3 Backwash Outlet Normally Open
4 Backwash Inlet Normally Open
5 Brine Inlet
Normally Open
Spring Assist Open
6 Brine / Flush Outlet
Normally Open
Spring Assist Open
NOTE: Valve 1 is Drilled and Tapped with 1/4” Female Thread on Boss #1
Valve 2 and 4 are Drilled and Tapped with 1/4” Female Thread on Boss
#2
Valve 1 is Drilled and Tapped with 1/4” Female Thread on Boss #1
Valve 2 and 4 are Drilled and Tapped with 1/4” Female Thread on Boss #2
Valve 2A - Is Used on Single Systems Only
REPLACEMENT VALVES
