MR 150M–1050M SINGLE – MXIII CONTROLLER
MAINTENANCE
40

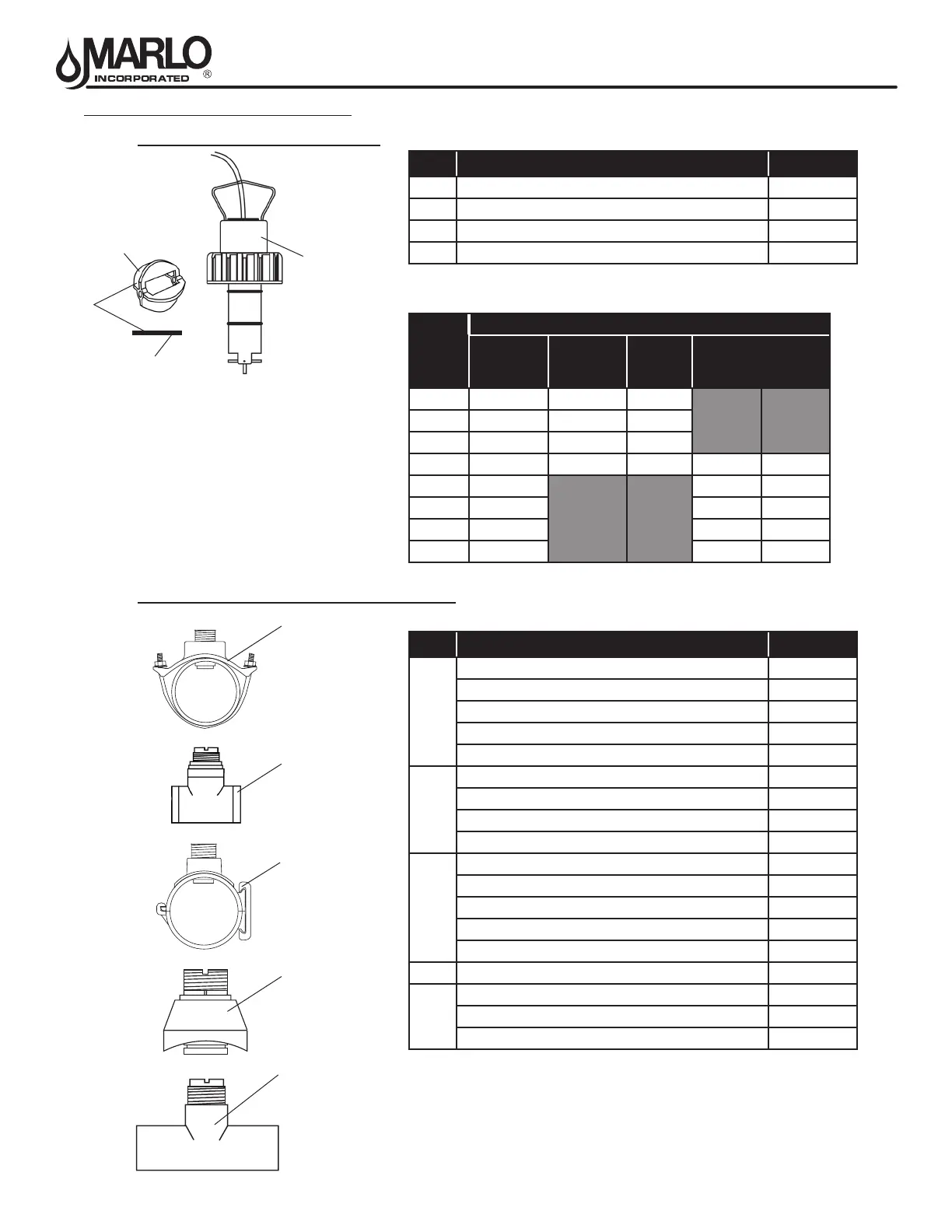

2536 FLOW SENSOR AND FITTINGS
PIPE
SIZE
(inches)
GENERIC FLOW METER SETTINGS
MAX FLOW
RATE
(gpm)
TEE
GALVANIZED
TEE
PVC
SADDLE
IRON
SADDLE
PVC
1 49 213.01 352.44
1-1/4 76 127.75 177.18
1-1/2 110 94.40 117.85
2 195 59.42 66.74 53.64 66.74
2-1/2 306 37.60 42.99
3 440 23.22 26.65
4 783 13.26 15.00
6 1762 11.04 8.32
K-FACTOR TABLE - SIGNET 2536
(Pulses per Gallon)
Item Description Part Number
1 Complete 2536 Flow Sensor A2296001
2 Replacement Paddle / Rotor A2456004
3 Pin A2098027
4 Replacement Paddle Rotor & Pin B1175025
Item Description Part Number
1 2” Iron Strap-on Saddle A2295014
2-1/2” Iron Strap-on Saddle A2295001
3” Iron Strap-on Saddle A2295002
4” Iron Strap-on Saddle A2295003
6” Iron Strap-on Saddle A2295005
2 1” Galvanized Iron Threaded Tee NPT A2294012
1-1/4” Galvanized Iron Threaded Tee NPT A2294002
1-1/2” Galvanized Iron Threaded Tee NPT A2294003
2” Galvanized Iron Threaded Tee NPT A2294004
3 2” PVC Saddle A2295026
2-1/2” PVC Saddle A2295009
3” PVC Saddle A2295010
4” PVC Saddle A2295011
6” PVC Saddle A2295012
4 2-1/2” Weldolet A2579002
5
1” Copper Tee Sweat A2569004
1-1/2” Copper Tee Sweat A2569009
2” Copper Tee Sweat A2294009
2536 GF SIGNET FLOW SENSOR
2536 GF SIGNET FLOW SENSOR FITTINGS
1
3
2
4
3
2
4
5
1
