MR 150M–1050M SINGLE – MXIII CONTROLLER
OPERATION
21
NETWORK/COMMUNICATION CABLES & CONNECTIONS
Use a CAT5 Network/Communication cable.
1. Connect the network/communication cable rst before programming.
2. The maximum cable lenth between timers is 100 feet.
3. Connect each unit together from one communication port to the next communication port. It does not matter which
one goes to the next one.
The number of network/communication cables needed for setup is one less than the total number of valves.
Two-Unit System: One network/communication cable
Three-Unit System: Two network/communication cables
Four-Unit Systems: Three network/communication cables




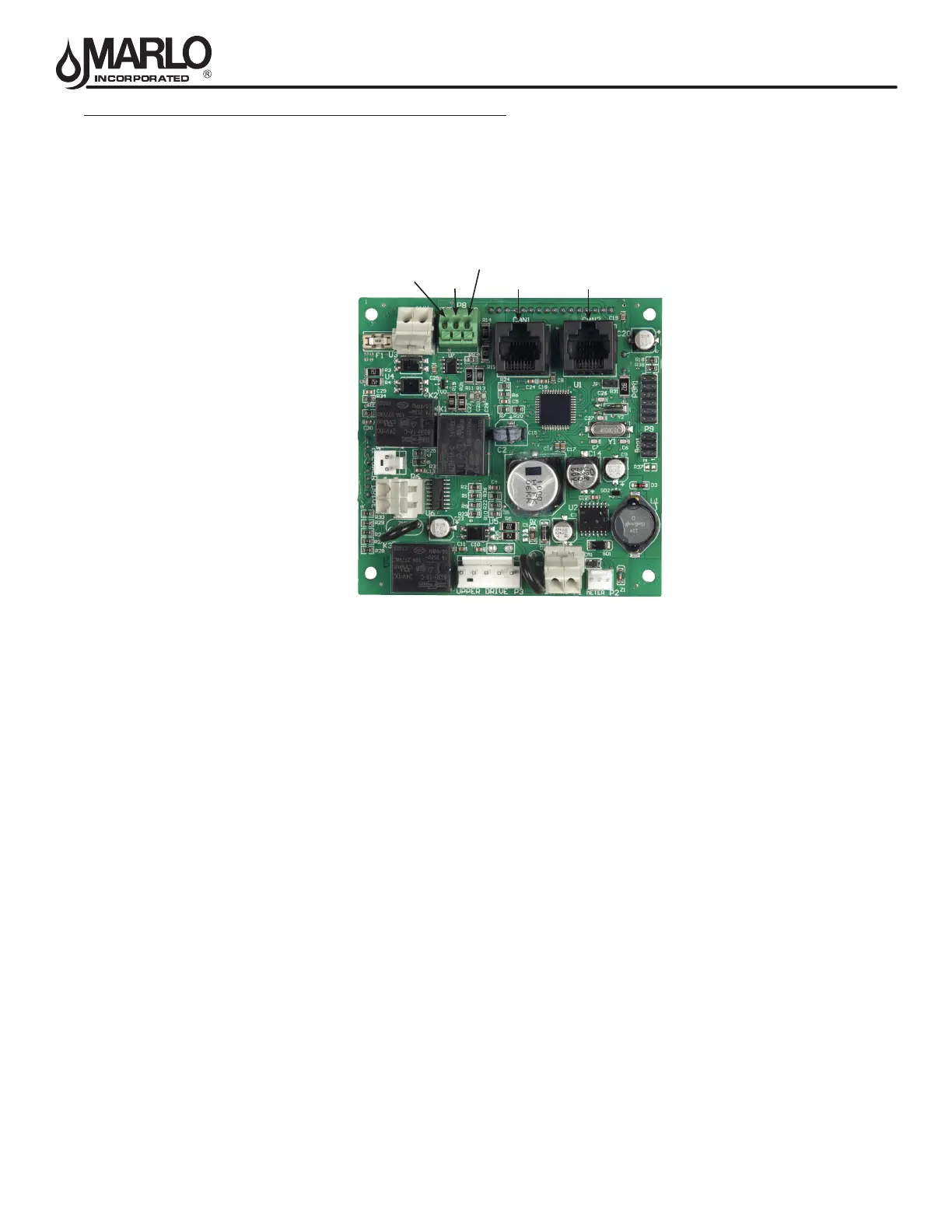

Communication Ports
Ground
Lock
Regen
NXTCircuitBoard
