MARLO MR-210-2 - Aquamatic Valve Repair Kits

MR 150M–1050M SINGLE – MXIII CONTROLLER
MAINTENANCE
39

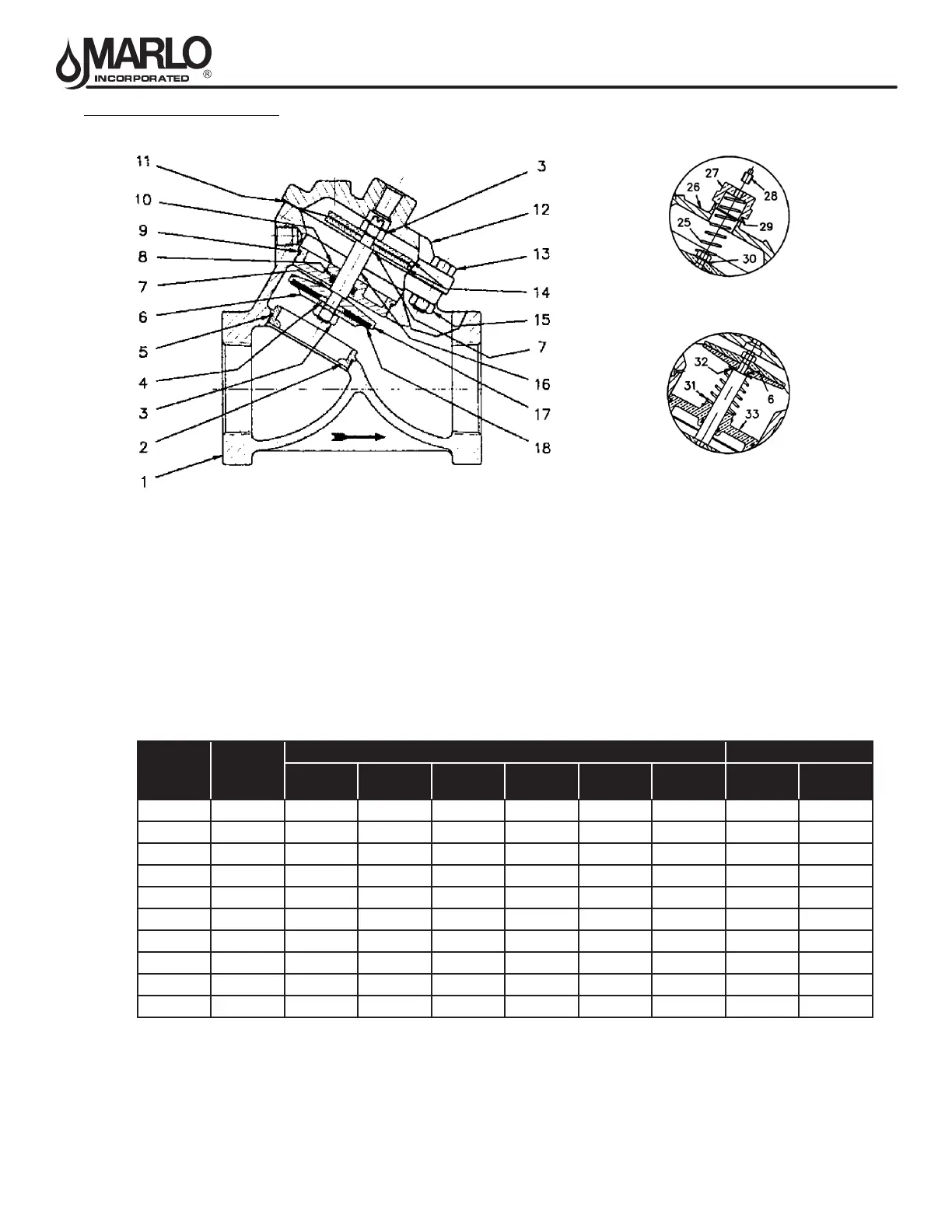

AQUAMATIC REPAIR KITS
RA - Diaphragm & Seal Kits - Includes Buna N Seals and Diaphragm (Items 3(2),5,6,8(2),9,14&7)
RF - Metal Parts Kit (Normally Open) - (Items 4,7,10,11(2), 17)
RG - Metal Parts Kit (Normally Closed) - (Items 4,7,10,11(2), 23)
SC - Repair Kit (Spring Assist Closed) - (Items 24,27,28)
SO - Repair Kit (Spring Assist Open) - (Items 8,31,32)
GT - Tool - To Install & Remove O-Ring Retainer (Not Shown)
Spring Assist Closed
Spring Assist Open
Cast Iron Body
Pipe
Size
Valve
Series
REPAIR KITS SHAFTS (ITEM 16)
RA
Type
RF
Type
RG
Type
SC
Type
SO
Type
GT
Tool
Normally
Open
Normally
Closed
3/4" 421 A2089028 A2089071 A2089078 A2089085 A2089092 A2089098 A2137001 A2137008
1" 421 A2089028 A2089071 A2089078 A2089085 A2089092 A2089098 A2137001 A2137008
1-1/4" 424 A2089029 A2089072 A2089079 A2089086 A2089093 A2089098 A2137002 A2137009
1-1/2" 424 A2089029 A2089072 A2089079 A2089086 A2089093 A2089099 A2137002 A2137009
2" 425 A2089030 A2089073 A2089080 A2089087 A2089094 N/A A2137003 A2137010
2-1/2" 426 A2089031 A2089074 A2089081 A2089088 A2089095 N/A A2137004 A2137011
3" 427 A2089032 A2089075 A2089082 A2089089 A2089096 N/A A2137005 A2137012
3 FLGD 427 A2089032 A2089075 A2089082 A2089089 A2089096 N/A A2137005 A2137012
4 FLGD 428 A2089033 A2089076 A2089083 A2089090 A2089097 N/A A2137006 A2137013
6 FLGD 429 A2089034 A2089077 A2089084 A2089091 N/A N/A A2137007 A2137014
