3. Attach one end of each rubber strap to the pull cords of the sensor, and the other
ends to the net. Make sure the pull cords are taut enough to trigger when the net
is full, but loose enough not to trigger when the net is empty.

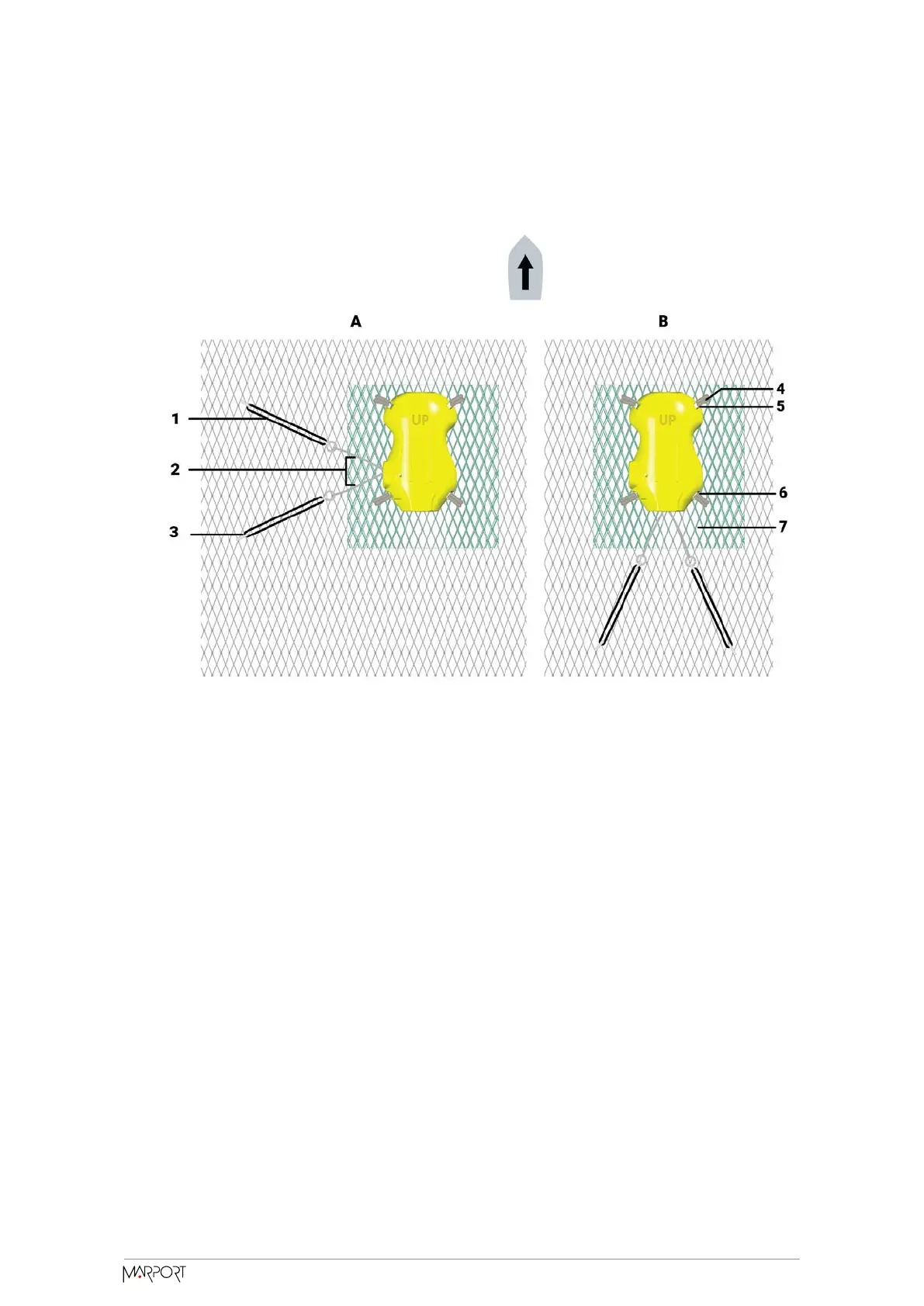

A. Side-pull
B. Center-pull
1. Rubber strap
2. Pull cords
3. Snap hook
4. Knot with rope
5. Front attachment lug
6. Back attachment lug
7. Double-mesh piece of net
ting for stabilization
Catch Navigator | V1 | Installation
47
