Marport CATCH - Replacing the Catch Magnet

About this task
Only qualified Marport technicians can do this task.
Procedure

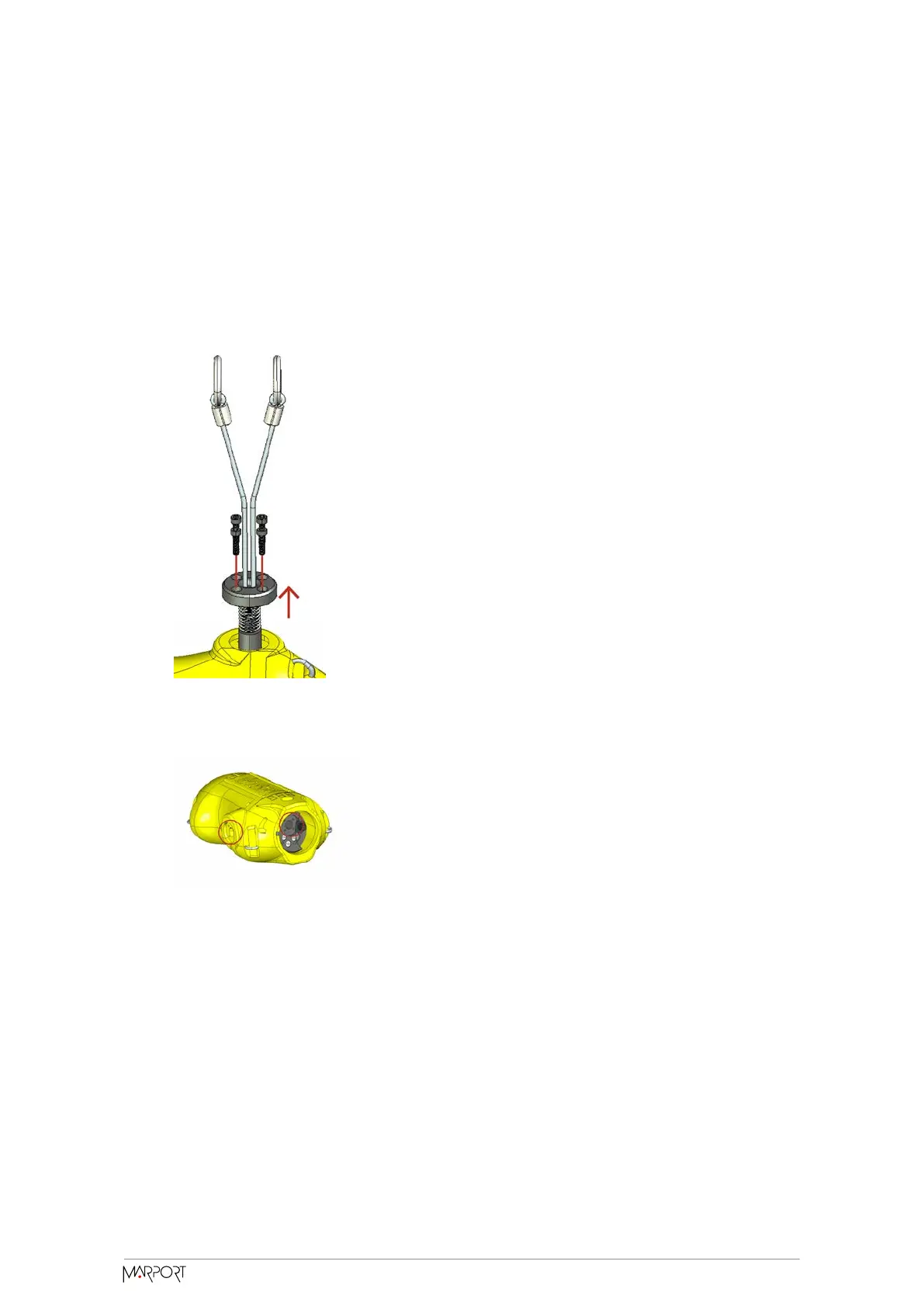

1. Remove the old pull cords.
a. Remove the four screws on the pull cord assembly with a
9/64 size Allen key.
b. Remove the cords, spring and magnet from the hole.
2. Install the new pull cords.
a. Install the new pull-cord assembly on the side or on the
end cap of the sensor.
b. Apply anti-seize on the four screw threads, then tighten the
screws with the 9/64 size Allen key.
Replacing the Catch Magnet
You can replace the magnet that is part of the pull cord assembly when the magnet is
broken.
Before you begin
For this task you need the following tools:
Catch Navigator | V1 |
Maintenance and Troubleshooting
53
