Trawl Explorer | V2 | Introduction and Presentation
CAUTION:
• Do not put foreign objects into depth sensor opening or try to open it.
• Do not remove the shoulder bolts from the outside of the sensor
It may damage the components.

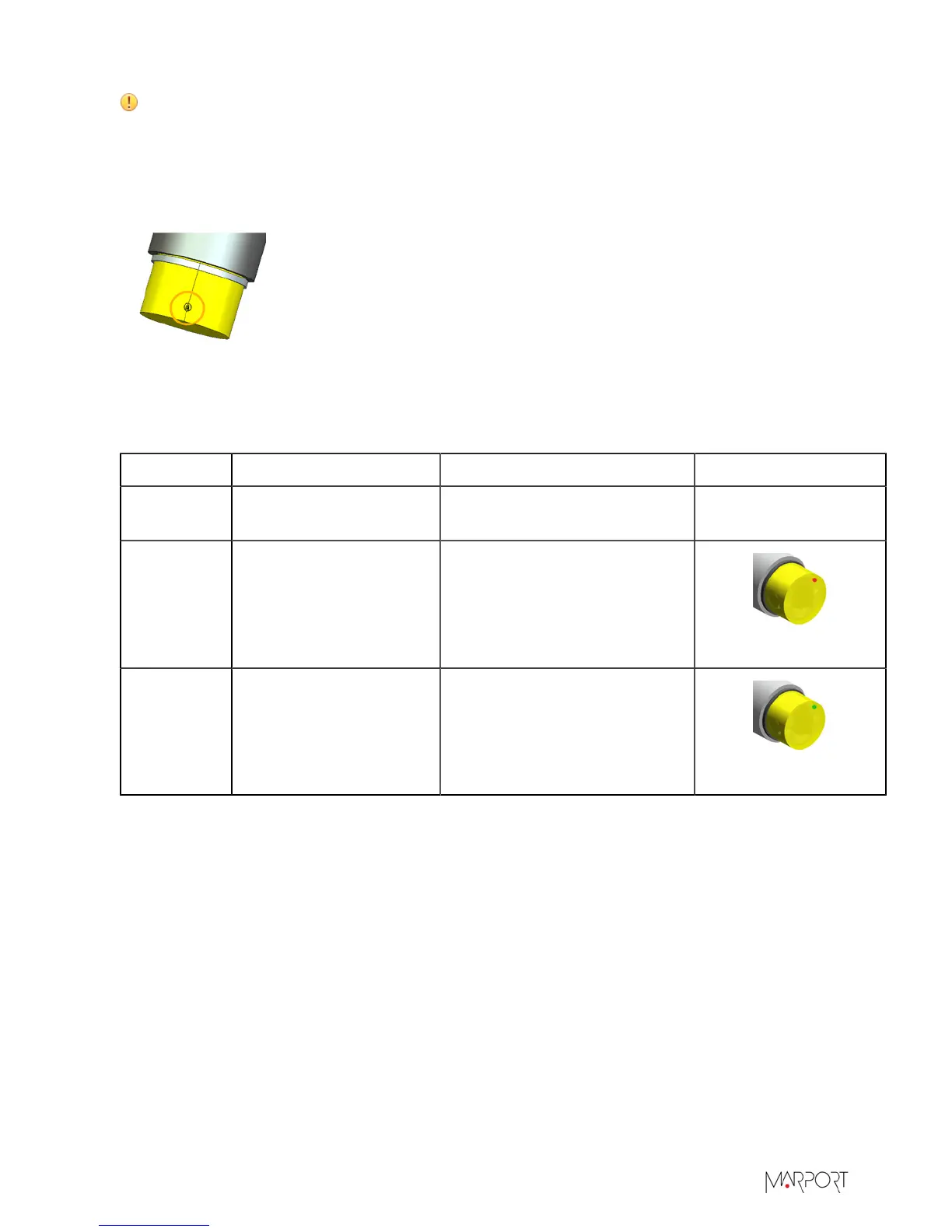

On the transducer, up and down sounders are written with the letters
A (down) and B (up). On older sensors, down sounder is marked by a
circle.
Operational Mode Indicator
Indicators from the transducer
State Situation Operation LED
Charging Charger plug is
connected.
Batteries are charging.
No light.
Running Sensor is in water or
activated with jumper.
After an initialization phase,
echo sounder is operating.
Flashing red
Configuring Sensor is out of water. Configuration via Bluetooth.
Turns off after 10 minutes
without user action.
Flashing green
| 10
