Capitolo 2  INTRODUCTION 15

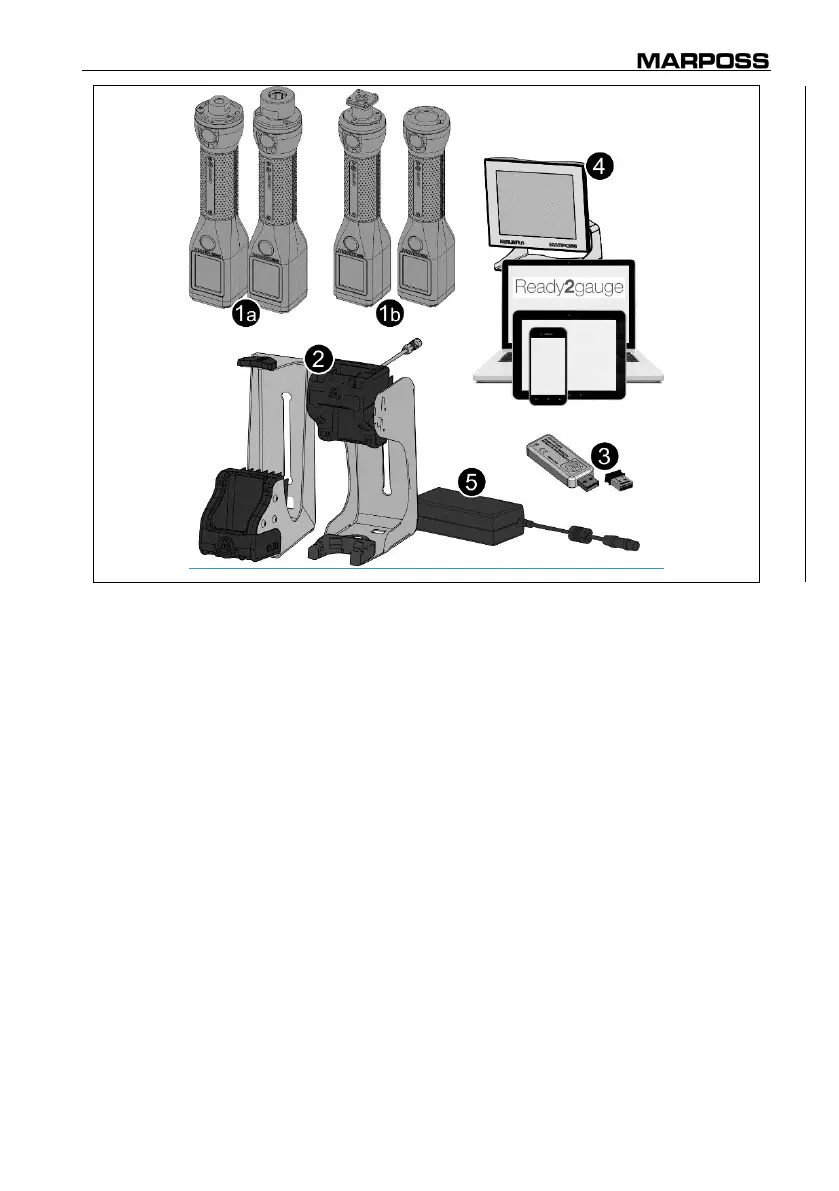

Figure 2-1. System components.
1a
I-Wave2
handle (see paragraph 2.2.1).
1b
Wave2
handle (see paragraph 0 ).
2
Stand charger (see paragraph 0).
3
Dongle (see paragraph 0).
4
Display units (Electronics, software or R2G Application) (see paragraph
2.2.5.
5
Power supply (see paragraph 2.2.6
The System is composed of the rechargeable gauge handle (1a or 1b) and the stand
charger (2).
The Marposs Bluetooth
®
Dongle (3) allows to connect the gauge handle to the
electronic units (see Table 2-2).
The R2G application allows to program the measurement and handle operating
parameters in absence of the electronic unit.
