Chapter 6  INSTALLATION OF PLUG HEAD 63

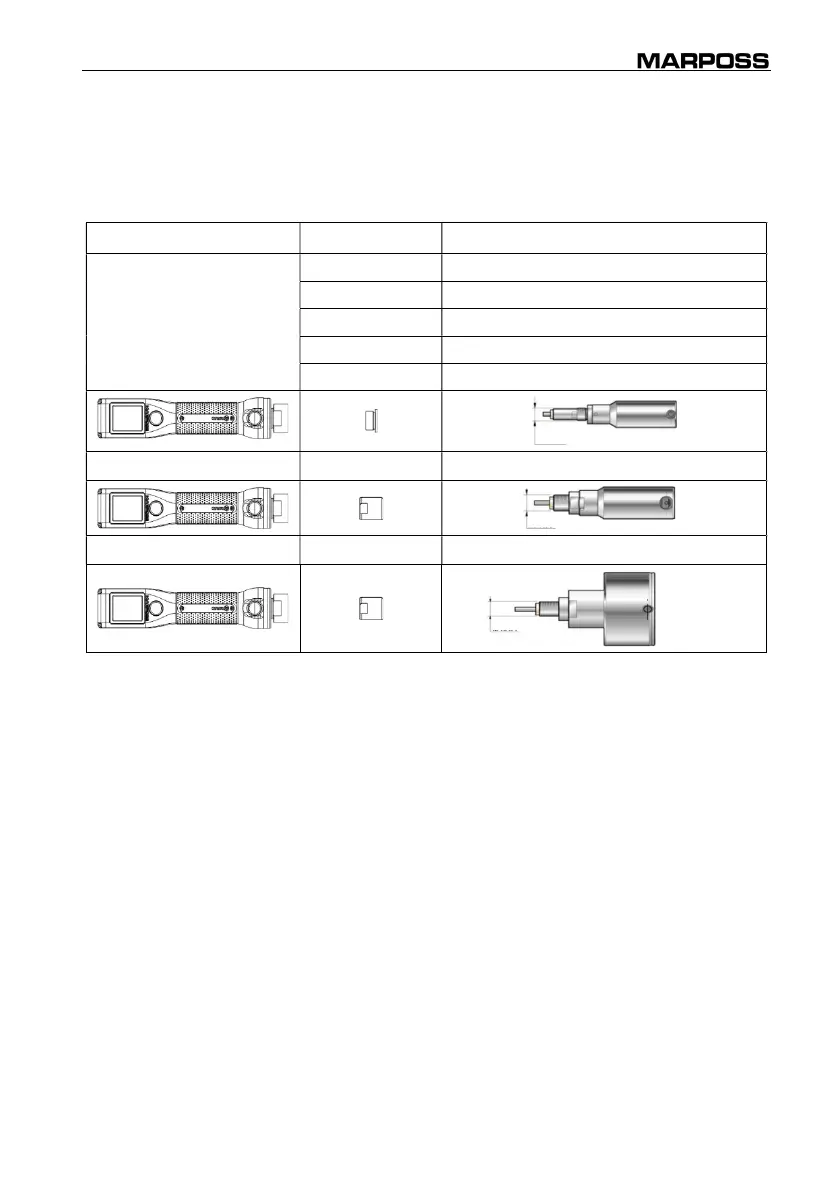

6.2 System with Star lock connection
6.2.1 Combinations without depth extensions
BASE ADAPTER APPLICATION
3TJ6SDI000
2TIMSM3501*
for plug head with M3.5 thread and 3 ≤ ø < 4
2TIMSM3505
for plug head with M3.5 thread and 4 ≤ ø < 4.5
2TIMSM3502
for plug head with M3.5 thread and 4.5 ≤ ø < 5.5
2TIMSM3503
for plug head with M3.5 thread and 5.5 ≤ ø < 7.5
2TIMSM3504 for plug head with M3.5 thread and 7.5 ≤ ø < 9.5
3TJ6SDI000
2TIMSM0600
for plug head with M6 thread and 9.5 ≤ ø < 26
3TJ6SDI000
2TIMSM1000
for plug head with M10 thread (DIA/HEX)
(*) Nota: Compatibile con capsule MARPOSS MBG/DIATEST/HEXACON.
M10 x 1
M3,5 x 0,35
M6 x 0,75
