Chapter 6 INSTALLATION OF PLUG HEAD 69

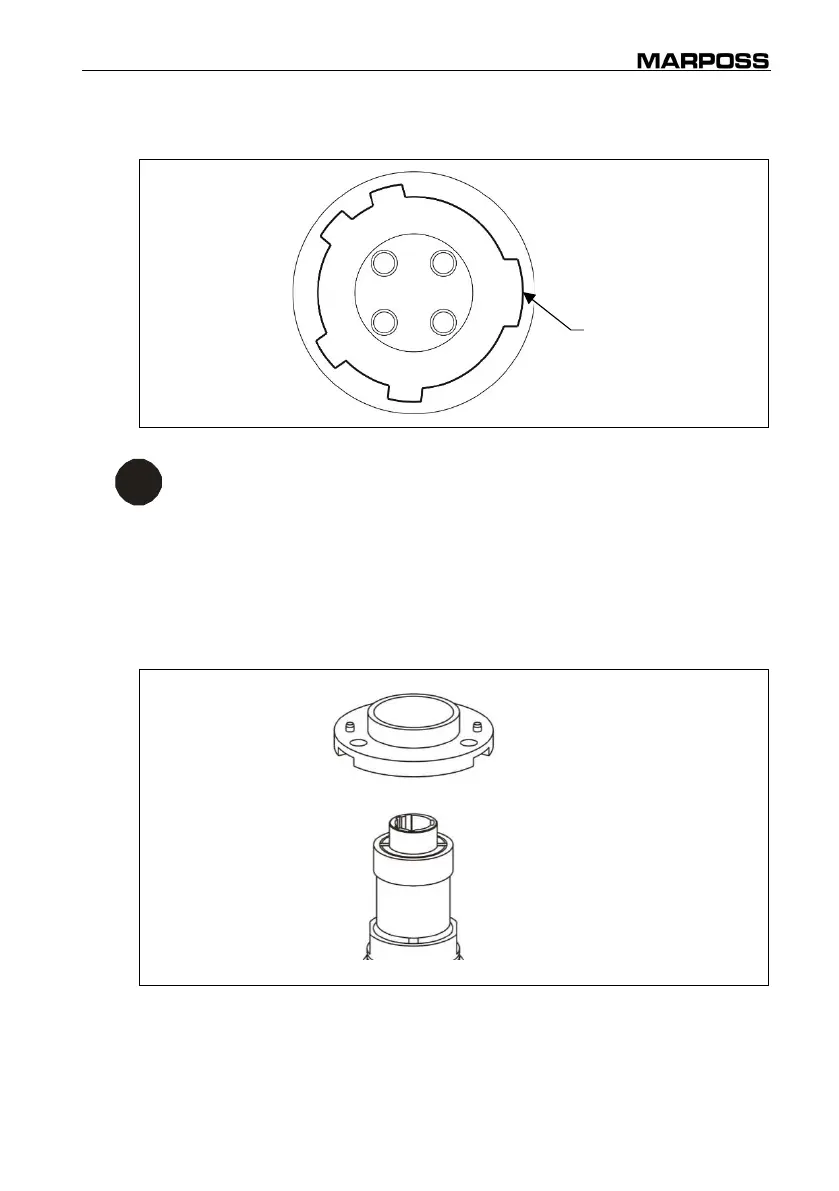

2) The figure 2a shows the shape of the electrical connector.
i
The voltage on the connector is of the S.E.L.V. (very low safety voltage
according to the definition of EN60950-1).
The element defined as “reference key (that has a greater extension with respect to
the other) must be set in a specific position, in order to correctly assemble the
interface kit (see the following figures).
3) Insert the base of the interface kit until is stopped (Figure 2b)
Reference key
2a
2b
