Chapter 6  INSTALLATION OF PLUG HEAD 73
6.4.2 Pencil probes replacement procedure
Connecting a pencil probe on Wave2 is realized in the following way:

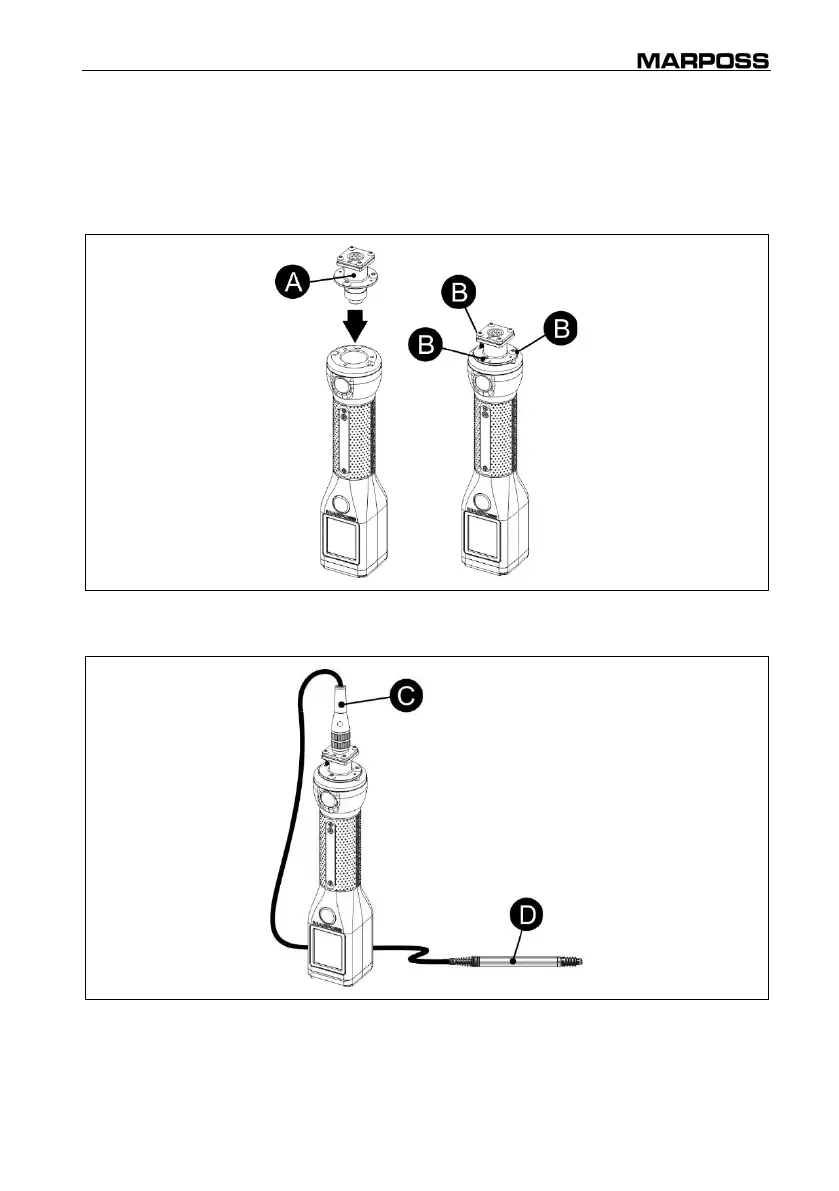

1. Install the appropriate adapter (A) on Wave2 (HBT or LVDT) and tighten the
fixing screws (B).
2. Link the connector (C) of the pencil head (D) to the connector of the adapter
(A).
