Martin MAC III User Manual

AC power 7
AC power
Warning! For protection from electric shock, the fixture must be grounded (earthed). The AC mains
supply must be protected against overload with a fuse or circuit breaker and provide ground-fault
(earth-fault) protection.
The MAC III Wash features an
auto-sensing switch-mode
power supply that
automatically adapts to
200-240 V (nominal) AC power
at 50 or 60 Hz. It is protected
by fuses inside the fixture that
may only be replaced by
service technicians authorized
by Martin™ with Martin™
service documentation for the
MAC III Wash.
Power connection
Important! Connect the MAC III Wash
directly to AC power. Do not
connect it to a dimmer
system; doing so may
damage the fixture.
The MAC III Wash requires a power input cable with a Neutrik PowerCon NAC3FCA cable connector for AC
mains power input. The cable must meet the requirements listed under “Protection from electric shock” on
page 4.
Martin™ can supply either a suitable 3 m (9.8 ft.) power cable with PowerCon input connector installed or
the PowerCon input connector without a cable (see “Accessories” on page 56).
If you need to install a PowerCon connector on the power cable, see the next section.
Installing a power input connector
To install a Neutrik PowerCon NAC3FCA input connector on a power
cable, see illustrations above and right:
1. Slide the bushing over the cable.
2. Slide the white chuck over cables with a diameter (D
a
) of 5 - 10 mm
(0.2 - 0.4 in.), or the black chuck over cables with a diameter of 10 -
15 mm (0.4 - 0.6 in.).
3. Prepare the end of the cable by stripping 20 mm (0.8 in.) of the
cable’s outer jacket.
- Disconnect
from mains before servicing.
- Déconnecter du secteur avant entretien.

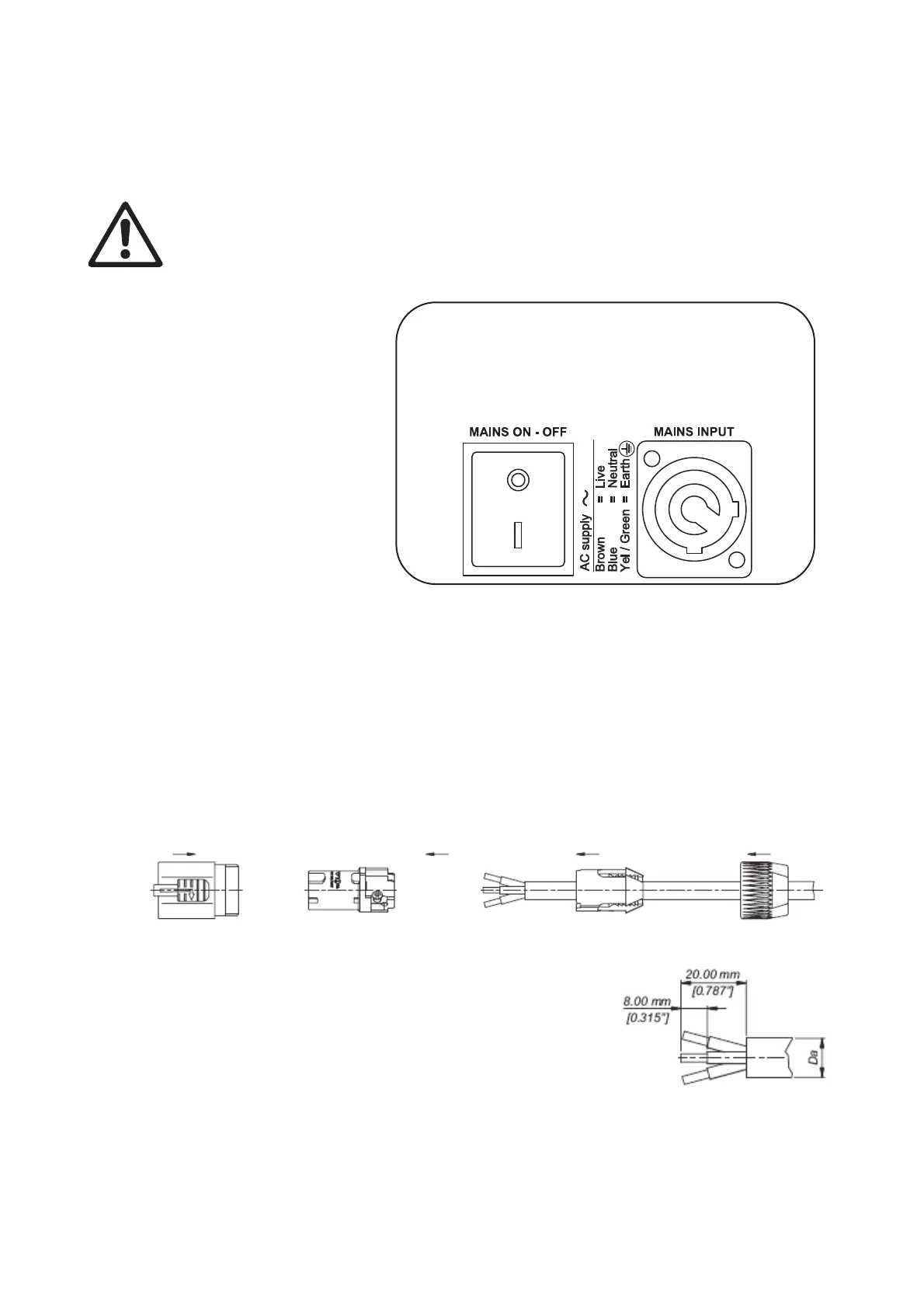

Figure 2: Power on/off switch and input connector
Chuck BushingHousing Insert
Cable end
