Maschio ENTRY 150 - 9.6_ADJUSTING THE TYING DEVICES; 9.6.1_ADJUSTING THE TWINE BINDER

USE AND MAINTENANCE
ENGLISH
Cod. F07022163 pag.53

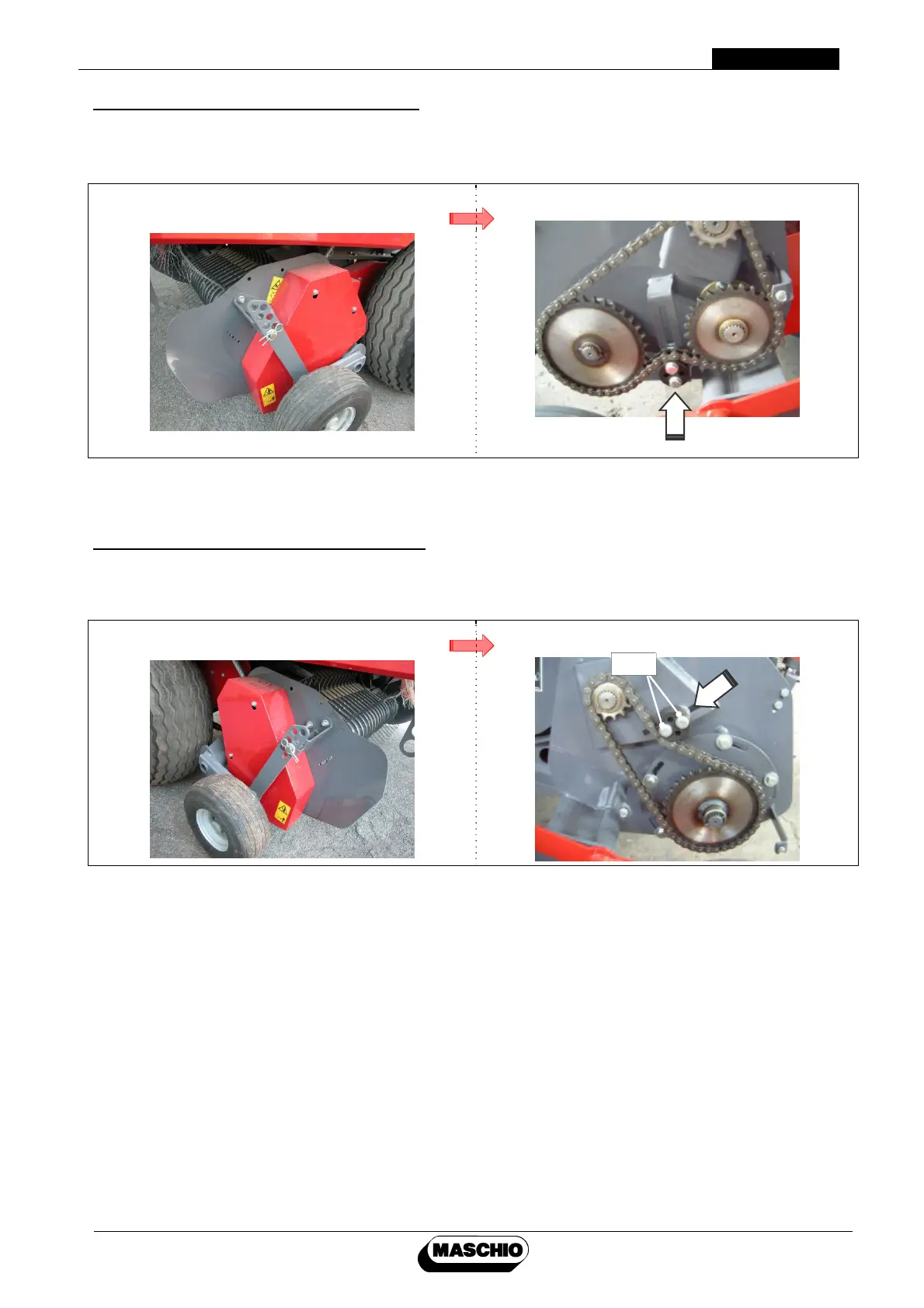

Pick-up chain tension adjustment (left side):
1) Unscrew the screws and remove the safety guard placed on the left side of the pick-up.
2) Loosen the 2 screws “V” and using a hammer, adjust the tension of the chain by shifting the tensioner
upwards with light hammer strokes.
1
2
 Once the correct tension is obtained screw back the 2 screws “V”.
 Replace the guard and screw it in place with the screws.
Pick-up chain tension adjustment (right side):
1) Unscrew the screws and remove the safety guard placed on the right side of the pick-up
2) Loosen the 2 screws “V” and using a hammer, adjust the tension of the chain by shifting the tensioner
with light hammer strokes.
1
2
 Once the correct tension is obtained screw back the 2 screws “V”.
 Replace the guard and screw it in place with the screws.
V
