Radical-7 Chapter 2: Radical-7 Descriptions
www.masimo.com 54 Masimo

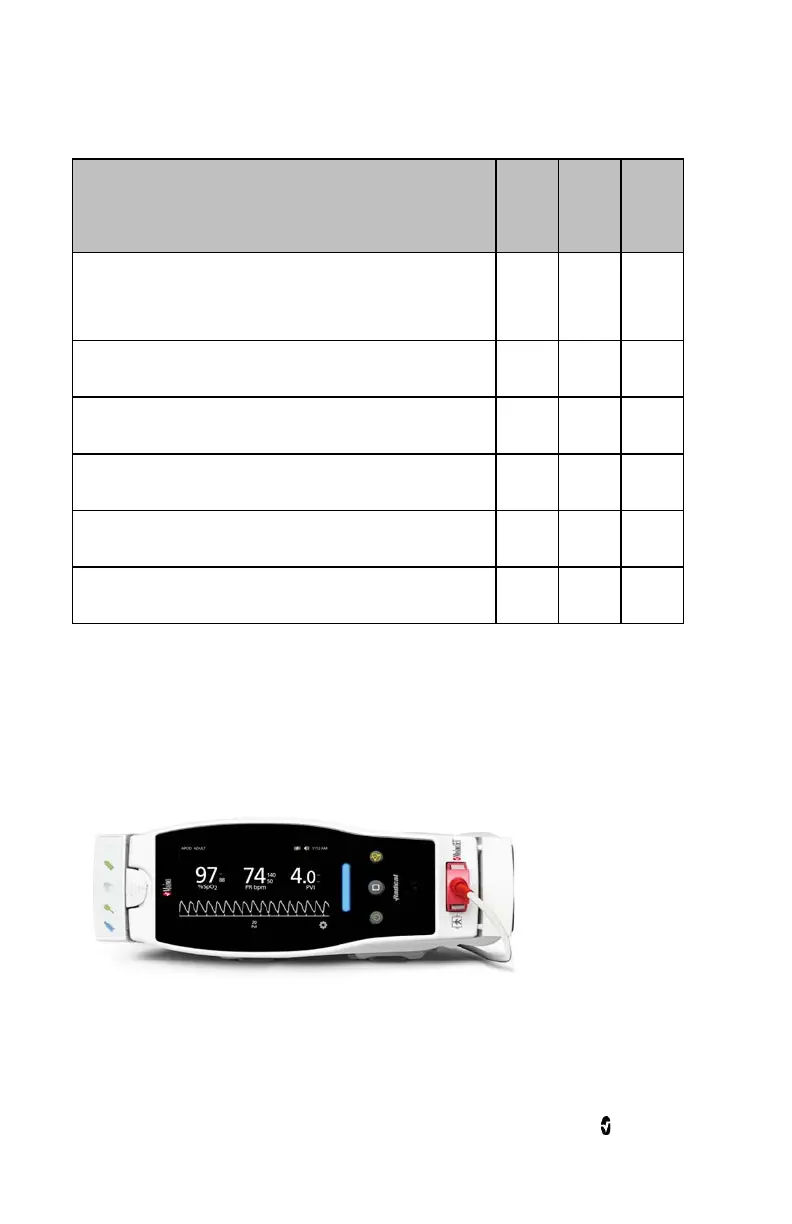

Docking Station Features RDS-
1
RDS-
2
RDS-
3
Automatic Display Rotation Support (Gravity
Detector)
 
Docking Station Battery Charging indicator

Handheld Battery Charging indicator
  
Visual Alarm indicator
 
AC Power indicator
  
Docking indicator
 
Standalone Front Panel
The following figure and corresponding text review the features of the
Radical-7 Standalone. Note that when the Standalone is turned on, all
indicator LEDs initially turn on and off at start up.
