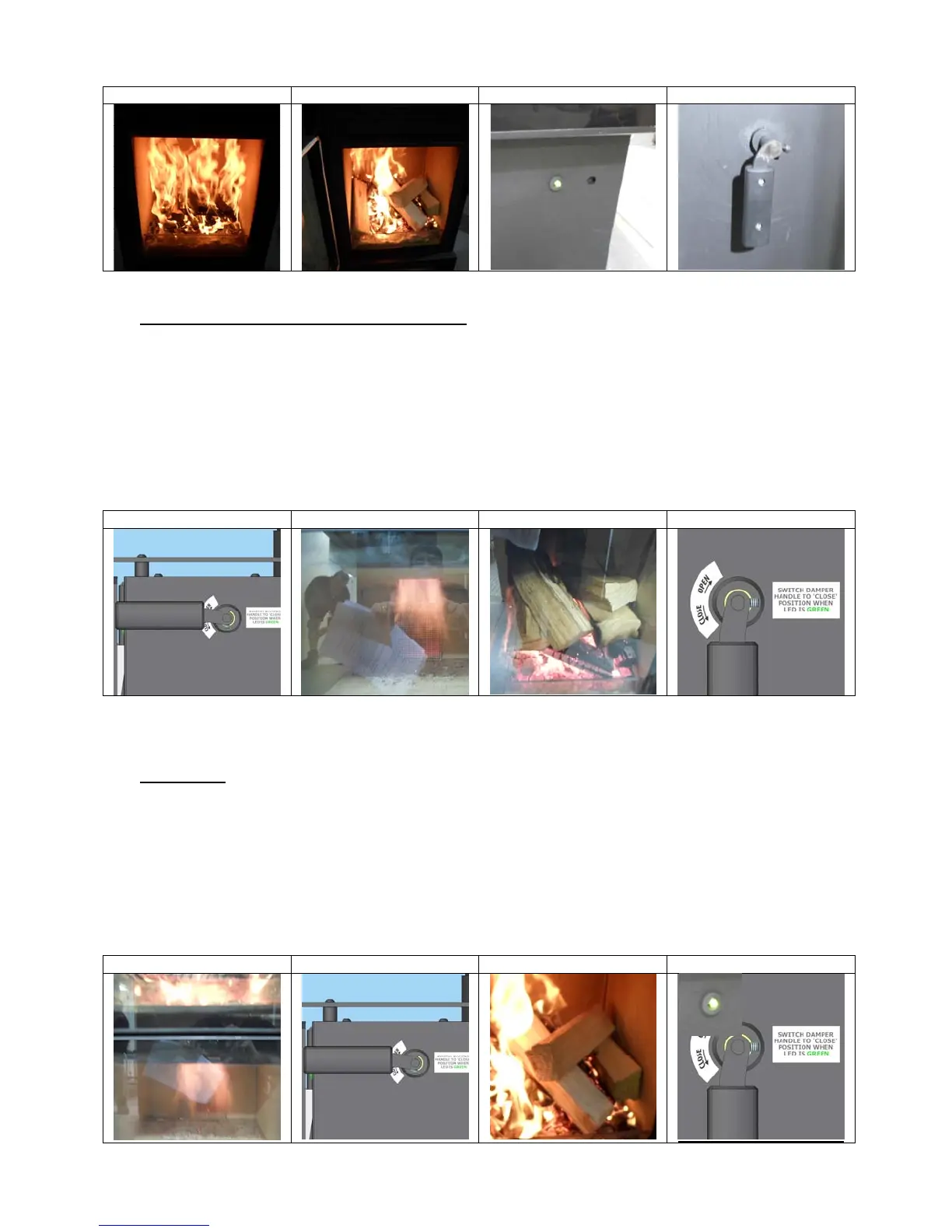

5.5 Intermediate Load 2 & Door Operations
- (5.5A) Door will not open once damper handle is positioned on “Close” because of safety interlock mechanism.
- (5.5B) The downdraft flame in the bottom combustion chamber should look like this.
- When approx. 50% of the intermediated load 1 has burned down, Turn the damper handle to “Open” positions
- (5.5C) Open the top combustion chamber, load 4 pieces intermediate 2 load – approx. 2.5 kg and close the
door
- (5.5D) Turn the damper handle to “Close” position to set the burner back into downdraft mode.
- Do not ever force to open the top chamber door when damper is in “Close” position
- Please note if the bottom chamber flame is ‘pulsing’ or ‘puffing’ after closing the damper, open the damper for
another 1-2 mins and then close to return to downdraft mode.
5.5A 5.5B 5.5C 5.5D
Overall the above steps should take around 40-45 mins. This point on, the burner will be hot enough to run the in
downdraft mode for prolonged period.
5.6 Re-fueling
- (Burner can be refueled with bigger logs once the down-draft is fully established.
- (5.6A) As fuel burns away the down-draft flame will reduce. This is normal and flame will increase again when
more fuel is loaded.
- (5.6B) Turn damper handle to “Open” position, open the top combustion chamber.
- Use rake and level the ember bed. Particularly leaving good embers around the downdraft injector.
- (5.6C) Place the 2-3 large size logs weighing approximately 1 kg each on embers in Front-to-Back direction.
- Close the door
- (5.6D) If the “Green” is still alight, turn the damper handle to “Close” position to continue downdraft mode.
5.6A 5.6B 5.6C 5.6D
