2.0 Mystique Technical Specifications
Mystique fire has been tested and complies to following standards & tests :
Environment Canterbury’s Real life test - Canterbury test method CM1
NZ National Environmental Test Standards - AS/NZS 4012:2015 and AS/NZS 4013:2015.
NZ National Environmental Safety Test Standard - AS/NZS 2918:2001
Overall Dimensions 470mm Wide x 545mm Deep x 1170mm High
Weight 175.0 kg
Test Method Emissions mg/MJ Emissions g/kg Efficiency %
Real Life Test
Canterbury Method
19 mg/MJ 0.30 g/kg 78%
National Environment Standard
AS/NZS 4012/13:2015
11 mg/MJ 0.17 g/kg 75.7%
Heat Output Power in kW
Minimum Average Output 8 kW
Maximum Average Output 10.2 kW
Peak Observed during Tests 12.8 kW
Flue Shield 600mm Long SS Masport Double Flue Shield
Flue System Std 4.2M Long, 150mm Masport Flue System
Floor Protector Requirement Ash Floor Protector

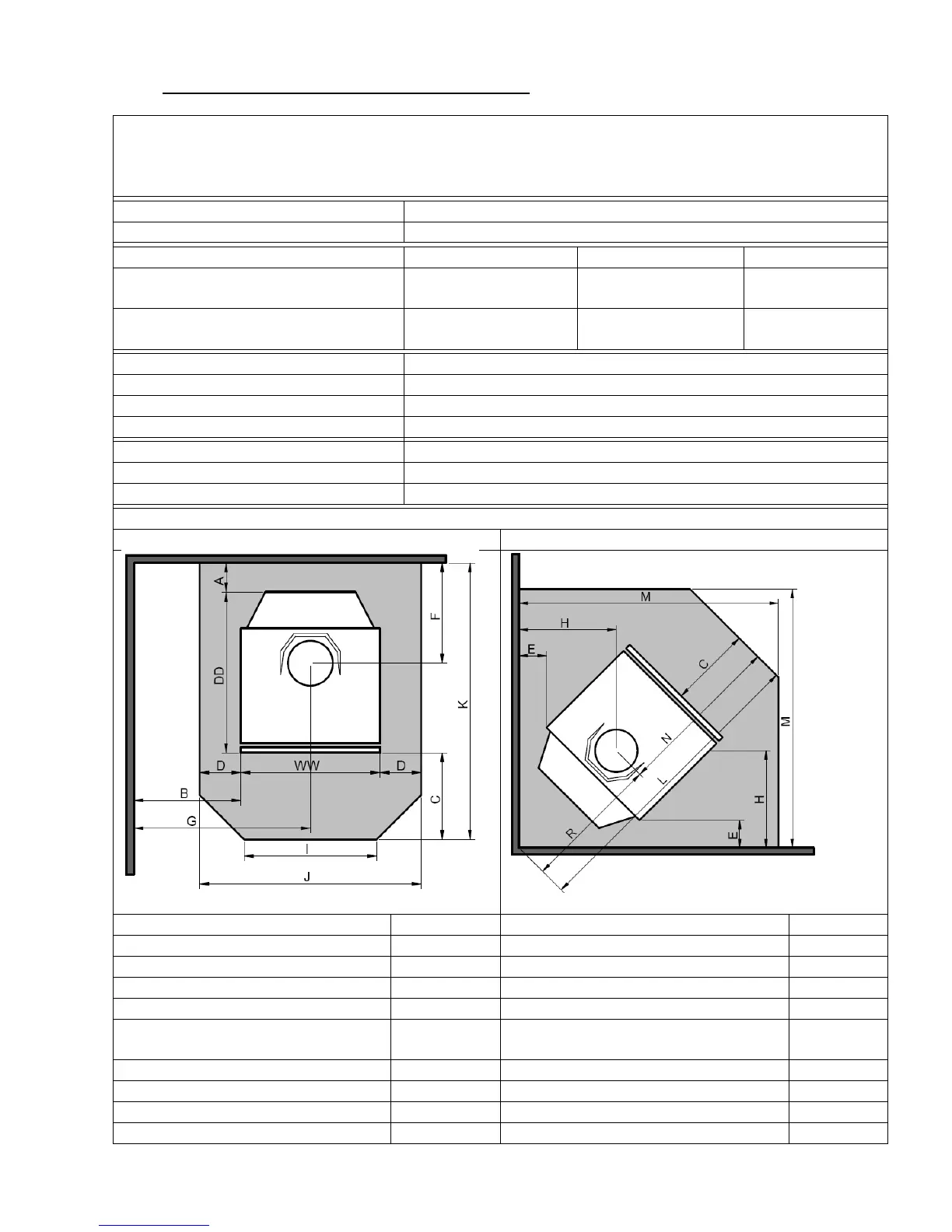

Clearances to Combustibles
Parallel Installation Corner Installation
`
A- Rear Panel to Rear Wall 100 mm C- Glass to Floor Protector Front 300 mm
B-Cooktop Edge to Side Wall 360 mm E- Cooktop Corner to Wall 100 mm
C- Glass to Floor Protector Front 300 mm H- Flue Centre to Wall 350 mm
D- Floor Protector Side 138 mm L- Floor Protector Diagonal 1095 mm
F- Flue Centre to Rear Wall 344 mm M- Floor Protector Side 932 mm
G- Flue Centre to Side Wall 595 mm N- Flue Centre to Floor
Protector Front
601 mm
I- Floor Protector Front Edge 446 mm R- Flue Centre to Wall Corner 494 mm
J- Floor Protector Width 746 mm WW- Overall Width of Fire 470 mm
K- Floor Protector Depth 945 mm DD- Overall Depth of Fire 545 mm
HH- Overall Height of Fire 1170 mm
