7

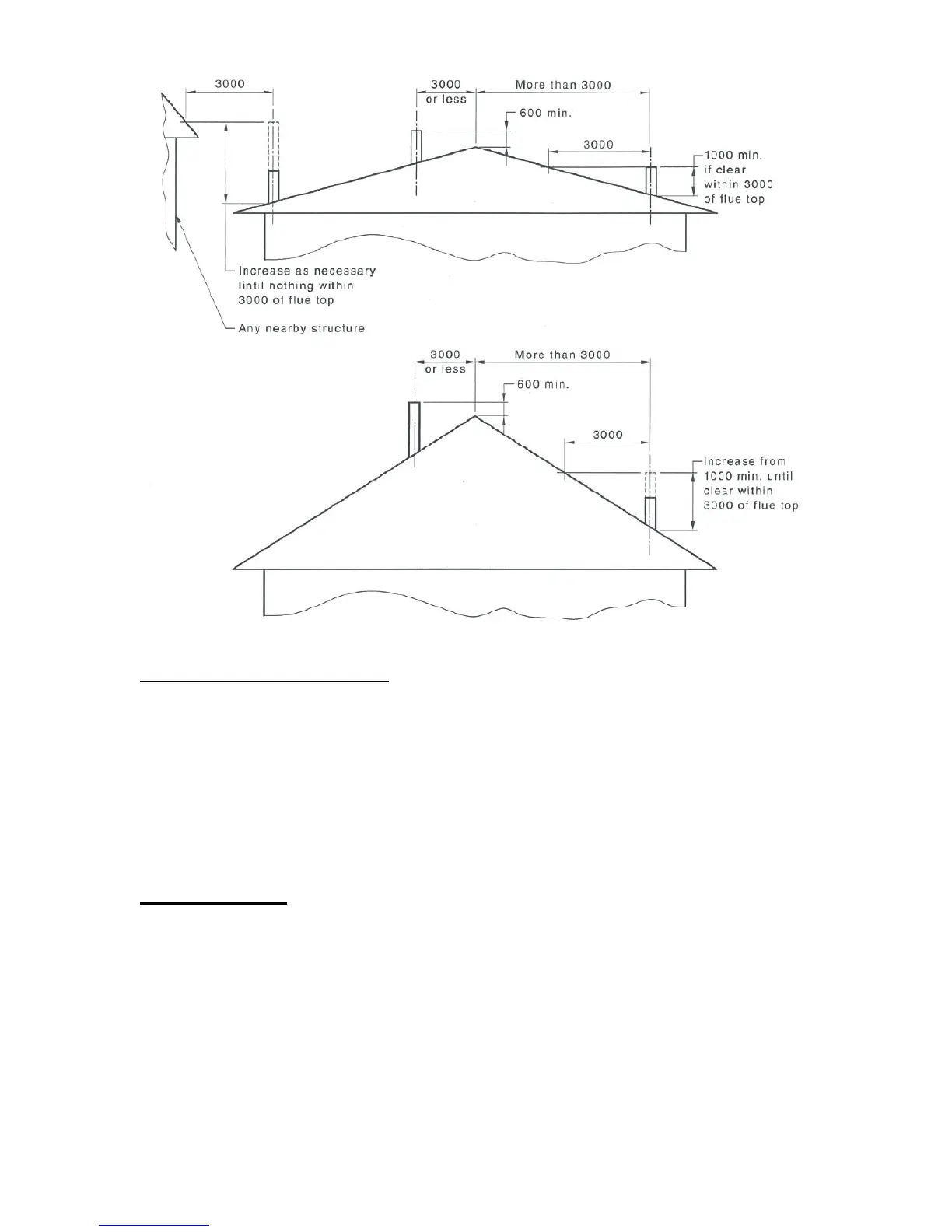

Figure 3.3.1
3.4 Floor Protector Requirements
Mystique burner can be installed on any non-combustible ash floor protector with minimum dimensions given on
page 4 if this manual. Please note that the dimensions given are minimum and we recommend to use slightly
larger floor protector size.
Please note that the Mystique burner is heavy having total weight of 175 Kg. The floor and the materials used as
floor protector should be strong enough to bear this load. The minimum requirements for material to be used as
floor protectors on a combustible materials are
- 6mm fibre cement board (e.g. Hardies Tile & Slate Underlay) plus 8mm ceramic tiles on a firm base.
- 4mm mild steel floor protector supplied by Glen Dimplex
- Or equivalent.
3.5 Seismic Restraint
Mystique burner must be seismically restrained, including the floor protector. The Fig 3.5.1 gives the holes that
can be pre-drilled on the floor protector with respect to flue centre.
We recommend a minimum 8mm dynabolt or 8mm coach screws for wooden floors of appropriate length.
