7.0 Electrical Parts and Electronic Control
- All the electrical and electronics components of Mystique burner are preassembled at the factory.
- Only certified electrician should remove the electrical and electronics components to carry out fan
installation, servicing and maintenance.
- For electrical installation work related to this burner, a Certificate of Compliance (COC) should be obtained
from the electrician
7.1 Fan Operation
- Fan will switch “On/Off” automatically as per set temperatures of the rear of the firebox.
- Keep the fire connected to power supply when in use.
- Before lighting up the fire, make sure that fan is connected to main power supply
- Keep fan “ON” all the time when running a fire
- Running burner with fan ‘OFF’ for a prolonged period may damage critical components of the burner.
- Please note that in case of emergency and power outage situations, it is safe to operate the burner without
fan up to 3 days
7.2 Fan Maintenance
The fan should need little attention other than removing it to clean the dust and lint from the impeller at least once a
year. Depending upon usage and environment, dust cleaning may need more than once a year
- First isolate the fan from the power supply.
- Open the bottom combustion door using tool supplied.
- Remove the front panel by unscrewing two screw on the front face behind bottom door.
- Disconnect all the fan connection and remove the fan assembly out of pedestal area. ….
- Clean the impeller blades carefully by blowing or vacuuming, and reassemble in the reverse order.
- If any part or section of the wiring is damaged, it must be replaced with complete loom supplied by
Glen Dimplex in order to avoid a hazard.
7.3 Electronic Control
For any malfunction or trouble shooting, contact retailer where you bought your Mystique burner or your nearest
Masport heating specialist or Glen Dimplex Customer Service department on 0800 666 2824

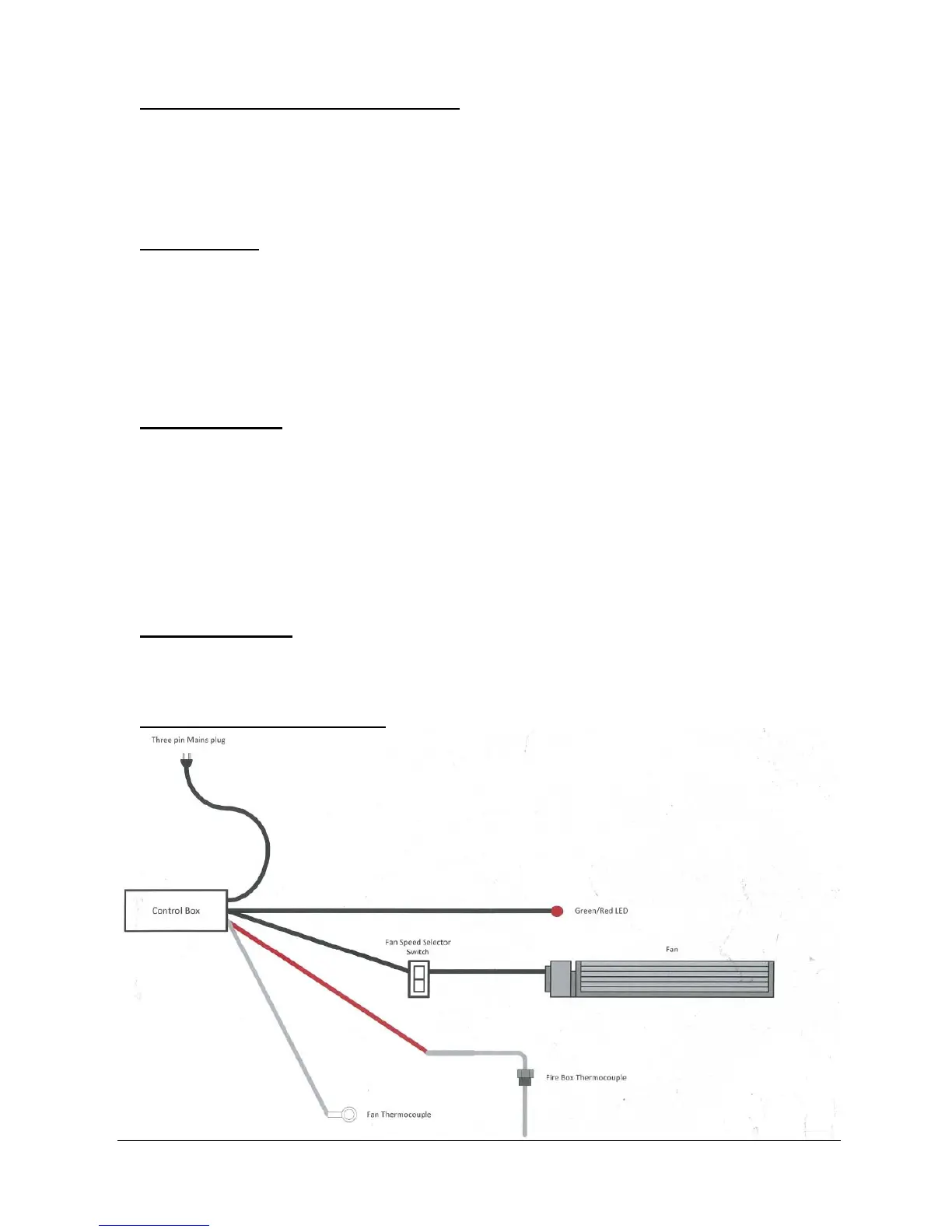

7.4 Electrical Schematic Diagram
