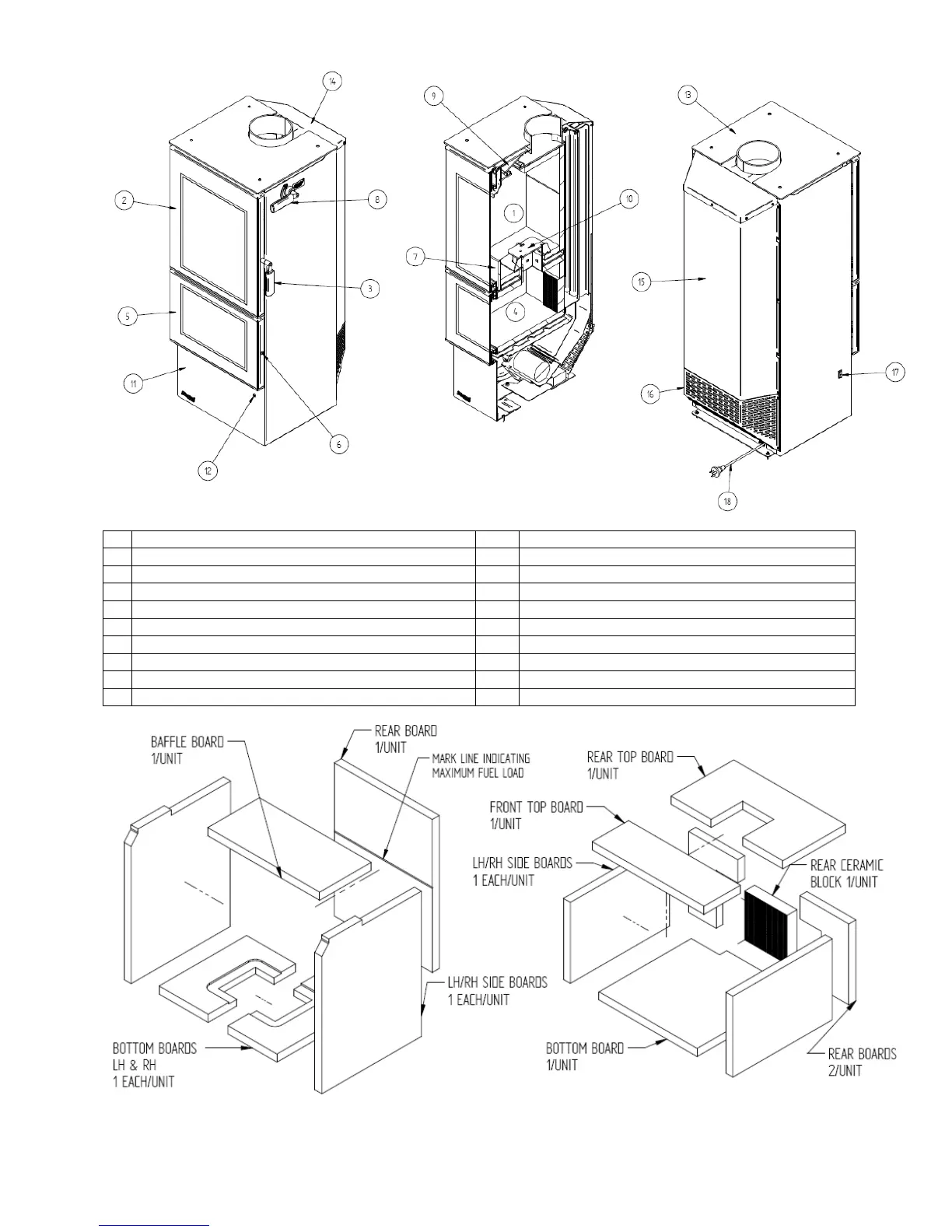

Fig 7.1
Part Description Part Description
1 Top Combustion Chamber 10 Down Draft Injector
2 Top Combustion Chamber Door Complete 11 Bottom Front Panel
3 Top Door Handle 12 RED/GREEN LED - Damper Location Indicator
4 Bottom Combustion Chamber 13 Top Plate
5 Bottom Combustion Chamber Door Complete 14 Heat Exchanger Access Panel
6 Bottom Door Access Screw 15 Rear Panel
7 Top Chamber Ash Glass 16 Bottom Rear Fan Grill
8 Damper Handle 17 Fan Switch
9 Damper Plate 18 Power Lid

Fig 7.2
