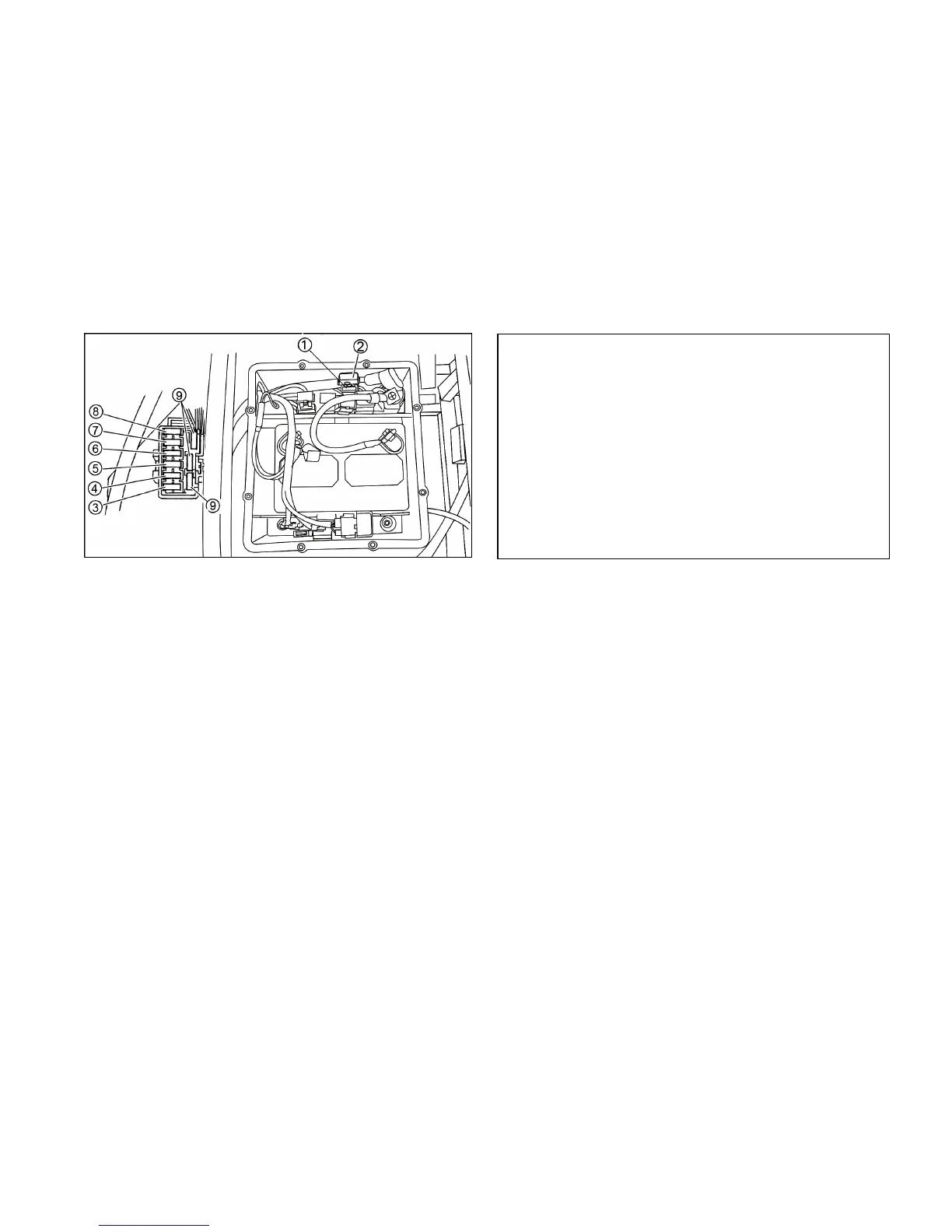

1. Main fuse 2. Spare main fuse
3. Headlight fuse 4. Ignition fuse
5. Auxiliary DC jack fuse
6. Four-wheel-drive motor fuse
7. Signaling system fuse
8. Backup fuse (for odometer and clock)
9. Carburetor warmer fuse
10. Spare fuse (×3)
Specified Fuse:
Main Fuse:
Headlight Fuse:
Ignition Fuse:
Auxiliary DC Jack Fuse:
Signaling System Fuse:
Carburetor Warmer Fuse:
Four-Wheel-Drive Motor
Fuse:
Backup Fuse:
30.0A
15.0A
10.0A
10.0A
10.0A
10.0A
3.0A
10.0A
4. Turn the key to “ON” and turn on the
electrical circuit in question to check if
the device operates.
5. If the fuse immediately blows again, have
a dealer check the electrical system.
6. Install the battery compartment cover.
7. Close the hood.
