4-11
On-Command Four-Wheel–Drive and
Differential Gear Lock Switches

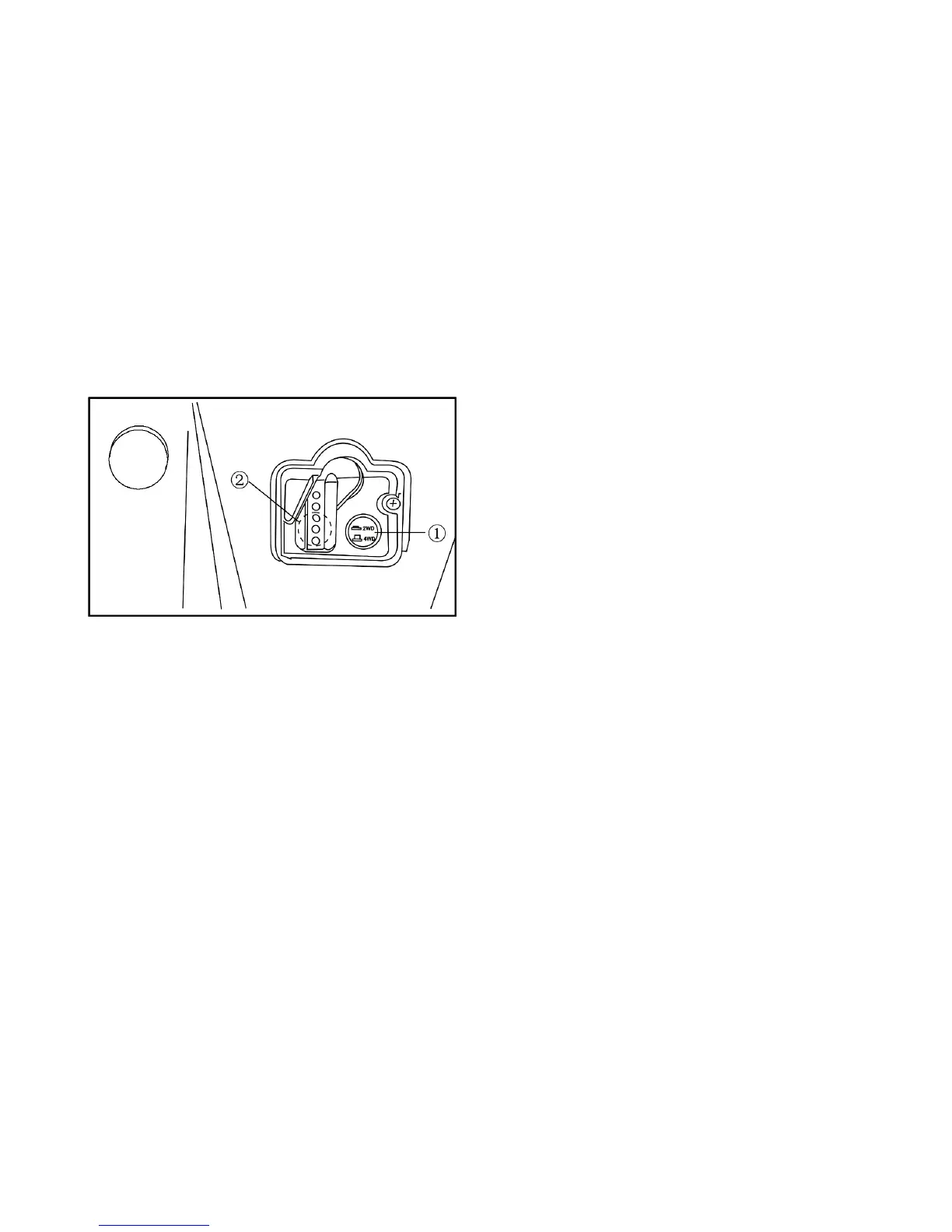

1. On-Command four-wheel –drive switch “2WD”/ “4 WD”
2. Differential gear lock switch “UNLOCK”/ “2WD”
This vehicle is equipped with an On comm-
and four–wheel-drive switch “2WD”/“4WD”
and a differential gear lock switch “2WD”/
UNLOCK”.
Select the appropriate drive according to
terrain and the conditions.
Only rear wheels have differential lock
mechanism.
Two-wheel drive (”2WD/DIFF-LOCK”):
Power is sup- plied to the rear wheels
only With the rear wheels differential gear
locked (red light “DIFF. LOCK” is on,) the
two rear wheels turn at the same speed
regardless of traction.
Four–wheel drive (“4WD/DIFF-LOCK”):
Power is supplied to the rear and front
wheels. With the rear wheels’ differential
gear locked (red light “DIFF. LOCK” is on,)
the two rear wheels turn at the same
speed regardless of traction.
Two-wheel drive with differential gear
(“2WD- Differential”): Power is supplied to
