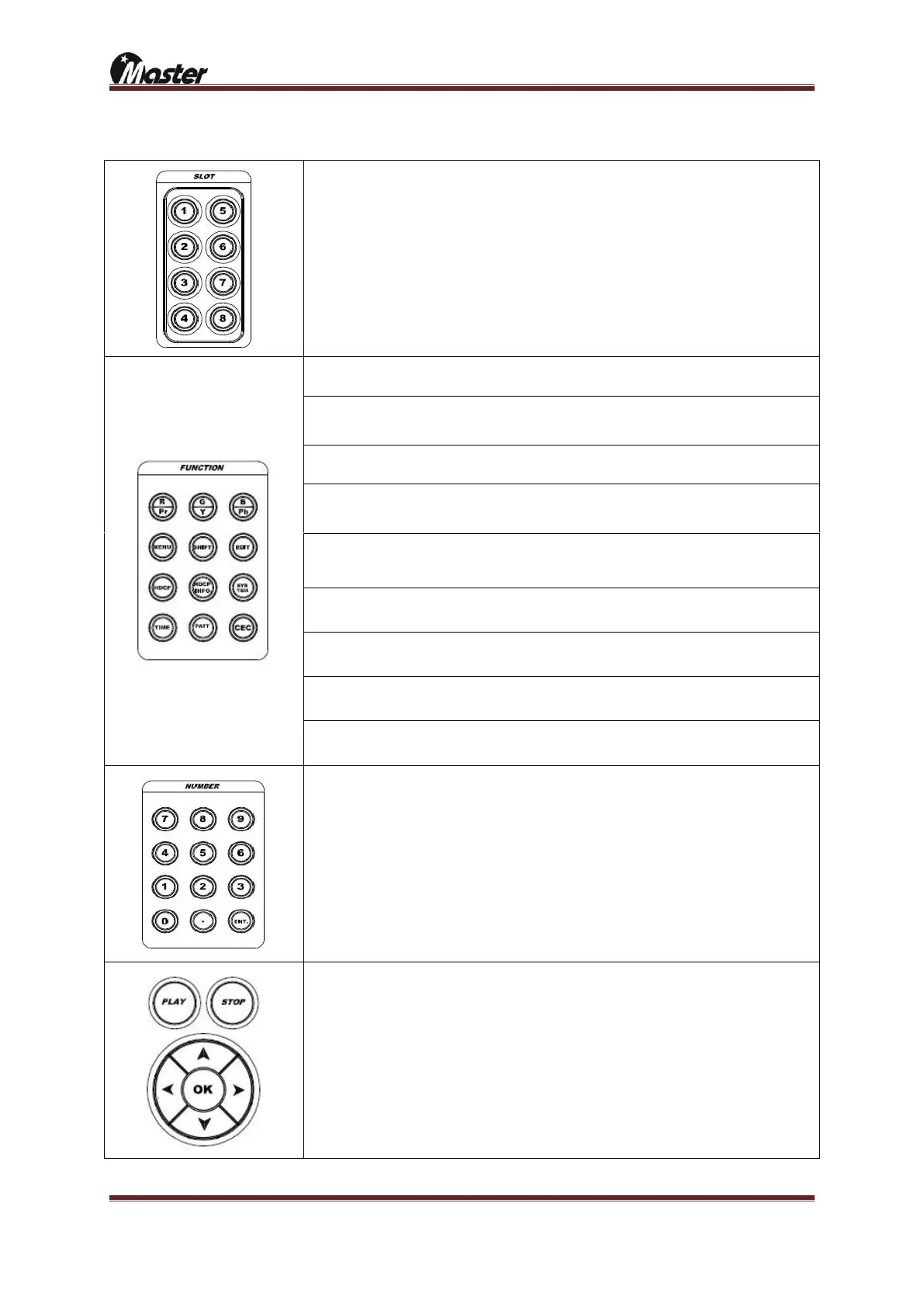

2) Front buttons
Slot select buttons 1 to 8 slots
 LED OFF: No slots are installed
 LED BLUE ON: Slots are installed
 LED RED ON: Slots are installed and selected
Red(Pr), Green(y), Blue(Pb) on/off button on the display.
MENU: Reverse pattern
SHIFT: SCAN rolling pause, download mode setting
HDCP(High-bandwidth Digital Content Protection) on/off button
HDCP INFO.: HDCP and EDID information display on the screen
SYSTEM: MSPG-8000 set up button
TIME: Resolution(Timing) select button
PATT: Pattern select button
CEC: CEC on/off button
Number and Enter button
PLAY: Play button with media player slot(will update)
STOP: Stop button with media player slot(will update)
Direction and enter button
