Master MSPG-8000 - Default Pattern and Option List

Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 94

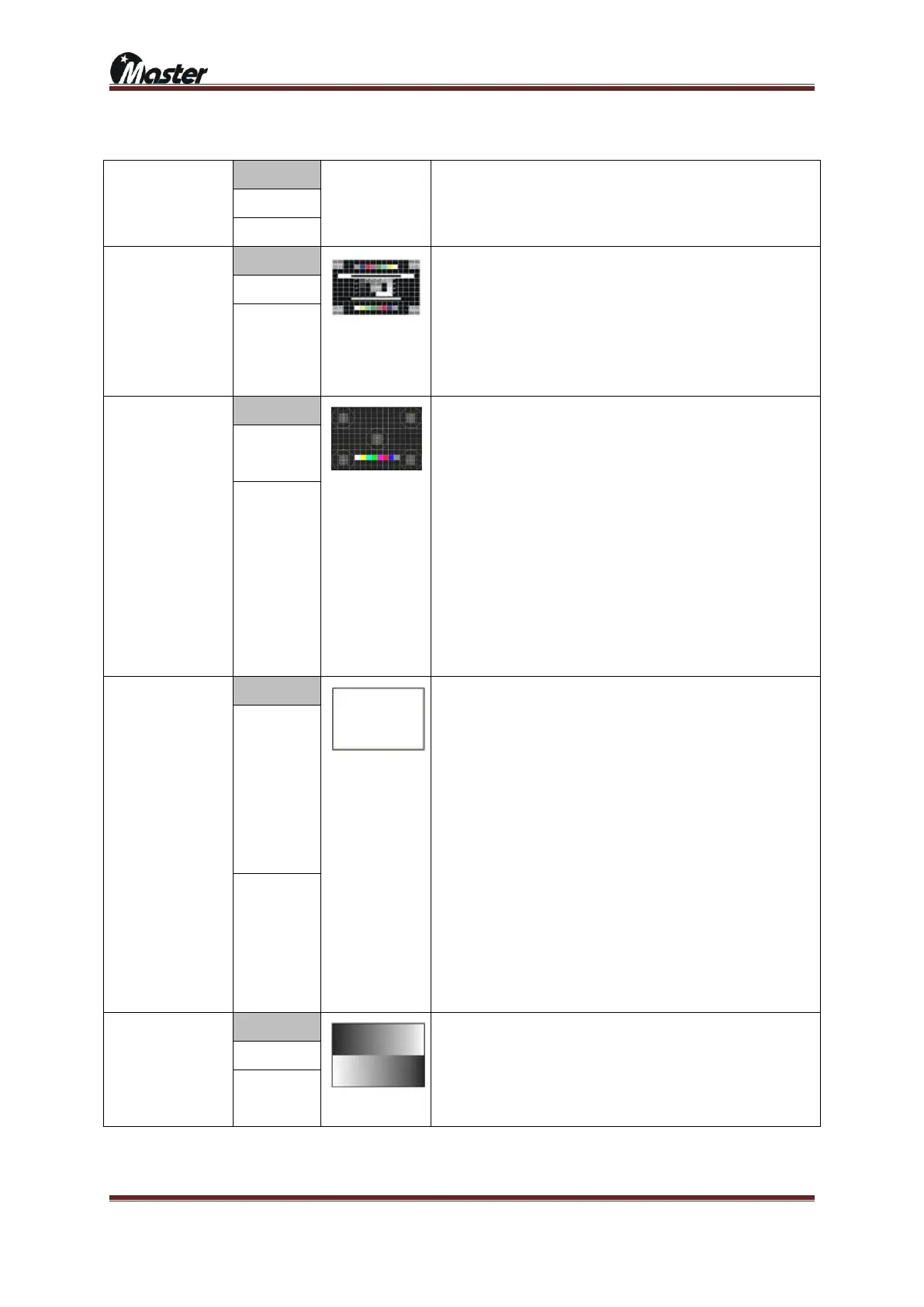

6.2 Default pattern and option list
Pattern name
Default No.
Pattern
Option List
A type time No.
B type time No.
Linearity check
pattern
Default 501
1.Position Box (0=Off, 1=On): Position Box setting On/off
2.Final Char (0=Off, 1=On):Character pattern setting on/off
3.Final Color (0=Off, 1=On):Color pattern setting on/off
4.EDID Check (0=Off, 1=On)
▶HDMI/DVI EDID check pattern,
if Display’s EDID header and check sum value are correct  Video On(Display)
if Display’s EDID header and check sum value are wrong  Video Off(No Signal)
4 ~38 Common option
7,15,17,24,30
25,80
Geometry check
pattern
Deflection linearity
check pattern
Default 502
1.Cross Hatch H Divide (2~64): Horizontal line divide 2 to 64
2.Cross Hatch V Divide (2~48): Horizontal line divide 2 to 48
3.H Dot width (1~10): Horizontal line width setting 1 to 10
4.V Dot width (1~10): Vertical line width setting 1 to 10
5.Dot / Char Style (0~6): Dot or Character pattern style change 0 to 6
6.Small 5 Circle (0=off, 1=On): Small 5 circle line on/off
7.Small / Medium Circle (0=Off, 1=Medium, 2=Small): Center circle on/off
8.Large Circle (0=Off, 1=On): Large circle on/off
9.Large Circle size (0~100%): Large circle size setting 0 to 100%
10.Color Sel (0=Off, 1=3Col, 2=8Col)
▶0: Color Off
▶1: Red, Green and Blue On
▶2: White, Yellow, Cyan, Green, Magenta, Red, Blue and Gray On
11.Outer Line (0=Off, 1=On): Outer Line on/off
12~46 Common option
38,39,40,41,
62,82
60,61,62,63,6
4,65,66,78,88,
89
Color Pattern
Default 503
1.Color Box H Start (0~100): Color Box Horizontal start setting 0 to 100
2.Color Box V Start (0~100): Color Box Vertical start setting 0 to 100
3.Color Box H Size (0~100): Color Box Horizontal size setting 0 to 100
4.Color Box V Size (0~100): Color Box Vertical size setting 0 to 100
5.Color Box R Level (0~255): Color Box Red level setting 0 to 255
6.Color Box G Level (0~255): Color Box Green level setting 0 to 255
7.Color Box B Level (0~255): Color Box Blue level setting 0 to 255
8.Background R Level (0~255): Background Red Level setting 0to 255
9.Background G Level (0~255): Background Green Level setting 0to 255
10.Background B Level (0~255): Background Blue Level setting 0to 255
11.Uniformity Position No. (5,9,10): Uniformity circle position setting
▶5: 5 uniformity point
▶9: 6 uniformity point
▶10: bigger 6 uniformity point
12.Uniformity Position Size (H Size/x) (0~100): Uniformity size setting 0 to100
13.Lip_Sync (on*100ms) (0 ~999): Video and audio On time setting 0 to 999
14.Lip_Sync (off*100ms) (0 ~999): Video and audio Off time setting 0 to 999
15~49 Common option
2,3,4,9,14,16,
23,34,35,36,3
7,45,46,47,48,
49,50,59,73,7
6,78,110,111,1
12,115,116
3,20,33,39,47,
48,49,50,51,8
6,338
Gray/Color
Scale Pattern
Default 504
1.Color/Gray Step (1~255): Gray Step setting 1 to 255
2.H Divide (1~16): Horizontal divide 1 to 16
3.V Divide (1~16): Vertical divide 1 to 16
4.Gray Direction (0~11): Gray Direction setting 0 to 11
5.Color Selector (0~1)
▶0: Gray Step ▶1: Color Step
12
32,71,335,336
,337
