4.3 Pattern
You can use various type patterns and edit them yourself.
4.3.1 How to call pattern

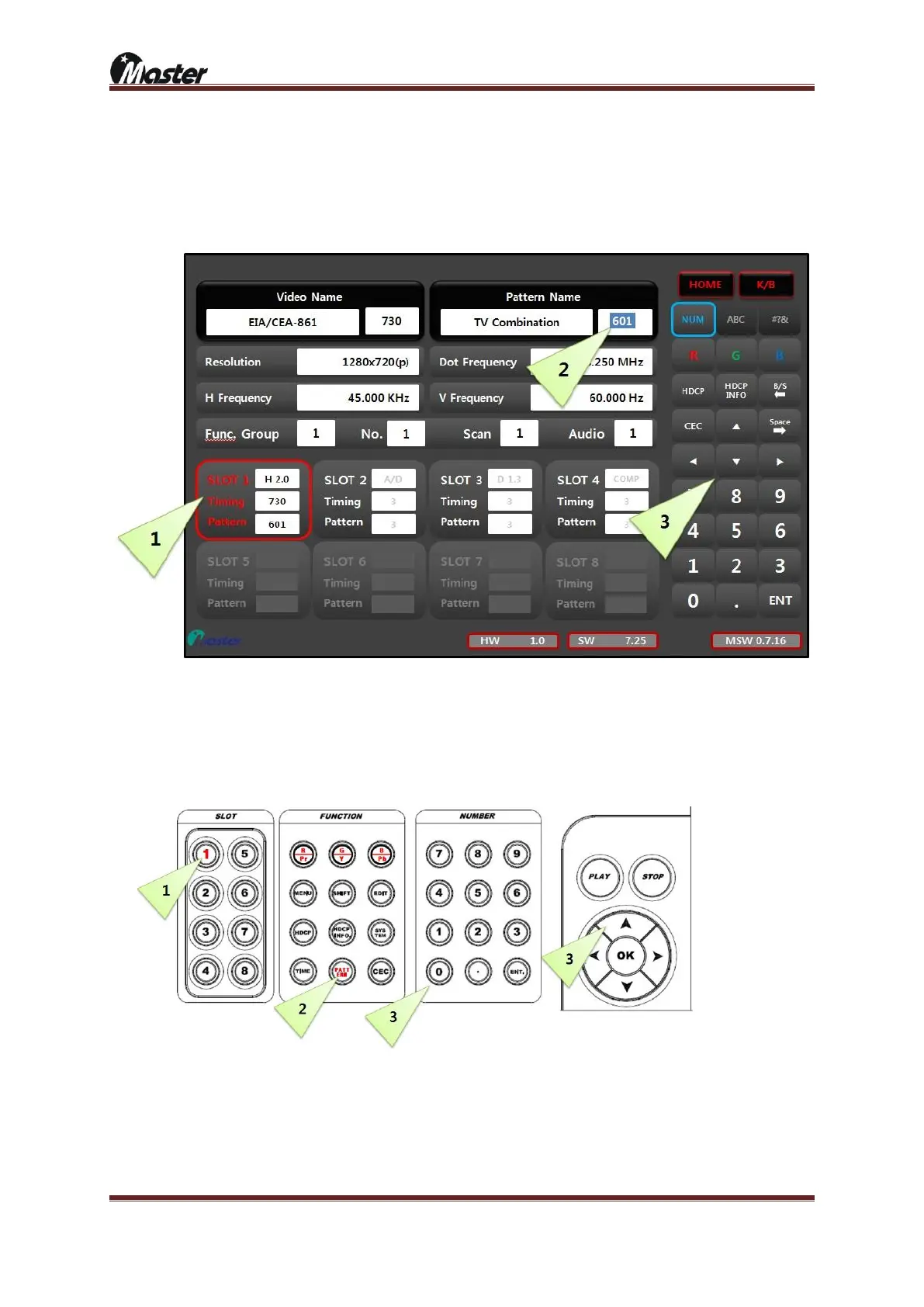

1) Pattern call using the touch screen
① Select slot number which you want to call pattern  Selected slot will change red and activate.
② Select Pattern Name box  Cursor will activate.
③ Check the pattern sticker and select pattern number.  Selected pattern will output to display equipment.
2) Pattern call using the keypad
① Select slot number which you want to change pattern  Selected slot will change red and activate.
② Select PATTERN button  PATTERN button will change to red.
③ Check the pattern sticker and select pattern number.  Selected pattern will output to display equipment.
