Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 21
Chapter 3. Mounting slots and starting the MSPG-8000
1.1 Mounting slots to MSPG-8000

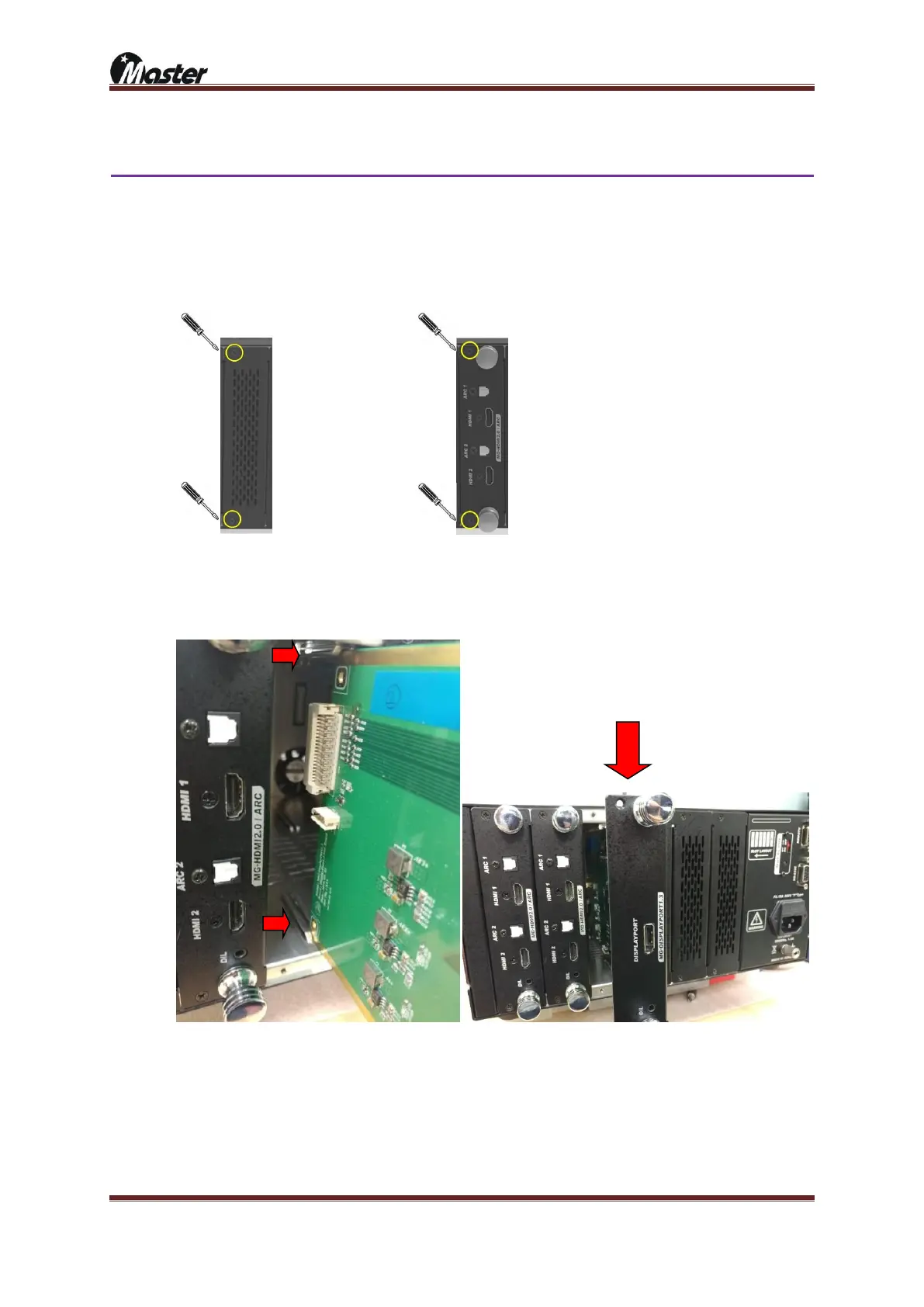

① Turn off the MSPG-8000 and disconnect power cord from MSPG-8000.
② Use a cross screwdriver to loosen the empty slot cover or old slot.
(empty slot cover) (old slot)
③ Take out the empty slot cover or old slots from MSPG-8000.
④ Insert the prepared new slot gently into the desired empty slot, as shown in the below picture.(*Caution:
Please check the orientation as it may be inserted upside down.)
⑤ Tighten the bolts to original position.
⑥ Turn on the MSPG-8000
⑦ The MSPG-8000 will automatically recognize to all installed slots.
