4.5 Function
FUNCTION is designed for calling timing and patterns at once. This feature provides
simple commands for frequently used inspection patterns and timings. It is more
useful with MSRC-009L.
4.5.1 Function

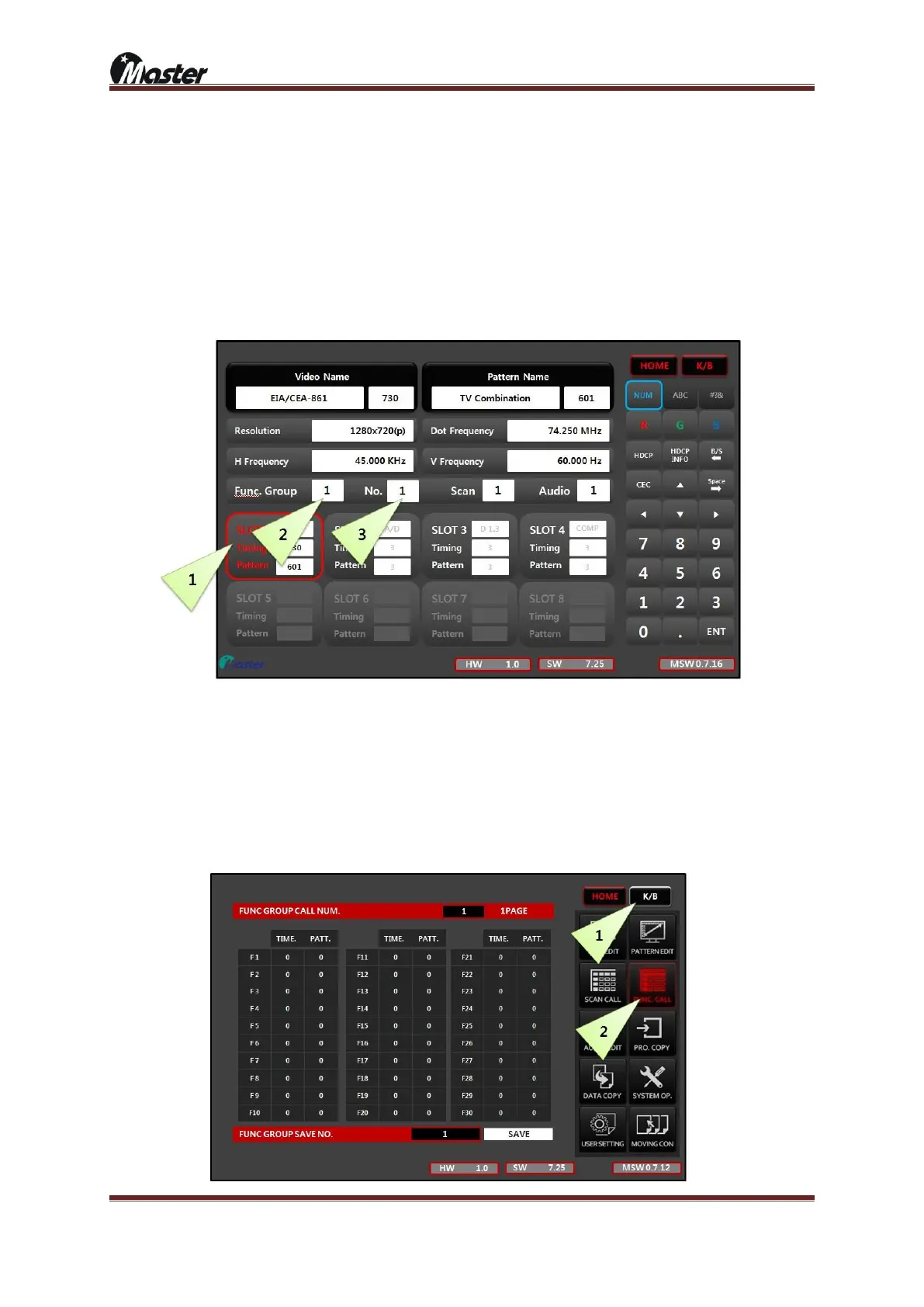

1) How to call saved Function list.
④ Select slot number which you want to change function  Selected slot will change red and activate.
⑤ Select Func. Group number  Cursor will activate
⑥ Select No. number  Set up the timing & pattern will calling.
2) How to edit Function
① Select slot number which you want to change function  Selected slot will change red and activate.
