② Press “K/B” and “SCAN CALL” for scan edit.
③ Set up the “TIME”, “PATT” and “SEC.”
i. “TIME”: Resolution number.
*If you want to change only pattern, please set up the same timing number.
ii. “PATT”: Pattern number.
iii. “SEC.” Time & Pattern display time/Sec.
*Please set up over 4~5 second, so our generator & display equipment can response the signal.

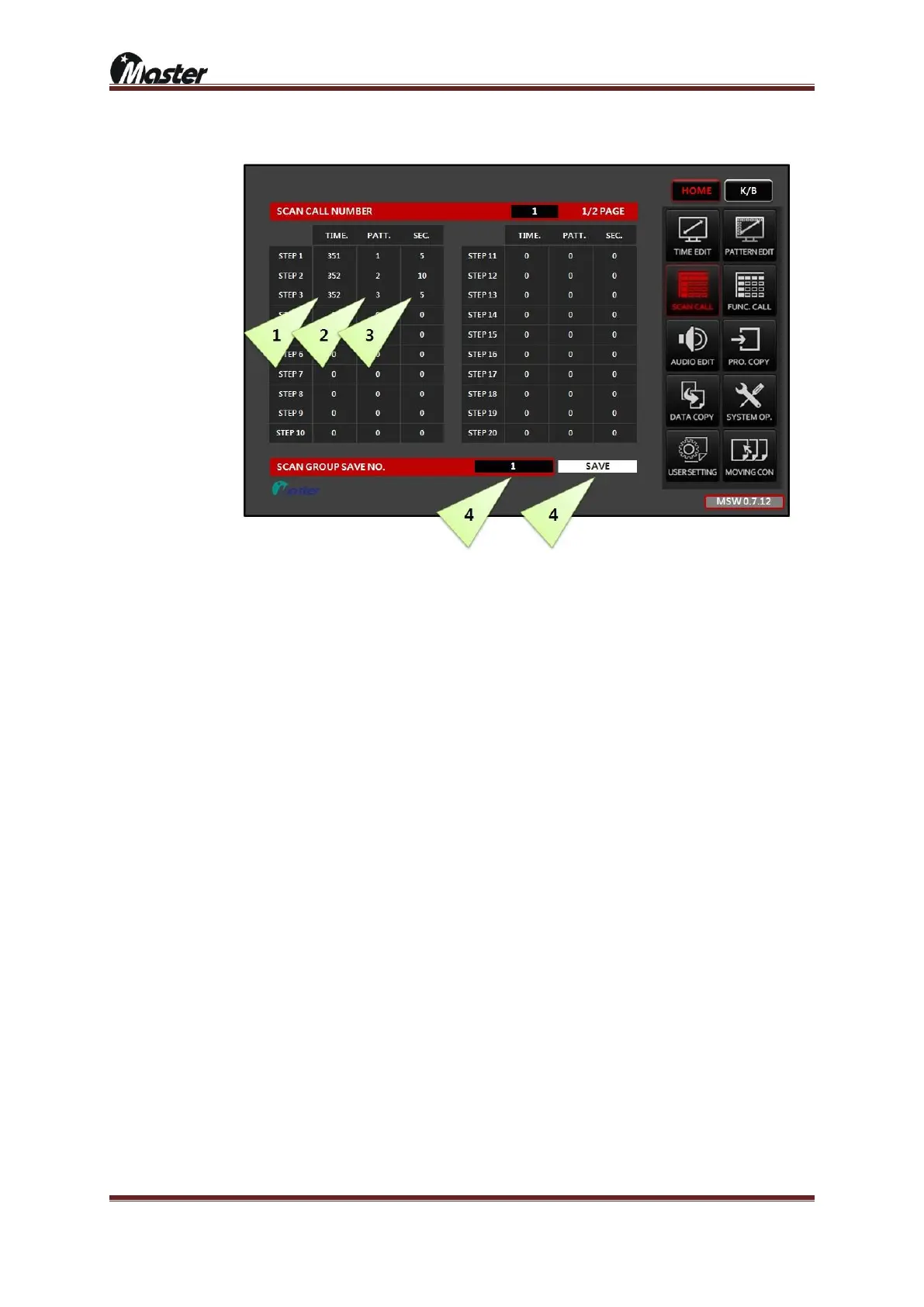

*Above image example:
 Time 351 & Pattern 1 together display while 5 second.
 Time 352 & Pattern 2 together display while 10 second.
 Timing changed 351 to 352, so it will be flash to once.
 Time 352 & Pattern 3 together display while 5 second.
 Timing is same 352 to 352, so it just change pattern without flash.
④ Select save number 1~99 and press “SAVE” button.(password is ”8880”)
⑤ If you want to stop the SCAN, press time button and call new timing.
*Press “SHIFT” button for pause scan rolling.
