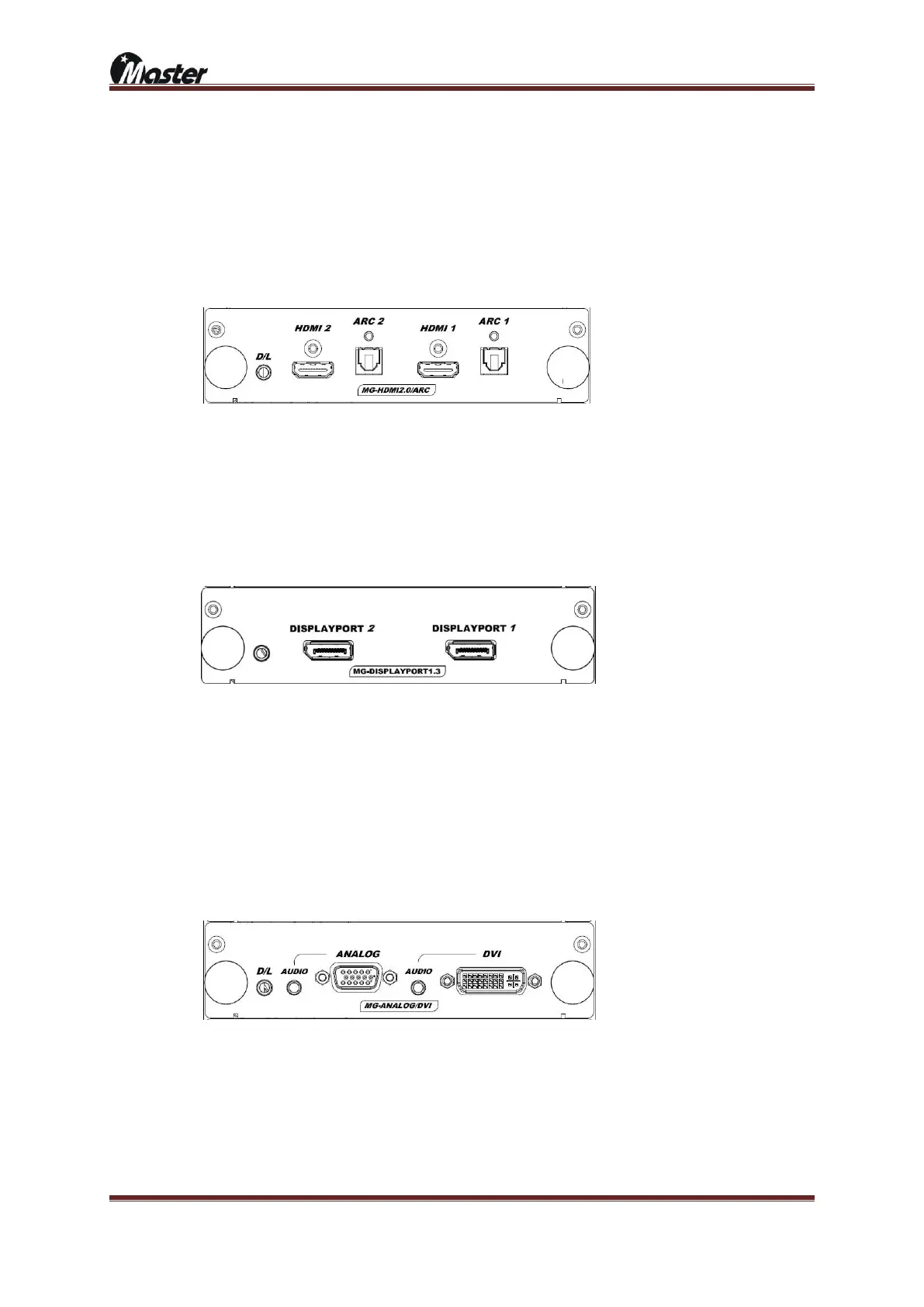

2.2 Introduction to slots
1) “MG-HDMI2.0/ARC” : HDMI 2.0 4K/60Hz outputs & ARC outputs
① Output signal: HDMI 2.0Ver x 2port & Optic ARC
② Output Spec.: 25MHz~600MHz / 4Kx2K@60Hz (600MHz)
③ Supports to HDCP 2.2, ARC 2Ch, HDR(HDR-10/HLG), EDID and CEC
④ D/L: slot upgrade port
2) “MG-DISPLAYPORT1.3” : DISPLAYPORT 1.3Ver 4K/60Hz outputs
① Output signal: DISPLAYPORT 1.3Ver x 2port
② Output Spec.: 8Kx4K@30Hz (HBR3)
③ Supports to HDCP 2.2 and EDID read
④ D/L: slot upgrade port
3) “MG-ANALOG/DVI” : ANALOG, DVI DUAL, AUDIO outputs
① Output signal: ANALOG x 1port & DVI DUAL x 1port & AUDIO 2Ch
② Output Spec.
 ANALOG(8~250MHz)
 DVI DUAL(25~330MHz)
③ Supports to DVI HDCP 1.3 and ANALOG/DVI EDID read
④ D/L: slot upgrade port
