Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 10

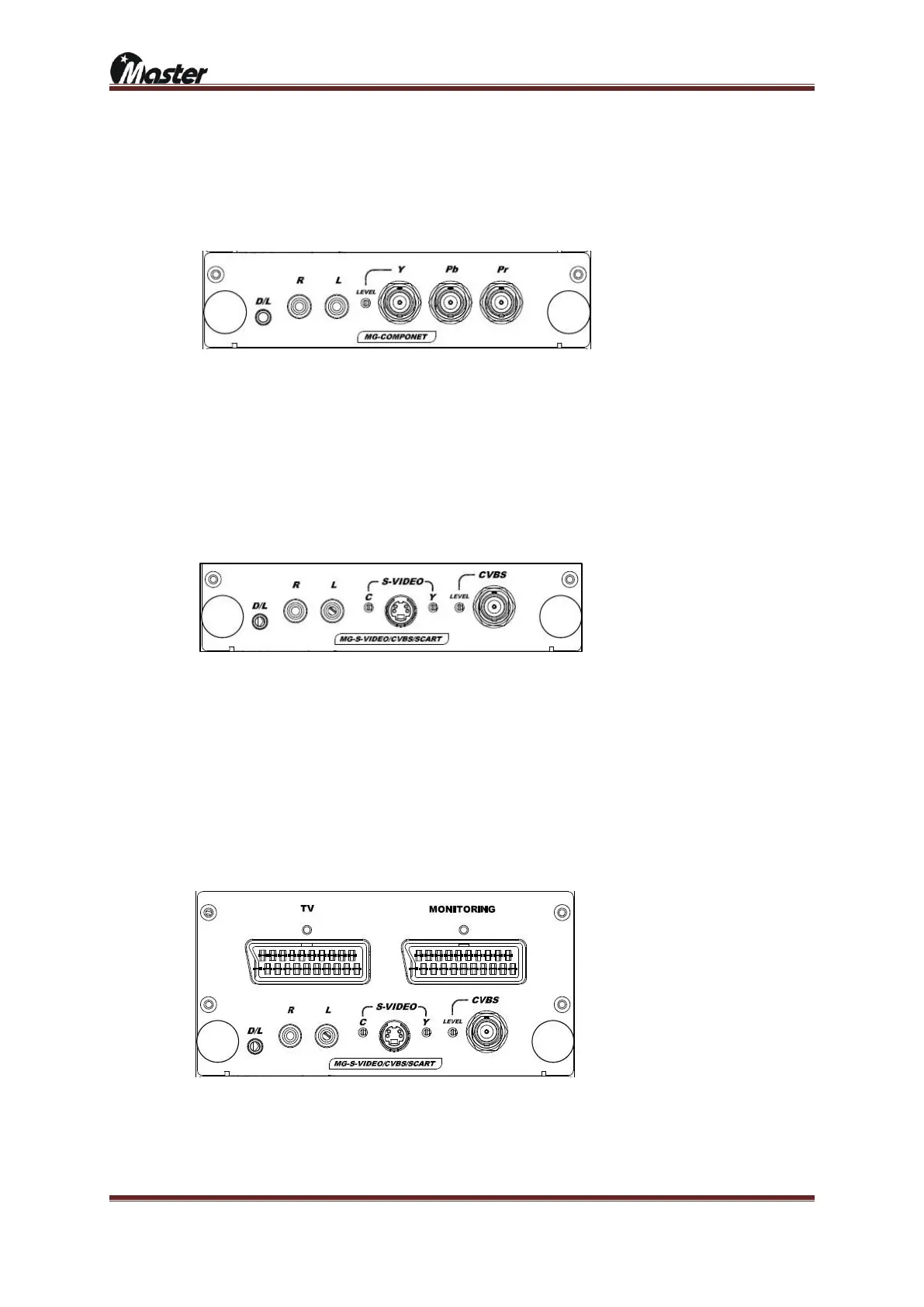

4) “MG-COMPONENT” : COMPONENT. AUDIO R/L outputs
① Output signal: COMPONENT x 1port & AUDIO R/L
② Output Spec.: COMPONENT: Y, Pb, Pr (480i/p, 576i/p, 720p, 1080i/p for ATSC and DVB Format)
③ D/L: slot upgrade port
5) “MG-S-VIDEO/CVBS”: S-VIDEO & CVBS & AUDIO R/L outputs
① Output signal: S-VIDEO x 1port & CVBS x 1port & AUDIO R/L
② Output Spec.
 S-VIDEO & CVBS: NTSC M/J(3.58MHz), NTSC 443(4.4MHz),
PAL B/D/G/H/I(4.434MHz), SECAM (For=4.406Mhz/For=4.25MHz)
③ D/L: slot upgrade port
6) “MG-S-VIDEO/CVBS/SCART”: S-VIDEO&CVBS&SCART & AUDIO R/L outputs
① Output signal: S-VIDEO x 1port & CVBS x 1port & SCART x 2port & AUDIO R/L
② Output Spec. (2slot size)
 S-VIDEO & CVBS: NTSC M/J(3.58MHz), NTSC 443(4.4MHz),
PAL B/D/G/H/I(4.434MHz), SECAM (For=4.406Mhz/For=4.25MHz)
 SCART: PAL only
③ D/L: slot upgrade port
