Masterclock GMR5000 User Manual



MasterclockGMRUserManualv2–2016.12
21
 Unitswith6‐digitLEDswillshowall8s,thenwilldisplaytimeand/ordateaccordingtothesettingstheuser
hasmade.
 YellowNTPLEDsignifyingNTPstatus:Off
 YellowPTPLED(ifpresent):Off
 GreenLOCKLED:Blinkstwicepersecond,withtimeincrementingeach
second.Thisindicateslocktointernal
OCXOoscillatorandacquiringlocktoanexternalsource,ifapplicable.
 GreenLOCKLED:Blinkstwicepersecond.Thisindicatessynchronizationtoanexternalreference

CONFIGURETHEGMR
USINGYOURPREFERREDMETHOD
Atthistime,theGMRcancommunicatewithWinDiscovery,whichcandetectandidentifytheGMRthroughthe
exchangeofbroadcastmessages,evenwhenTCP/IPnetworkingparametersarenotconfiguredonthesame
network.
OncetheGMRhasavalidnetworkconfigurationandtheIPaddressoftheunitisknown,
itcanalsobeaccessed
andconfiguredviaSSHorTelnetbycomputersinthesamenetwork.


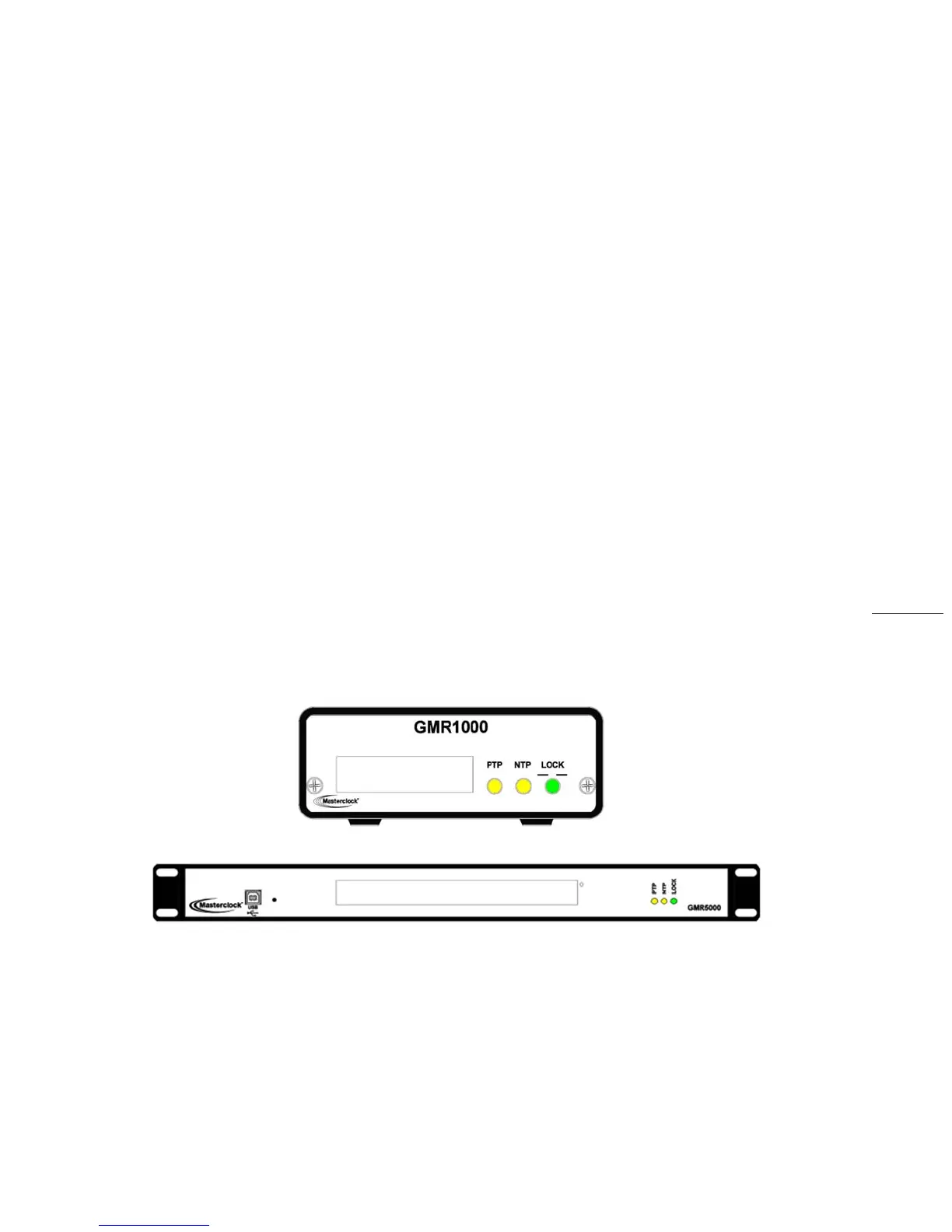

FRONTPANEL‘LED’STATUS
GMRmodelshaveLEDsonthefrontpaneltoshowstatus.
Theleft‐mostyellowLED(labeledPTPforPrecisionTimeProtocol,IEEE1588)flashesbrieflywitheveryPTPdelay
request(PTPisanoptionalfeature).
ThecenteryellowLED(labeled:NTPforNetworkTimeProtocol)flashesbrieflywithevery
NTPrequest.
Theright‐mostgreenLED(labeled:LockorSync)blinkstwicepersecondwhenthedeviceisnotlockedtoa
reference,andoncepersecondwhensyncedtoanexternalreferencesuchasGPS,PTP,TimeCode,asNTP.



