Masterclock GMR5000 User Manual



MasterclockGMRUserManualv2–2016.12
37

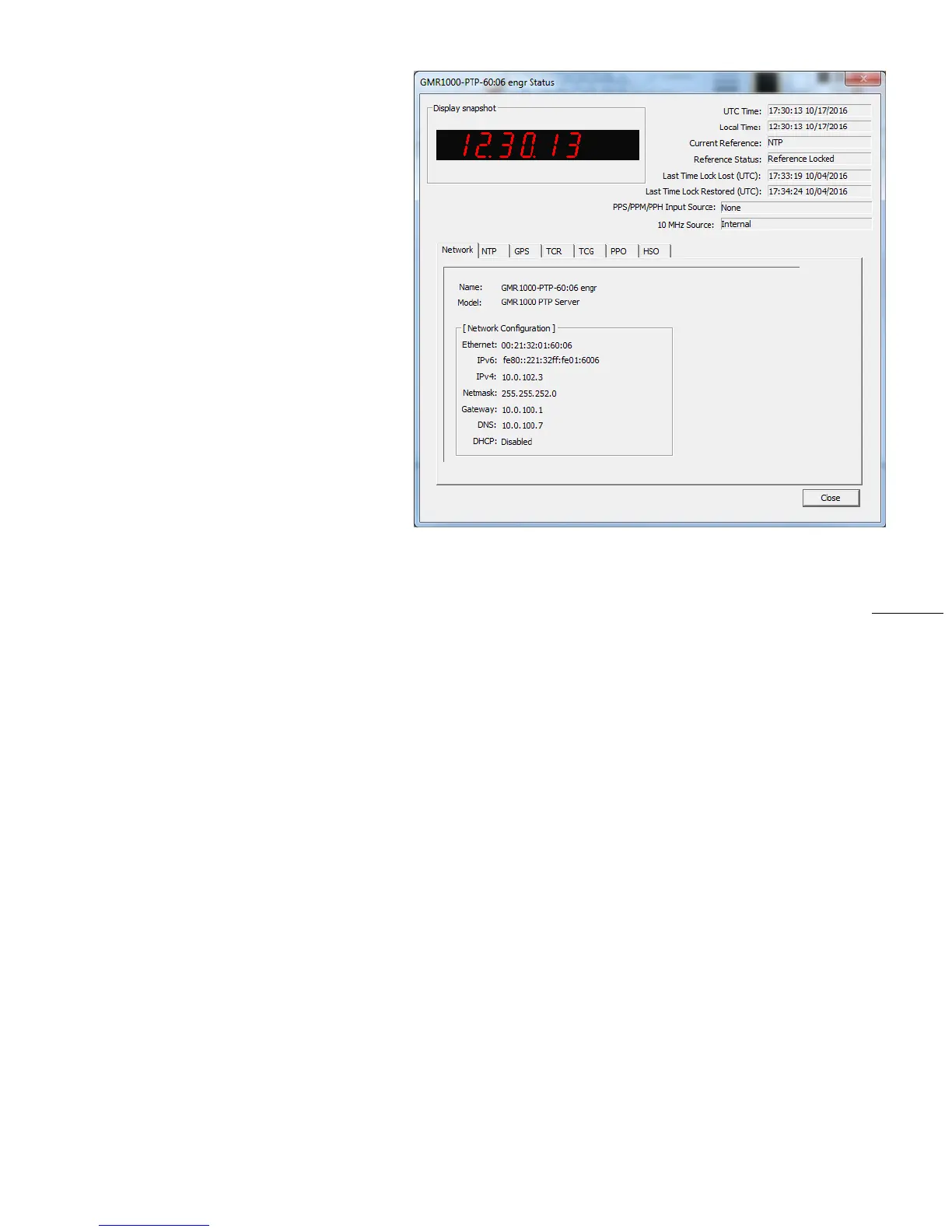

STATUS
AtthebottomleftoftheDeviceSettings
windowistheStatusbutton.Clickingit
showsthewindowshowingthedynamic
qualitiesandquantitiesofthedevice.
TheStatuswindowincludesaDisplay
Snapshotofagraphicdigitalclock
representingthefaceoftheactualGMRin
realtime.
Onthe
toprightappeartheUTCTimeand
date,LocalTimeanddate,theCurrent
Reference(inthiscaseGPS),theReference
Status(inthiscaseLocked)andtwofields
listingLastTimeLockLostandRestored.
ThoseGMRswiththeSyncInputoptionwill
showtheoriginofthesync
inthePPSInput
Sourcefield.Thosewiththeoptionofa10
MHzinputwillshowthesource,either
internalorexternal.
ThebottomoftheStatuswindowhastabs
foreverymajorfunctionofthedevice.Atab
willdisplayonlyifthatfunctionisinstalledandworking.
NetworkTab
Includesthenameofthedevice,themodelofthedeviceandasummaryofthenetworkconfiguration,muchof
thisdataisrepeatedfromthenetworkconfigurationwindowdescribedearlier(page20).
NTPTab
ShowsiftheNTPserverisenabled,plusthenumberofNTPrequestsservice
andtheserverstratum.Alsoshowsif
theNTPclientisenabled,includingindicationsfortheactiveserver,theNTPstatus,thelastNTPtimestamp,the
largesttimeadjustment,andtheaveragetimeadjustment.
GPSTab
IncludestimeanddateforLockLost(UTC),LockRestored(UTC),yourgeographical
position,receiverdetailsanda
listofthesatellitestheGPSantennaislisteningto(inthiscasenine)andtheirindividualSNR(signal‐to‐noiseratio,
with41.0asthehighestquality).ThistabappearsonlyifaGPSreceiverisinstalled.
TCGTab
IncludestheTypeofCodeBeing
Generated,theRawTimeCodeandtheTimetoGenerate,whichiswhatyou
choseofUTC,LocalorCustom.
TCRTab
IncludestheTypeofCodethedeviceislocked,thelasttimelockwaslost,thelasttimelockwasrestored,andthe
RawTimeCode
.
PPOTab
IncludestheOutputMode,theOutputState,andtheOutputLevel.
HSOTab
IncludestheCurrentCalibrationLevelofthehigh‐stabilityoscillatorandtheOscillatorVoltageLevel.

