model no. 055-6751-6 | contact us 1-800-689-9928
• Engage the trigger to turn the saw on.
• When the saw reaches full speed, slowly push the switch handle down, cutting through the leading
edge of the workpiece.
• Slowly move the switch handle toward the fence, completing the cut.
• Release the trigger and allow the blade to stop spinning before raising the cutting head and removing
the workpiece.

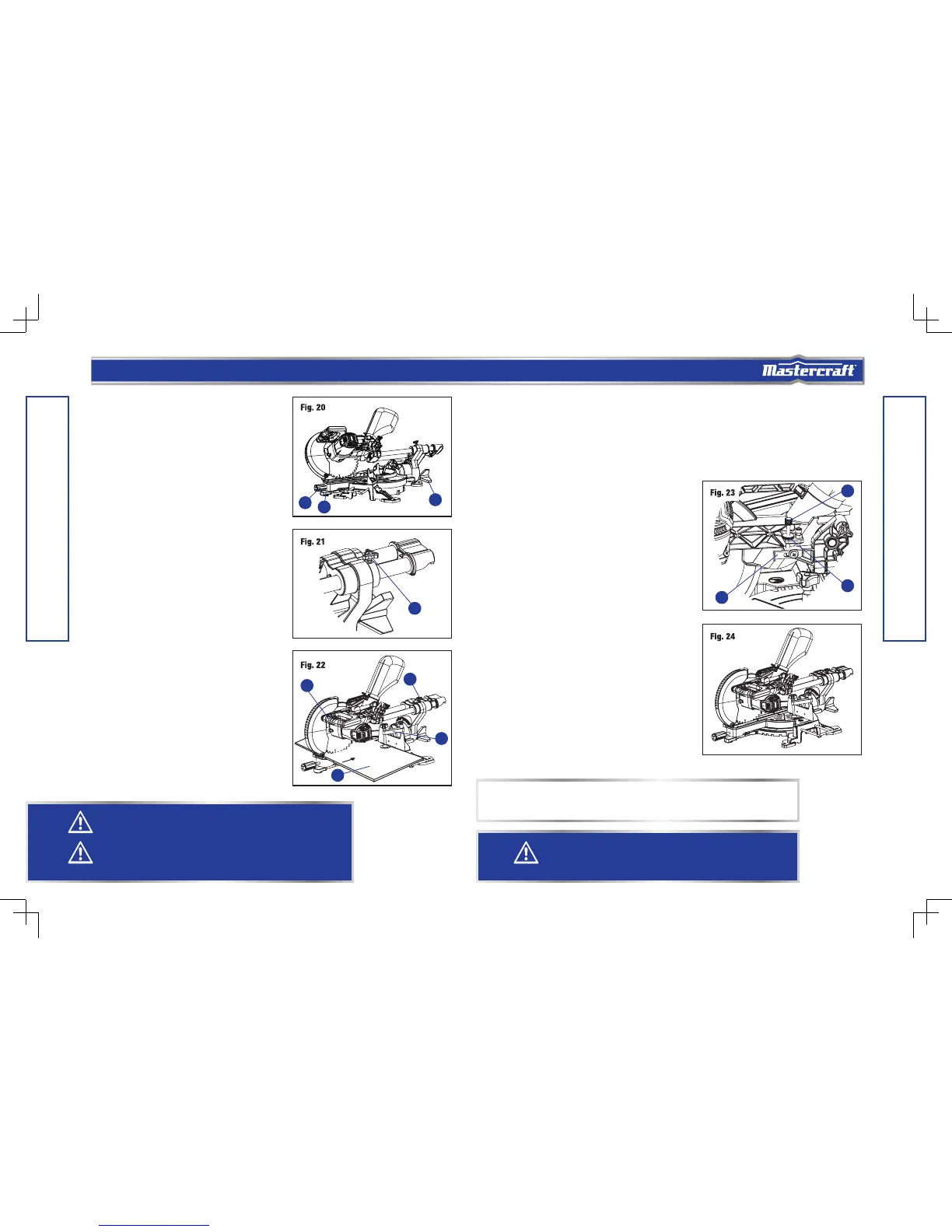

SETTING CUTTING DEPTH
The depth of cut can be preset for even and repetitive
shallow cuts.
• Slide the stop plate (1) towards the front position.
• Loosen the lock nut (2) to free the lock knob (3), turn
the stop knob until the cutting head down until the
teeth of the blade are at the desired depth.
• While holding the upper arm in that position, tighten
the lock nut to secured the stop knob.
• Recheck the blade depth by moving the cutting head
front to back through the full motion of typical cut
along the control arm.
CUTTING GROOVES
• Mark lines to identify the width and depth of the
desired cut on the workpiece and put the workpiece
on the table and aim the inside tip of the blade at the
line. Use a work clamp to secure the workpiece on the
table.
• Lower the cutting head so the tip of the blade touches
the top surface of the workpiece at the marked line.
• While holding the upper arm in position, loosen the
lock nut and turn the stop knob until it touches the
stop plate, then retighten the lock nut.
• Loosen the bevel lock knob (1) and position the cut-
ting head at the desired bevel position. Lock the bevel
lock knob.
• Loosen the mitre handle (2). Lift up the positive stop
locking lever (3) and position the table at the desired
angle. Release the positive stop locking lever and lock
the mitre handle.
SLIDING CARRIAGE SYSTEM
• For chop cutting operations on small workpieces,
slide the cutting head completely toward the rear of
the unit and tighten the carriage lock knob (1).
• To cut wide boards up to 12” (30.5 cm), the carriage
lock knob must be loosened to allow the cutting head
to slide freely.
SLIDE CUTTING WIDE BOARDS UP TO
12” (30.5 cm) WIDE
To avoid injury:
• Let the blade reach full speed before cutting. This will
help reduce the risk of a thrown workpiece.
• Do not make crosscuts by lowering the blade and
pulling the cutting head through the wood toward you.
To Slide Cut Wide Boards
• Unlock the carriage lock knob (1) and allow the cut-
ting head assembly to move freely.
• Set both the desired bevel angle and/or the mitre
angle and lock into position.
• Use a work clamp (2) to secure the workpiece (3).
• Grasp and pull the switch handle (4) forward until
the centre of the saw blade is over the front of the
workpiece.
1
OPERATING INSTRUCTIONS
CAUTION!
To reduce the risk of injury, return carriage to the full rear position after each crosscut operation.
CAUTION!
Always use a work clamp to maintain control and reduce the risk of workpiece damage and
personal injury.
WARNING!
DO NOT USE A DADO BLADE, use only the standard saw blade for this operation.
OPERATING INSTRUCTIONS
NOTE:
Always perform a dry run cut so you can determine if the operation being attempted is possible before
power is applied to the saw.
1
2
3
1
2
3
1
2
3
4
