30 31
model no. 055-6751-6 | contact us 1-800-689-9928
SAWDUST
Periodically, sawdust will accumulate under the table and base. This could cause difculty in the movement
of the table when setting up a mitre cut. Frequently blow out or vacuum up the sawdust.
LOWER BLADE GUARD
Do not use the saw without the lower blade guard.
The lower blade guard is attached to the saw for your protection. Should the lower guard become damaged,
do not use the saw until the damaged guard has been replaced. Check regularly to make sure the lower
guard is working properly. Clean the lower guard of any dust or buildup with a damp cloth.

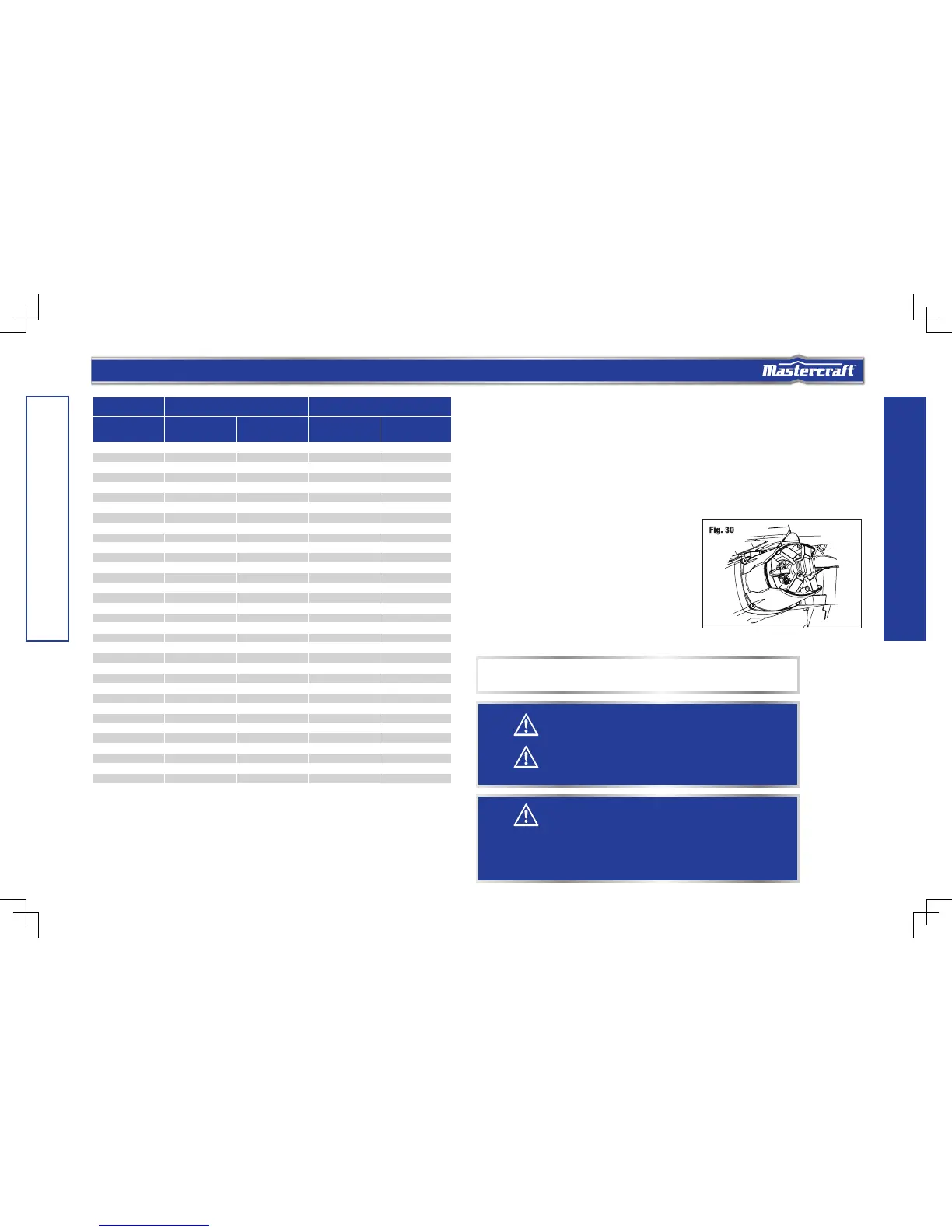

REPLACING CARBON BRUSHES
Replace both carbon brushes when either has less than
1/4” (0.6 cm) length of carbon remaining, or if the spring or
wire is damaged or burned. To inspect or replace brushes,
rst unplug the saw. Remove the two screws on the back
cover of the motor and take the cover off. Move the coil
spring which press on the carbon brush to other side to
free the carbon brush. Pull out the brush and the wire
which connect to the holder. Replace it for a new carbon
brush. When replace for the other side. To reassemble, re-
verse the procedure. Tighten two screws on the back cover.
This will avoid a break-in period that reduces motor performance and increases wear.
OPERATING INSTRUCTIONS
MAINTENANCE
WARNING!
• To avoid re or toxic reaction, never use gasoline, naphtha acetone, lacquer thinner or similar
highly volatile solvents to clean the mitre saw.
• To avoid injury from unexpected starting or electrical shock, unplug the power cord before
working on the saw.
• For your safety, this saw is double-insulated. To avoid electrical shock, re or injury, use
only parts identical to those identied in the parts list. Reassemble exactly to avoid electrical
shock.
CAUTION!
If blowing sawdust, wear proper eye protection to keep debris from blowing into eyes.
CAUTION!
• Do not use solvents on the guard. They could make the plastic cloudy and brittle.
• When cleaning the lower guard, unplug the saw to avoid unexpected start-up.
NOTE:
To reinstall the same brushes, first make sure the brushes go back in the way they came out.
52/38° CROWN MOULDING 45/45° CROWN MOULDING
146 10.66 13.32 12.20 11.93
147 10.34 12.93 11.83 11.59
148 10.01 12.54 11.46 11.24
149 9.69 12.16 11.09 10.89
150 9.37 11.77 10.73 10.55
151 9.05 11.38 10.36 10.20
152 8.73 10.99 10.00 9.85
153 8.41 10.60 9.63 9.50
154 8.09 10.21 9.27 9.15
155 7.77 9.82 8.91 8.80
156 7.46 9.43 8.55 8.45
157 7.14 9.04 8.19 8.10
158 6.82 8.65 7.83 7.75
159 6.51 8.26 7.47 7.40
160 6.20 7.86 7.11 7.05
161 5.88 7.47 6.75 6.70
162 5.57 7.08 6.39 6.35
163 5.26 6.69 6.03 6.00
164 4.95 6.30 5.68 5.65
165 4.63 5.90 5.32 5.30
166 4.32 5.51 4.96 4.94
167 4.01 5.12 4.61 4.59
168 3.70 4.72 4.25 4.24
169 3.39 4.33 3.90 3.89
170 3.08 3.94 3.54 3.53
171 2.77 3.54 3.19 3.10
172 2.47 3.15 2.83 2.83
173 2.15 2.75 2.48 2.47
174 1.85 2.36 2.12 2.12
175 1.54 1.97 1.77 1.77
176 1.23 1.58 1.41 1.41
177 0.92 1.18 1.06 1.06
178 0.62 0.79 0.71 0.71
179 0.31 0.39 0.35 0.35
