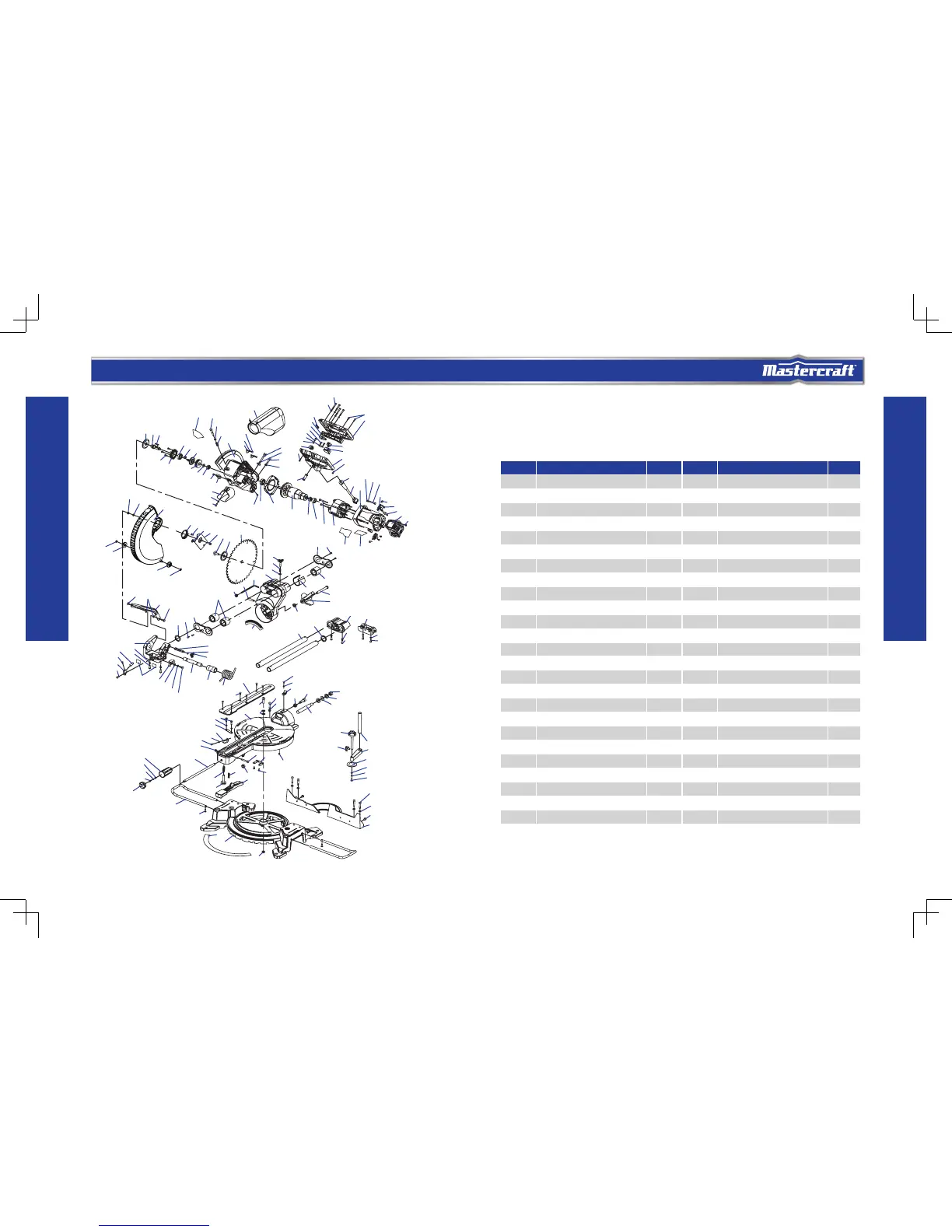

EXPLODED VIEW PARTS LIST
MASTERCRAFT
®
10” (25.4 CM) SLIDING COMPOUND MITRE SAW
When servicing the Mastercraft
®
Sliding Compound Mitre Saw with Laser Line, use only Mastercraft
®
replacement parts. The use of any other parts may cause damage to the product. All servicing of the mitre
saw should be performed by a qualied service technician. For more information, call the Toll-Free Helpline
at 1-800-689-9928.
     
01 Screw 8 26 Bearing sleeve 1
02 Washer 12 27 Bearing 2
03 Self-tapping screw 8 28 Rotor 1
04 Top handle 1 29 Inner wire cord sleeve 1
05 Trigger spring 1 30 Fan guide 1
06 Trigger 1 31 Bearing 1
07 Micro-switch 1 32 Hexagon screw 2
08 Screw 6 33 Hexagon nut 2
09 Power cord press plate 1 34 Hexagon screw 6
10 Terminal 1 35 Knurled nut 1
11 Laser switch 1 36 Adjustment screw 1
12 Transformer 1 37 Cable tie 2
13 Lower handle 1 38 Flat washer 6
14 Rubber sleeve 1 39 Screw 17
15 Power cord and plug 1 40 Dust bag 1
16 Motor housing 1 41 Fixed guard 1
17 Spring washer 4 42 Spindle locking spring 1
18 Brush holder 2 43 Circlip 1
19 Coil spring 2 44 Spindle locking pin 1
20 Carbon brush 2 45 Brand label 1
21 Motor housing cover 1 46 Dust collection tubo 1
22 Warning label 1 47 Stopping block 1
23 Rating label 1 48 Circlip 1
24 Stator 1 49 Gear 1
25 Self-tapping screw 2 50 Stopping plate 1
