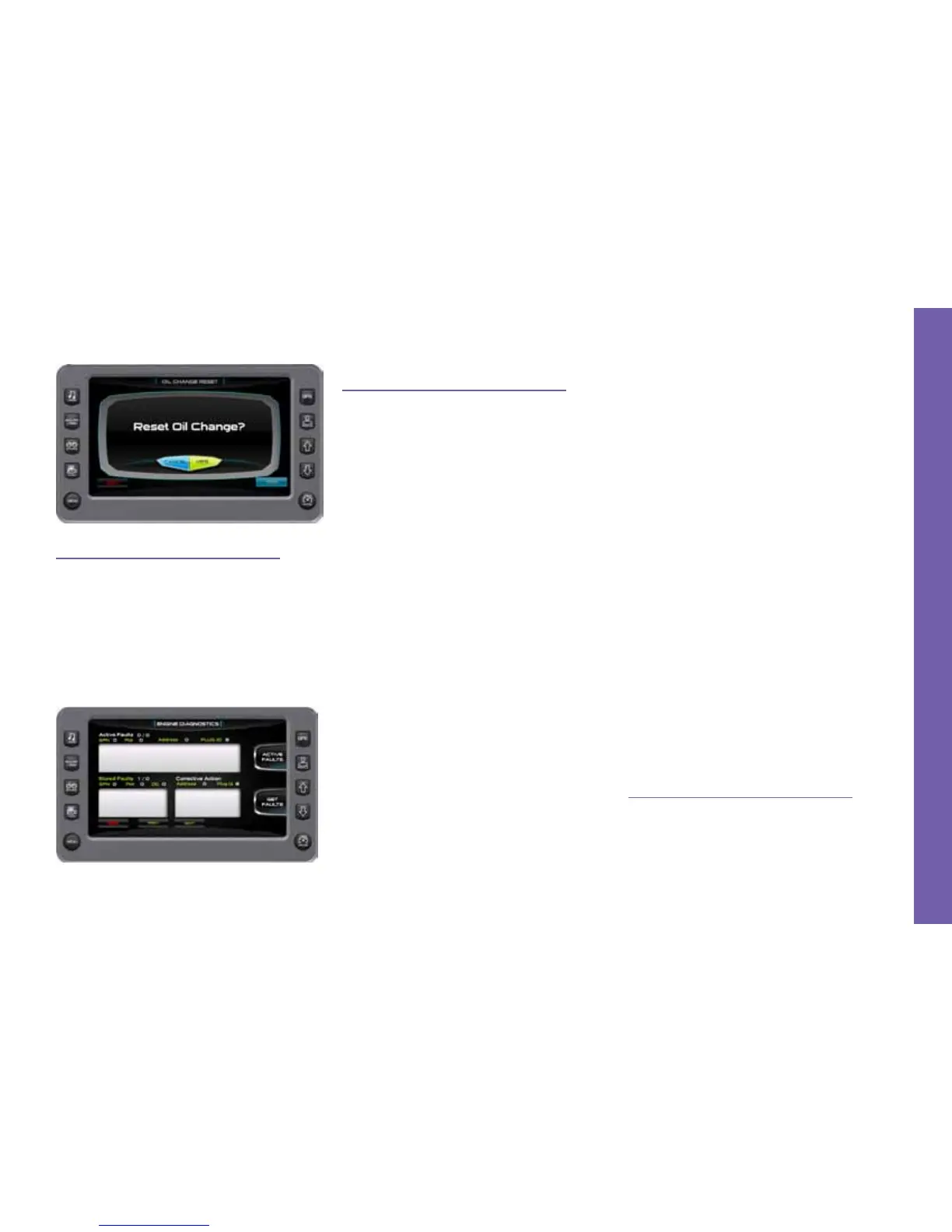

Oil Change Reset
This is a dealer-only screen that pro-
vides the dealer with a method to reset the
engine hours for service. An Oil Change
alert is displayed the rst time after ten (10)
engine hours. Subsequent alerts are dis-
played at fty (50) engine hour intervals.
Engine Diagnostics
When choosing this selection, the dis-
play will query the engine’s ECU, as illus-
trated, and provides feedback on any diag-
nostic codes that have been activated and
stored in the ECU for service needs.
The following is a list of eld denitions
contained on the ENGINE DIAGNOS-
TICS screen:
Active Faults/Stored Faults
This shows the number of active faults,
along with which fault number is cur-
rently being displayed. To advance to the
next fault, touch [NEXT]. Touch [PREV]
to go back to the previous fault. Touching
[BACK] returns to the Settings menu.
• SPN—“Suspect Parameter Number”—
fault code
If not translated into text by the display,
contact an authorized MasterCraft dealer
for the denition of the SPN number.
• FMI—“Failure Mode Indicator”—fault
code
The FMI is dened by SAE J1939. If not
translated into text, see the SAE standard
or contact an authorized MasterCraft dealer
for the denition of the FMI number.
• Description Field—Most common
SPNs and FMIs have text for the descrip-
tion stored in the display. If there is no text,
then the SPN and FMI must be dened by
referring to the SAE J1939 standard or by
contacting an authorized MasterCraft dealer.
NOTE: This eld is only used with cer-
tain engine models.
• Corrective Action—Suggested action
for correction.
Get Faults
Touching [GET FAULTS] queries the
engine’s ECU for feedback on diagnostic
codes that have been activated and stored
in the ECU for service needs.
Factory Settings
This screen allows the dealer to indicate
the following:
• Boat model
• Center (attitude adjustment) tab
Gauges & Video Screens • 2014 MasterCraft Owners Manual Page 3-29
G A U G E S & V I D E O S C R E E N S
