CombiMaster 120V Series –
User and Installation Manual

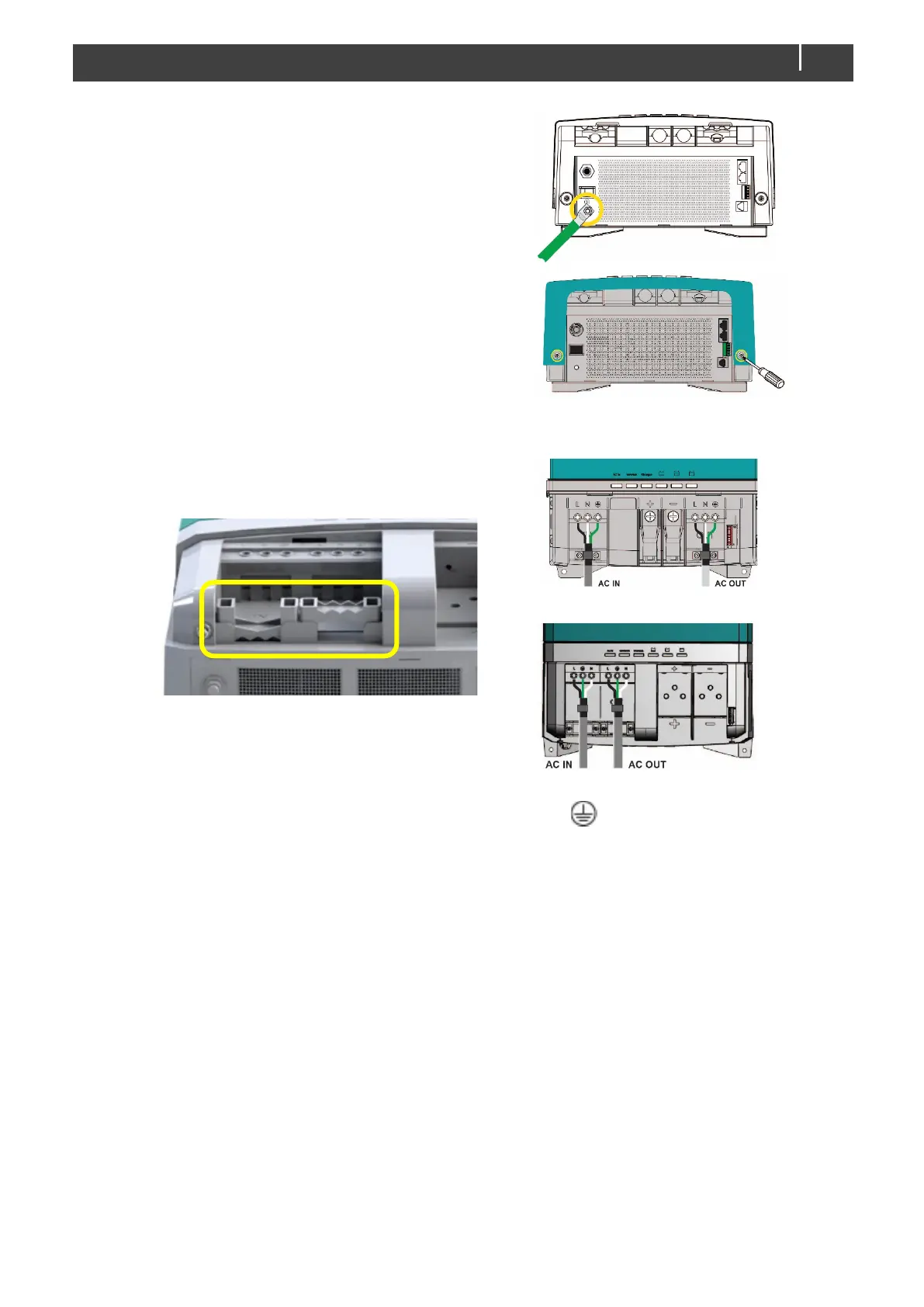

Step 5. Connect the 5/16" grounding lug to the central
grounding point.
Step 6. Open the connection compartment by loosening
the two screws at the bottom and then lifting the
front cover plate.
Step 7. Connect the AC wiring to the screw terminals.
Fasten the cables with a strain relief.
For larger cables, rotate the strain relief*:
* Available on models 3500W, 4500W, 5000W.
Models 1500W, 2000W, 3000W:
Models 3500W, 4500W, 5000W:
Pay attention to the positions of the N
and terminals, to avoid wrong
connections.
