5.6 OVERVIEW CONNECTION COMPARTMENT
22 EN / Mass Combi 12/1200-60 & 24/1200-35 / EN

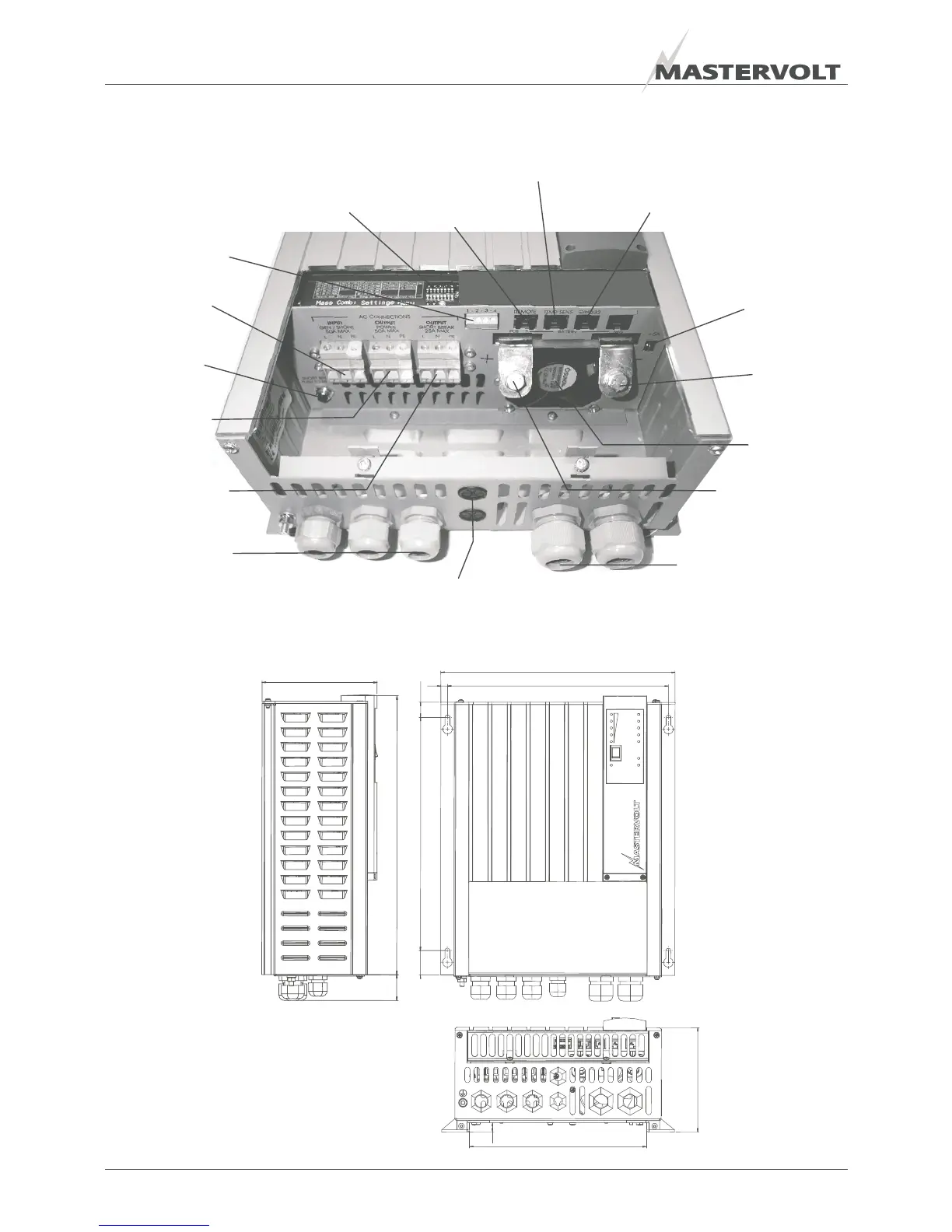

Figure 18: Dimensions in mm [inch]
of the Mass Combi 12/1200-60 and
24/1200-35
Figure 17: Overview connection compartment Mass Combi 12/1200-60 and 24/1200-35
Connector for
temperature
sensor
Remote
connection
(ICC panel)
DIP-switches
Thermal fuse
Negative
battery
terminal
AC input
AC output
POWER
AC output
SHORT BREAK
Positive battery
terminal
Cooling fan
Second 5A
charger
output
QRS232
connector
Alarm
contacts
Cable glands
for AC wiring
Cable glands for
main DC wiring
Grommets for wiring of remote panels
318 [12.5]
300 [11.8]
242 [9.5]
316.5 [12.5]
33.5
[1.3]
20.5 [0.8]
143 [5.6]
13
[0.5]
156 [6.1]
35
[1.4]
378.5 [14.9]
