INSTALLATION
5.7 MOUNTING OF THE CABINET
M6 bolts can be used for the mounting of the cabinet.
Take the following steps to mount the cabinet:
1 Determine the four mounting spots on the basis of the
outline drawings (figure 19)
2 Screw the topmost bolts somewhat into the wall.
3 Hang the cabinet with its key holes over the two bolts
and screw these bolts finger tight, so that some
shifting is still possible.
4 Place the two lowermost bolts.
5 Fasten all bolts securely.
5.8 CONNECTION
WARNING
Let installation work be done by a licensed
electrician. Before beginning with the
connection of the wiring, make the AC
distribution as well as the DC distribution
voltage free. Move the main switch (see figure
14) to the “Off”-position.
CAUTION!
Short circuiting or reversing polarity may lead
to serious damage to the batteries, the Mass
Combi, the wiring and/or the terminal
connections. Fuses between the batteries and
the Mass Combi can not prevent damage
caused by reversed polarity. The damage as
a result of reverse polarity is not covered by
the warranty.
10cm
10cm
10cm
CAUTION!
Too-thin cables and/or loose connections can
cause dangerous overheating of the cables
and/or terminals. Therefore tighten all
connections well, in order to limit transition
resistance as far as possible. Use cables of
the correct size

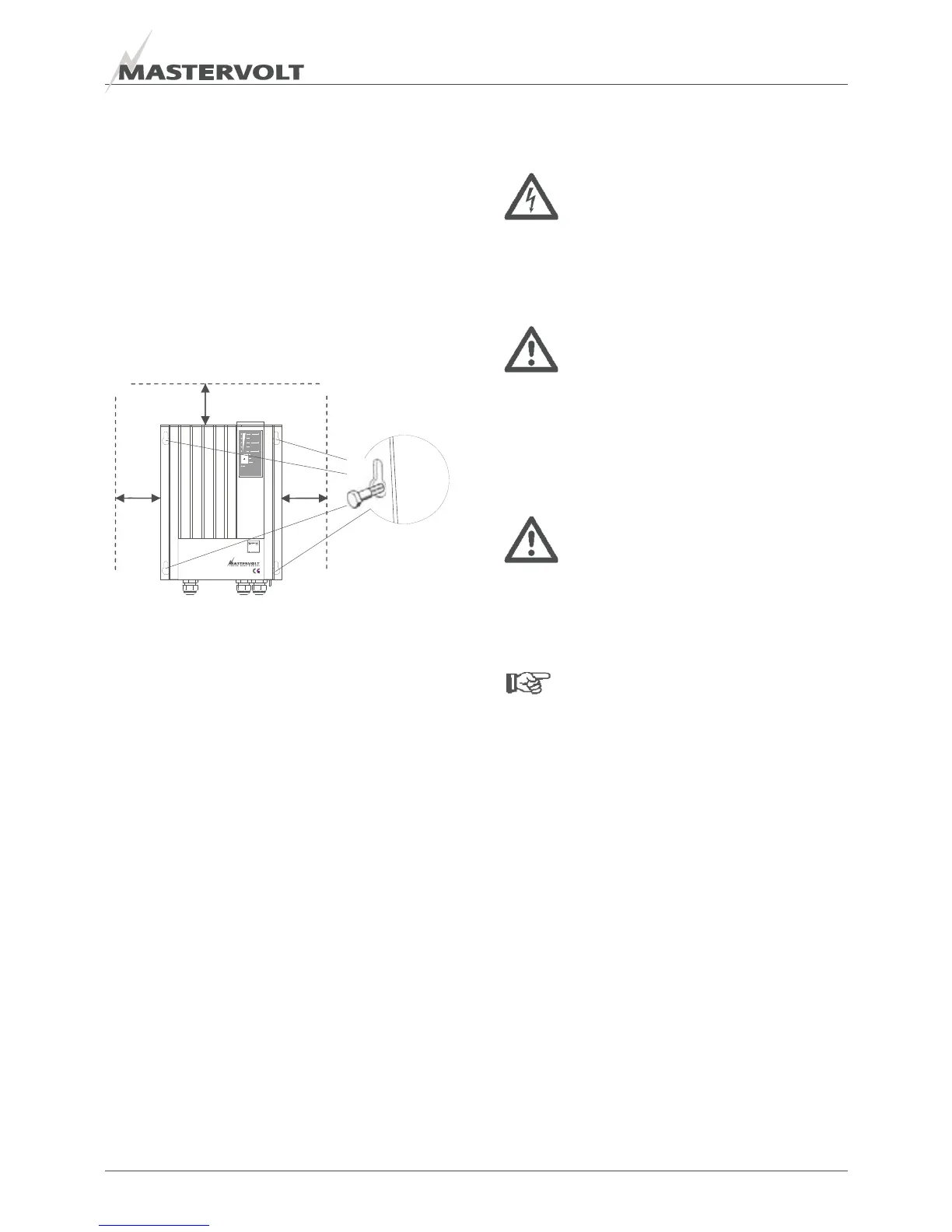

Figure 19: mounting of the cabinet
NOTE!
Feed the cables through the cable glands of
the cabinet before you fix the cable lugs to the
wire ends.
EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007 23
