2021 Matica Technologies Group. All rights reserved
26

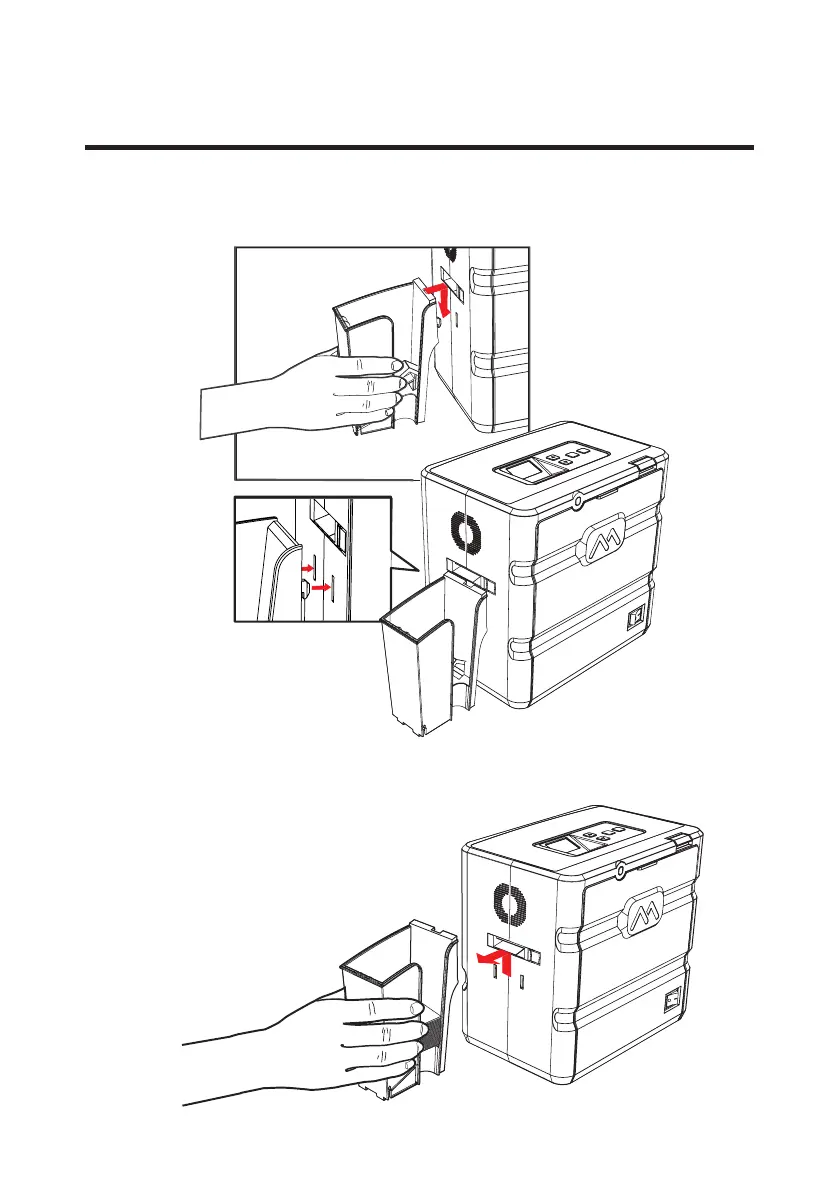

Hold the side of Card Stacker and pull it
up to remove as shown in the image.
-Remove Cards after Taking Out Card Stacker
Load/Unload Card Stacker to Laminator
Insert the hook on the Card Stacker and push it down in the side
of the laminator. (Max. 150 cards can be loaded at once.)
-Load Card Stacker to Laminator
